NEM 0205.0 – 2 Way Normally Closed Pressure Compensator
Roll over image to zoom in
2 Way Normally Closed Pressure Compensator, NEM model 0205.0 — Cartridge SAE 16. Max working pressure 350 bar.
NEM-0205.0 overview
2 Way Normally Closed Pressure Compensator, NEM model 0205.0 — Cartridge SAE 16. Max working pressure 350 bar.
MultiFlow is an authorized distributor of NEM Hydraulics products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| Type | 2 Way Normally Closed Pressure Compensator |
|---|---|
| Mounting | Cartridge SAE 16 |
| Max Flow | 200 l/min |
| Max working pressure | 350 bar |
| Seals | NBR and PTFE |
| Cartridge tightening torque | 75 Nm |
| Weight | 0,3 Kg |
| Cavity | C351000 page 224 |
| Body | 172512 page 203 |

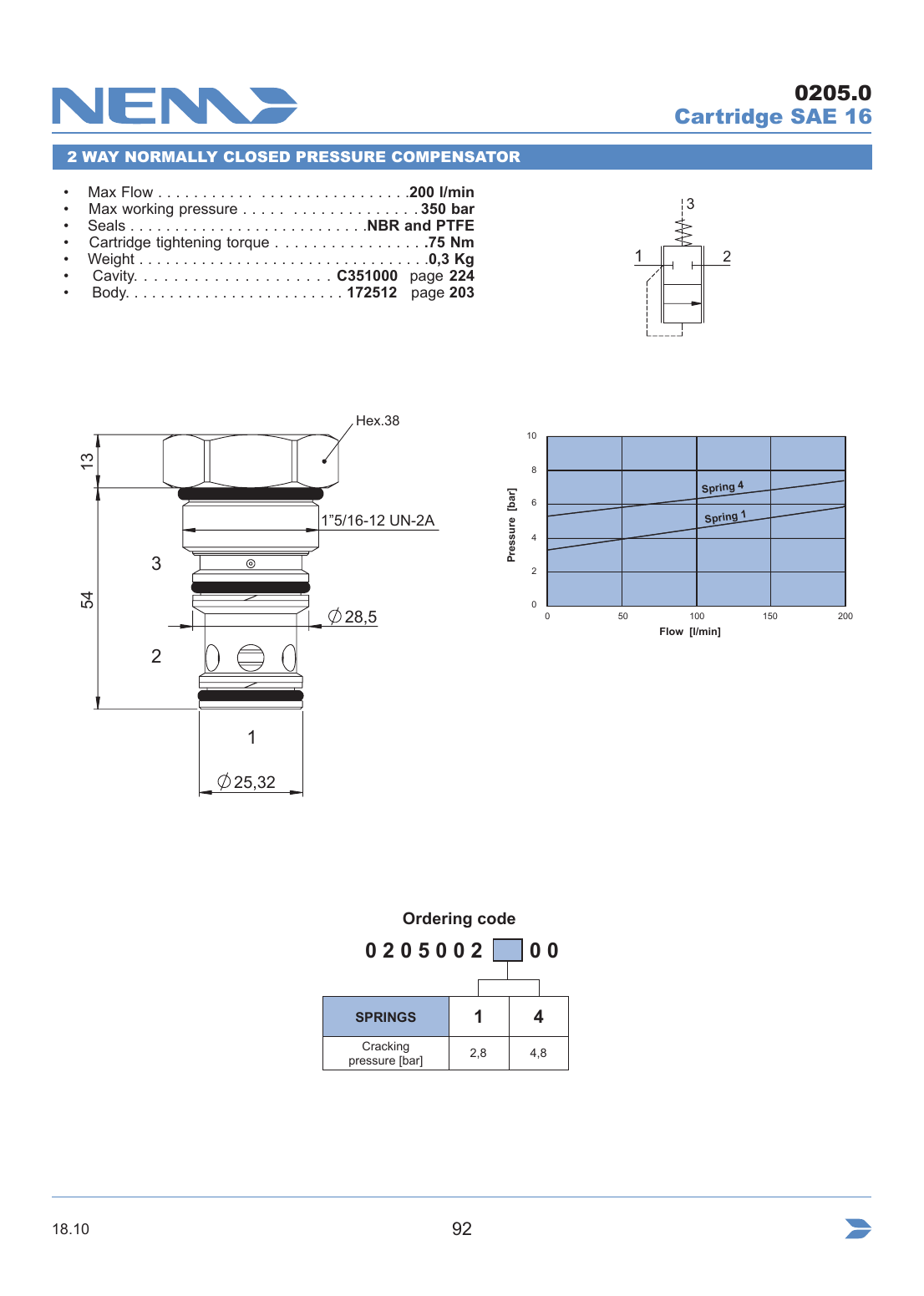

Downloads
Manufacturer reference: https://nem-hydraulics.com/dist/catalogs/catalog_cartridgeValves.pdf
