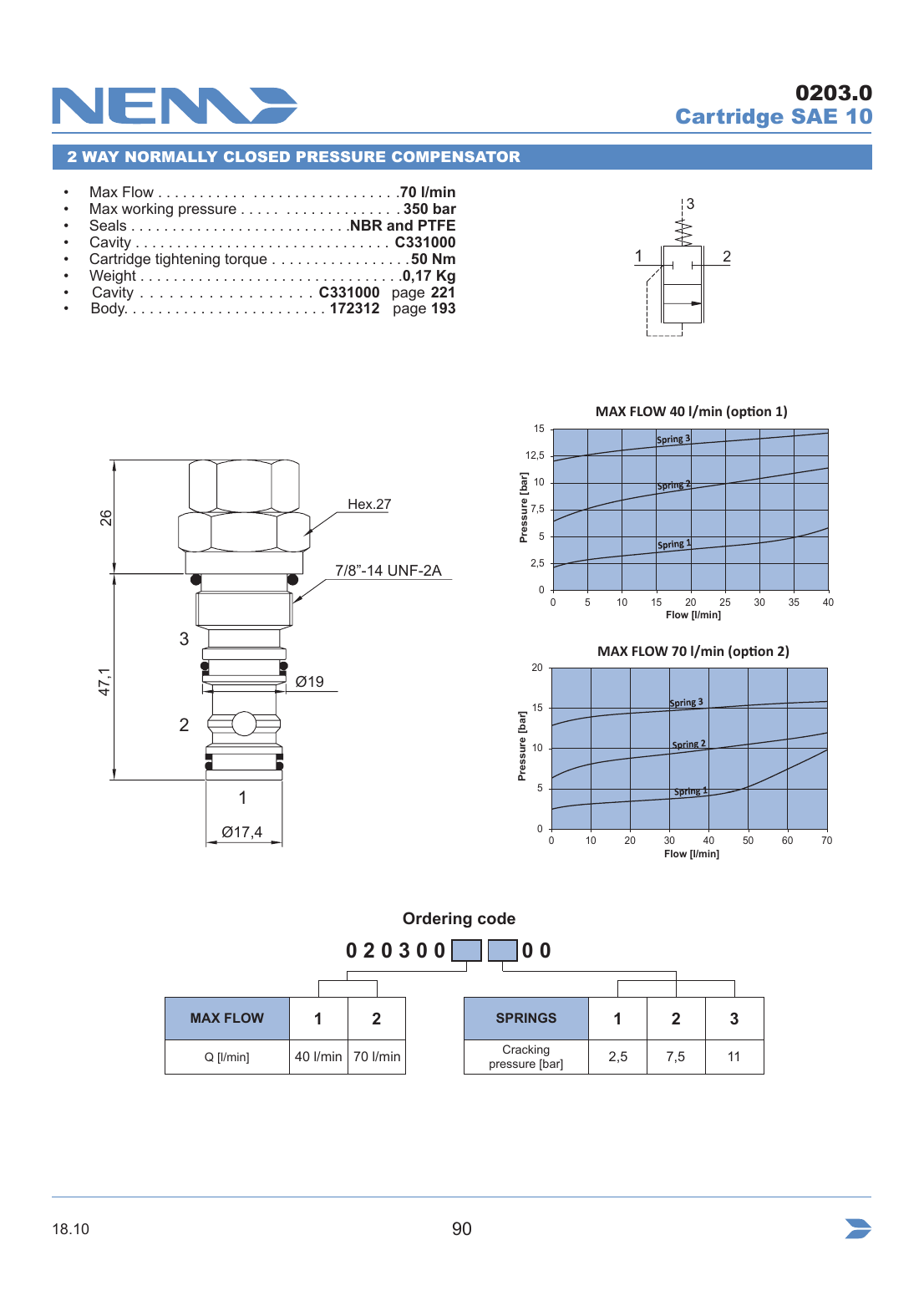

NEM 0203.0 – 2 Way Normally Closed Pressure Compensator
Roll over image to zoom in
2 Way Normally Closed Pressure Compensator, NEM model 0203.0 — Cartridge SAE 10. Max working pressure 350 bar.
NEM-0203.0 overview
2 Way Normally Closed Pressure Compensator, NEM model 0203.0 — Cartridge SAE 10. Max working pressure 350 bar.
MultiFlow is an authorized distributor of NEM Hydraulics products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| Type | 2 Way Normally Closed Pressure Compensator |
|---|---|
| Mounting | Cartridge SAE 10 |
| Max Flow | 70 l/min |
| Max working pressure | 350 bar |
| Seals | NBR and PTFE |
| Cavity | C331000 page 221 |
| Cartridge tightening torque | 50 Nm |
| Weight | 0,17 Kg |
| Body | 172312 page 193 |
Downloads
Manufacturer reference: https://nem-hydraulics.com/dist/catalogs/catalog_cartridgeValves.pdf
