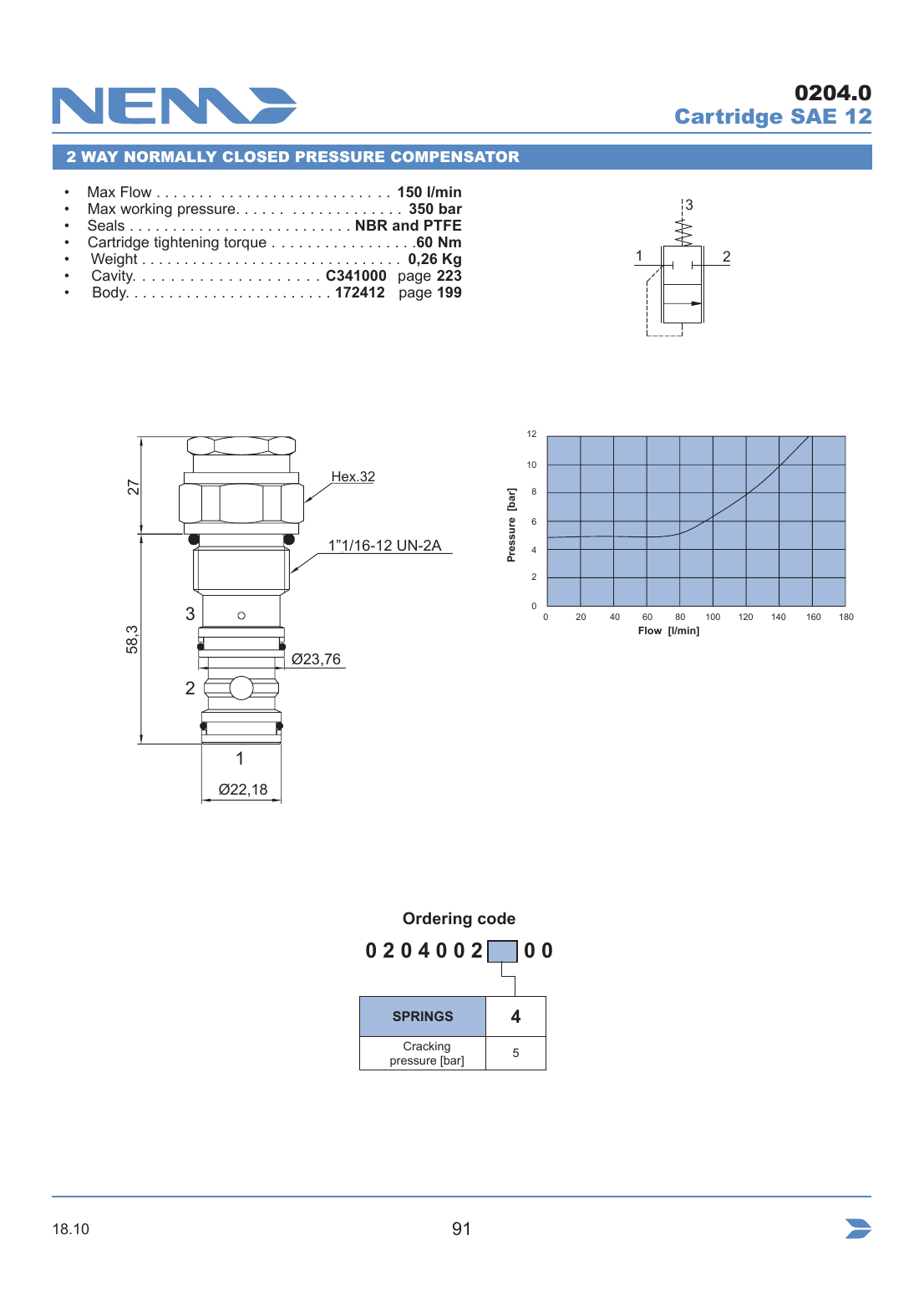

NEM 0204.0 – 2 Way Normally Closed Pressure Compensator
Roll over image to zoom in
2 Way Normally Closed Pressure Compensator, NEM model 0204.0 — Cartridge SAE 12. Max working pressure 350 bar.
NEM-0204.0 overview
2 Way Normally Closed Pressure Compensator, NEM model 0204.0 — Cartridge SAE 12. Max working pressure 350 bar.
MultiFlow is an authorized distributor of NEM Hydraulics products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| Type | 2 Way Normally Closed Pressure Compensator |
|---|---|
| Mounting | Cartridge SAE 12 |
| Max Flow | 150 l/min |
| Max working pressure | 350 bar |
| Seals | NBR and PTFE |
| Cartridge tightening torque | 60 Nm |
| Weight | 0,26 Kg |
| Cavity | C341000 page 223 |
| Body | 172412 page 199 |
Downloads
Manufacturer reference: https://nem-hydraulics.com/dist/catalogs/catalog_cartridgeValves.pdf
