NEM 0825.0 – Flow Divider And Combiner Valve
Roll over image to zoom in

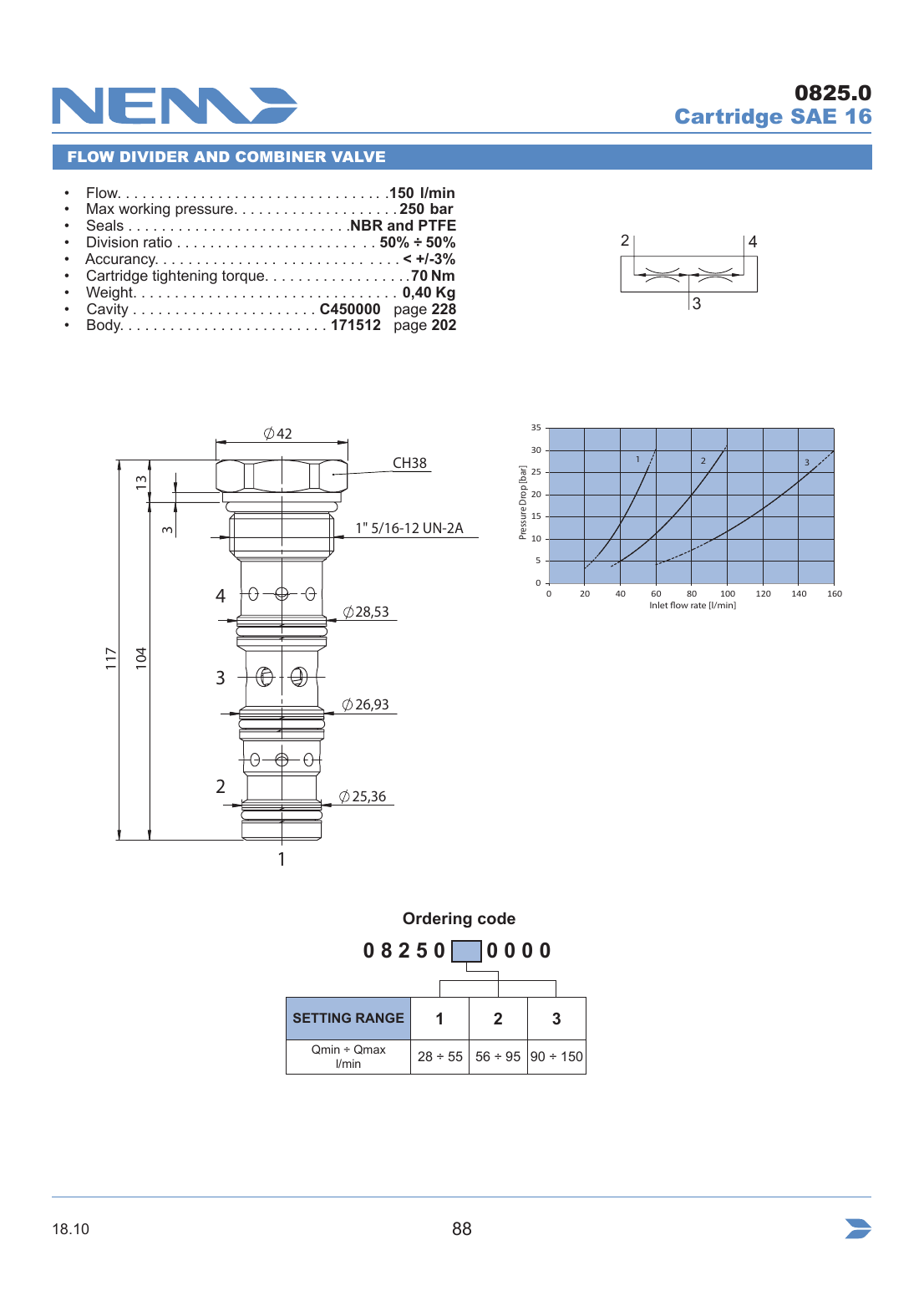

Flow Divider And Combiner Valve, NEM model 0825.0 — Cartridge SAE 16. Flow up to 150 l/min. Max working pressure 250 bar.
NEM-0825.0 overview
Flow Divider And Combiner Valve, NEM model 0825.0 — Cartridge SAE 16. Flow up to 150 l/min. Max working pressure 250 bar.
MultiFlow is an authorized distributor of NEM Hydraulics products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| Type | Flow Divider And Combiner Valve |
|---|---|
| Mounting | Cartridge SAE 16 |
| Flow | 150 l/min |
| Max working pressure | 250 bar |
| Seals | NBR and PTFE |
| Division ratio | 50% ÷ 50% |
| Accurancy | < +/-3% |
| Cartridge tightening torque | 70 Nm |
| Weight | 0,40 Kg |
| Cavity | C450000 page 228 |
| Body | 171512 page 202 |
Downloads
Manufacturer reference: https://nem-hydraulics.com/dist/catalogs/catalog_cartridgeValves.pdf
