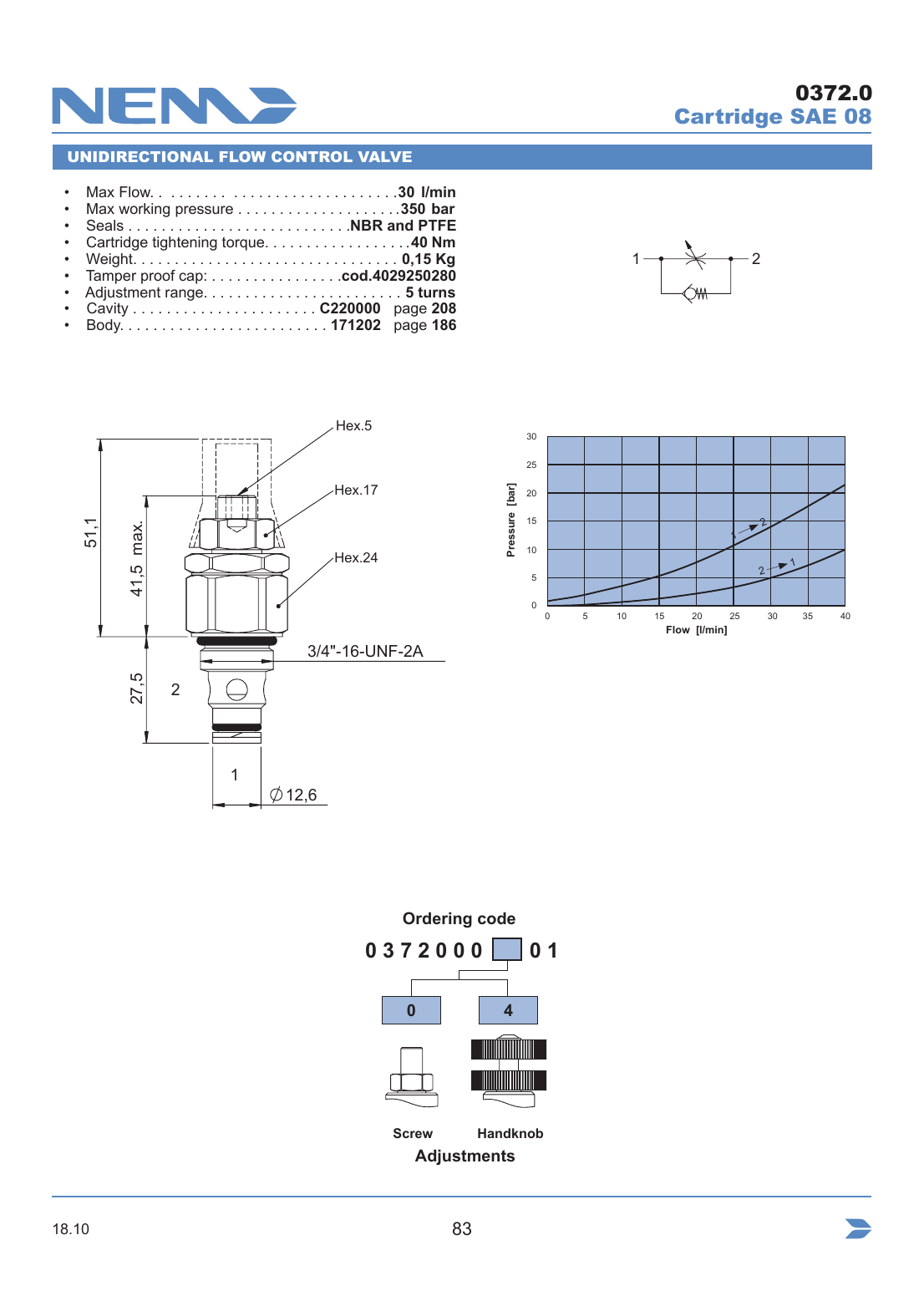

NEM 0372.0 – Unidirectional Flow Control Valve
Roll over image to zoom in
Unidirectional Flow Control Valve, NEM model 0372.0 — Cartridge SAE 08. Max working pressure 350 bar.
NEM-0372.0 overview
Unidirectional Flow Control Valve, NEM model 0372.0 — Cartridge SAE 08. Max working pressure 350 bar.
MultiFlow is an authorized distributor of NEM Hydraulics products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| Type | Unidirectional Flow Control Valve |
|---|---|
| Mounting | Cartridge SAE 08 |
| Max Flow | 30 l/min |
| Max working pressure | 350 bar |
| Seals | NBR and PTFE |
| Cartridge tightening torque | 40 Nm |
| Weight | 0,15 Kg |
| Tamper proof cap: | cod.4029250280 |
| Adjustment range | 5 turns |
| Cavity | C220000 page 208 |
| Body | 171202 page 186 |
Downloads
Manufacturer reference: https://nem-hydraulics.com/dist/catalogs/catalog_cartridgeValves.pdf
