VTP – Sun Hydraulics Parallel cavities Line mount manifold
Part number: VTP · VTP/10 · VTP/11 · VTP/1A · VTP/1B · VTP/M · VTP/S · VTP/S3 · VTP/S4 · VTP/S5 · VTP/T · VTP/T3 · VTP/T4 · VTP/T5
Parallel cavities Line mount manifold, cavity T-34A, 1 1/2″ Code 62 ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
VTP overview
VTP (VTP/10, VTP/11, VTP/1A, VTP/1B) is a Sun Hydraulics Sun Hydraulics Parallel cavities Line mount manifold and installed in cavity T-34A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| VTP | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| VTP/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| VTP/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| VTP/1A | Aluminium, Metric, black anodized, Buna-N seals6061-T651 Aluminum, Metric, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| VTP/1B | Aluminium, Metric, clear anodized, Buna-N seals6061-T651 Aluminum, Metric, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| VTP/M | Aluminium, Metric, Buna-N seals6061-T651 Aluminum, Metric, Buna-N |
| VTP/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| VTP/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| VTP/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| VTP/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
| VTP/T | Ductile iron, Metric, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Dewatering Oil |
| VTP/T3 | Ductile iron, Metric, clear zinc plated, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Trivalent Clear Zinc with Top Sealer |
| VTP/T4 | Ductile iron, Metric, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Chem. Black |
| VTP/T5 | Ductile iron, Metric, electroless nickel plated, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Interface | None |
| Body Features | Parallel cavities |
| Mounting Hole Thread | M10x1.5 - 6H (metric models) (M10x1.5 - 6H (metric models)) |
| Mounting Hole Depth | .62 in. (15,7 mm) |
| Mounting Hole Quantity | 4 |
| Open Cavities | 2 |
| Cavity | T-34A |
| Port Size | 1 1/2" Code 62 |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read VTP
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so VTP, VTP/10, VTP/11, VTP/1A, VTP/1B, VTP/M, VTP/S, VTP/S3, VTP/S4, VTP/S5, VTP/T, VTP/T3, VTP/T4, VTP/T5 are the same part.
| Model | VTP — Sun Hydraulics Parallel cavities Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. VTP/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /1A — 6061-T651 Aluminum, Metric, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /1B — 6061-T651 Aluminum, Metric, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /M — 6061-T651 Aluminum, Metric, Buna-N
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
- /T — 65-45-12 Ductile Iron, Metric, Buna-N, Dewatering Oil
- /T3 — 65-45-12 Ductile Iron, Metric, Buna-N, Trivalent Clear Zinc with Top Sealer
- /T4 — 65-45-12 Ductile Iron, Metric, Buna-N, Chem. Black
- /T5 — 65-45-12 Ductile Iron, Metric, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-34A (14)
- DSIHXHN Sun Hydraulics Low side, 3-position, hot oil shuttle valveDSIHXHN-VTP — request assembly
- DSIOXEN Sun Hydraulics Spring offset, 2-position, high side shuttle valveDSIOXEN-VTP — request assembly
- DSISXGN Sun Hydraulics High side, 3-position, shuttle valveDSISXGN-VTP — request assembly
- DSIXXEN Sun Hydraulics 3-way, 2-position, vent-to-shift diverter valve, normally closedDSIXXEN-VTP — request assembly
- DSIYXEN Sun Hydraulics 3-way, 2-position, vent-to-shift diverter valve, normally openDSIYXEN-VTP — request assembly
- FSFAXAN Sun Hydraulics Closed center, flow divider-combiner valveFSFAXAN-VTP — request assembly
- FSFCXAN Sun Hydraulics High accuracy flow divider valveFSFCXAN-VTP — request assembly
- FSFDXAN Sun Hydraulics Flow divider valveFSFDXAN-VTP — request assembly
- FSFGXAN Sun Hydraulics High accuracy, closed center, flow divider-combiner valveFSFGXAN-VTP — request assembly
- FSFHXAN Sun Hydraulics High capacity, closed center, flow divider-combiner valveFSFHXAN-VTP — request assembly
- FSFRXAN Sun Hydraulics High accuracy synchronizing, flow divider-combiner valveFSFRXAN-VTP — request assembly
- FSFSXAN Sun Hydraulics Synchronizing, flow divider-combiner valveFSFSXAN-VTP — request assembly
Ports
Modifiers Ports VTP, /10, /11, /1A, /1B, /M Ports 2 & 4: 1 1/2" Code 62; Port 3: 2" Code 62;

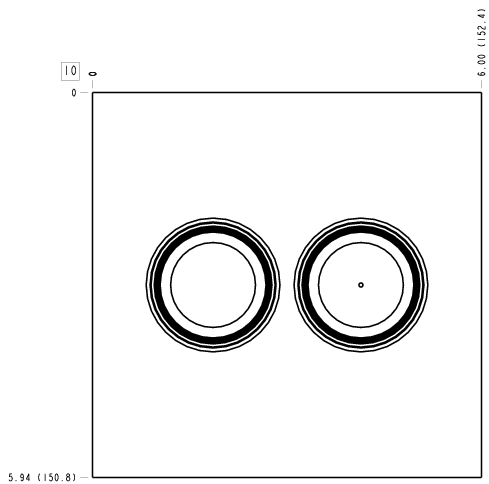

Drawings, symbol & performance curves
Downloads
CAD files (from Sun Hydraulics)
Frequently asked questions
Is VTP the same as VTP/10?
Yes. Sun Hydraulics writes this part number as VTP. It is the model VTP followed by the configuration code; hyphens, slashes and spaces are only dividers, so VTP, VTP/10, VTP/11, VTP/1A, VTP/1B, VTP/M, VTP/S, VTP/S3, VTP/S4, VTP/S5, VTP/T, VTP/T3, VTP/T4, VTP/T5 all refer to the same product.
Do you supply VTP in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including VTP, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
