DSIO-XEN – Sun Hydraulics Spring offset, 2-position, high side shuttle valve

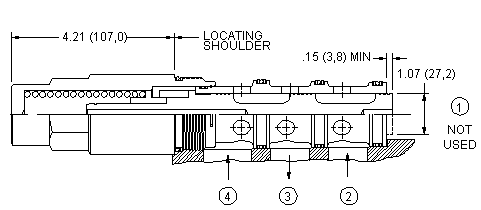

DSIO-XEN Sun Hydraulics Shuttle Valve – installation dimensions drawing, cavity T-34A
DSIO-XEN Sun Hydraulics Shuttle Valve – hydraulic schematic symbol
DSIO-XEN Sun Hydraulics Shuttle Valve – performance curve (pressure drop vs flow)
DSIOXEN Sun Hydraulics Shuttle Valve – 2D outline drawing
Roll over image to zoom in
Click to open expanded view

Part number: DSIOXEN · DSIO-XEN · DSIO XEN

Brand Sun HydraulicsType ShuttleCapacity 120 gpm (480 L/min.)Cavity T-34A

Spring offset, 2-position, high side shuttle valve. Cavity T-34A, capacity 120 gpm (480 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.

Clear
SKU: DSIO Category: Brand:

DSIO-XEN overview

DSIOXEN (DSIO-XEN, DSIO XEN) is a Sun Hydraulics Sun Hydraulics Spring offset, 2-position, high side shuttle valve, rated 120 gpm (480 L/min.) and installed in cavity T-34A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.

Ordering codes

Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.

DSIOXEN Buna-N sealsBuna-N
DSIOXEV Viton sealsViton

Specifications

CavityT-34A
Series4
Capacity120 gpm (480 L/min.)
Maximum Operating Pressure5000 psi (350 bar)
Valve Hex Size1 5/8 in. (41,3 mm)
Valve Installation Torque350 - 375 lbf ft (474 - 508 Nm)
Model Weight2.90 lb (1,30 kg)
Seal kit - CartridgeViton: 990034006

How to read DSIOXEN

Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so DSIOXEN, DSIO-XEN, DSIO XEN are the same part.

ModelDSIO — Sun Hydraulics Spring offset, 2-position, high side shuttle valve
ControlX — Not Adjustable
Minimum Control PressureE — 75 psi (5 bar)
Seal MaterialN — Buna-N
Material / coatingAdd /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish.
Control options
  • X — Not Adjustable
Minimum Control Pressure options
  • C — 30 psi (2 bar)
  • E — 75 psi (5 bar)
Seal Material options
  • N — Buna-N
  • V — Viton

Manifold & standard assemblies

Sun manifolds for cavity T-34A (20)

View all 20 →

Technical features

  • Although this valve goes into a 4-port cavity, the nose (port 1) is not used.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Drawings, symbol & performance curves

DSIO-XEN Sun Hydraulics Shuttle Valve – hydraulic schematic symbol
hydraulic schematic symbol
DSIO-XEN Sun Hydraulics Shuttle Valve – performance curve (pressure drop vs flow)
performance curve (pressure drop vs flow)

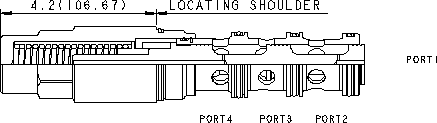

DSIOXEN Sun Hydraulics Shuttle Valve – 2D outline drawing
2D outline drawing

Downloads

Datasheet

Technical reference sheets

CAD files

Frequently asked questions

Is DSIOXEN the same as DSIO-XEN?

Yes. Sun Hydraulics writes this part number as DSIOXEN. It is the model DSIO followed by the configuration code; hyphens, slashes and spaces are only dividers, so DSIOXEN, DSIO-XEN, DSIO XEN all refer to the same product.

Do you supply DSIOXEN in the UAE, GCC and India?

Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including DSIOXEN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.

Can I get the datasheet and CAD files?

Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.

Direct acting or pilot operated - what do I use?

Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.

How big is a drop of hydraulic oil?

There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

What parts of the Sun cartridge valve are field serviceable?
Only external seals are serviceable.  Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.

Manufacturer reference: https://www.sunhydraulics.com/model/DSIO
