DSIS-XGN – Sun Hydraulics High side, 3-position, shuttle valve
Part number: DSISXGN · DSIS-XGN · DSIS XGN
High side, 3-position, shuttle valve. Cavity T-34A, capacity 120 gpm (480 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
DSIS-XGN overview
DSISXGN (DSIS-XGN, DSIS XGN) is a Sun Hydraulics Sun Hydraulics High side, 3-position, shuttle valve, rated 120 gpm (480 L/min.) and installed in cavity T-34A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| DSISXGN | Buna-N sealsBuna-N |
|---|---|
| DSISXGV | Viton sealsViton |
Specifications
| Cavity | T-34A |
|---|---|
| Series | 4 |
| Capacity | 120 gpm (480 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 in³/min.@1000 psi (80 cc/min.@70 bar) |
| Valve Hex Size | 1 5/8 in. (41,3 mm) |
| Valve Installation Torque | 350 - 375 lbf ft (474 - 508 Nm) |
| Model Weight | 2.90 lb (1,30 kg) |
| Seal kit - Cartridge | Viton: 990034006 |
How to read DSISXGN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so DSISXGN, DSIS-XGN, DSIS XGN are the same part.
| Model | DSIS — Sun Hydraulics High side, 3-position, shuttle valve |
|---|---|
| Control | X — Not Adjustable |
| Shifting Pressure | G — 150 psi (10,5 bar) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- X — Not Adjustable
Shifting Pressure options
- C — 30 psi (2 bar)
- E — 75 psi (5 bar)
- F — 100 psi (7 bar)
- G — 150 psi (10,5 bar)
Seal Material options
- N — Buna-N
- V — Viton
Manifold & standard assemblies
Sun manifolds for cavity T-34A (20)
- QM4 Sun Hydraulics Ninety degree Line mount manifoldDSISXGN-QM4 — request assembly
- QM5 Sun Hydraulics Ninety degree Line mount manifoldDSISXGN-QM5 — request assembly
- QM6 Sun Hydraulics Ninety degree Line mount manifoldDSISXGN-QM6 — request assembly
- QME Sun Hydraulics Ninety degree Line mount manifoldDSISXGN-QME — request assembly
- QMF Sun Hydraulics Ninety degree Line mount manifoldDSISXGN-QMF — request assembly
- QMM Sun Hydraulics Ninety degree Line mount manifoldDSISXGN-QMM — request assembly
- QMN Sun Hydraulics Ninety degree Line mount manifoldDSISXGN-QMN — request assembly
- QMP Sun Hydraulics Ninety degree Line mount manifoldDSISXGN-QMP — request assembly
- QMQ Sun Hydraulics Ninety degree Line mount manifoldDSISXGN-QMQ — request assembly
- QMR Sun Hydraulics Ninety degree Line mount manifoldDSISXGN-QMR — request assembly
- QMX Sun Hydraulics Ninety degree Line mount manifoldDSISXGN-QMX — request assembly
- QMY Sun Hydraulics Ninety degree Line mount manifoldDSISXGN-QMY — request assembly
Technical features
- This valve provides overrunning load control in regeneration applications where the load tends to extend the cylinder. Because there is spool leakage, it does not prevent drift.
- Hardened spool/sleeve construction provides excellent wear characteristics and minimizes cross leakage.
- Although this valve goes into a 4-port cavity, the nose (port 1) is not used.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

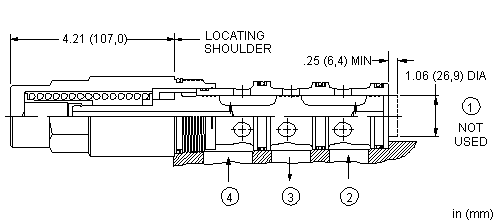

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
- 999-901-334 (PDF 344 KB)
- FloatingStyleScrewInCartridge2 (PDF 1 MB)
- TT_US_Cavity-New (PDF 522 KB)
- TT_US_Shuttles-New (PDF 500 KB)
CAD files
Frequently asked questions
Is DSISXGN the same as DSIS-XGN?
Yes. Sun Hydraulics writes this part number as DSISXGN. It is the model DSIS followed by the configuration code; hyphens, slashes and spaces are only dividers, so DSISXGN, DSIS-XGN, DSIS XGN all refer to the same product.
Do you supply DSISXGN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including DSISXGN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
What parts of the Sun cartridge valve are field serviceable?
Manufacturer reference: https://www.sunhydraulics.com/model/DSIS
