U3Q – Sun Hydraulics Flange mount through port Line mount manifold
Part number: U3Q · U3Q/10 · U3Q/11 · U3Q/15 · U3Q/16 · U3Q/1A · U3Q/1B · U3Q/1F · U3Q/1G · U3Q/M · U3Q/V · U3Q/Z · U3Q/S · U3Q/S3 · U3Q/S4 · U3Q/S5 · U3Q/T · U3Q/T3 · U3Q/T4 · U3Q/T5 · U3Q/W · U3Q/W3 · U3Q/W4 · U3Q/W5 · U3Q/Y · U3Q/Y3 · U3Q/Y4 · U3Q/Y5
Flange mount through port Line mount manifold, cavity T-16A, 1″ BSPP ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
U3Q overview
U3Q (U3Q/10, U3Q/11, U3Q/15, U3Q/16) is a Sun Hydraulics Sun Hydraulics Flange mount through port Line mount manifold and installed in cavity T-16A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| U3Q | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| U3Q/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| U3Q/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| U3Q/15 | Black anodized aluminium, Viton seals6061-T651 Aluminum, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| U3Q/16 | Clear anodized aluminium, Viton seals6061-T651 Aluminum, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| U3Q/1A | Aluminium, Metric, black anodized, Buna-N seals6061-T651 Aluminum, Metric, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| U3Q/1B | Aluminium, Metric, clear anodized, Buna-N seals6061-T651 Aluminum, Metric, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| U3Q/1F | Aluminium, Metric, black anodized, Viton seals6061-T651 Aluminum, Metric, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| U3Q/1G | Aluminium, Metric, clear anodized, Viton seals6061-T651 Aluminum, Metric, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| U3Q/M | Aluminium, Metric, Buna-N seals6061-T651 Aluminum, Metric, Buna-N |
| U3Q/V | Aluminium, Viton seals6061-T651 Aluminum, Viton |
| U3Q/Z | Aluminium, Metric, Viton seals6061-T651 Aluminum, Metric, Viton |
| U3Q/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| U3Q/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| U3Q/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| U3Q/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
| U3Q/T | Ductile iron, Metric, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Dewatering Oil |
| U3Q/T3 | Ductile iron, Metric, clear zinc plated, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Trivalent Clear Zinc with Top Sealer |
| U3Q/T4 | Ductile iron, Metric, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Chem. Black |
| U3Q/T5 | Ductile iron, Metric, electroless nickel plated, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Electroless Nickel |
| U3Q/W | Ductile iron, Metric, dewatering-oil finish, Viton seals65-45-12 Ductile Iron, Metric, Viton, Dewatering Oil |
| U3Q/W3 | Ductile iron, Metric, clear zinc plated, Viton seals65-45-12 Ductile Iron, Metric, Viton, Trivalent Clear Zinc with Top Sealer |
| U3Q/W4 | Ductile iron, Metric, black oxide finish, Viton seals65-45-12 Ductile Iron, Metric, Viton, Chem. Black |
| U3Q/W5 | Ductile iron, Metric, electroless nickel plated, Viton seals65-45-12 Ductile Iron, Metric, Viton, Electroless Nickel |
| U3Q/Y | Ductile iron, dewatering-oil finish, Viton seals65-45-12 Ductile Iron, Viton, Dewatering Oil |
| U3Q/Y3 | Clear zinc plated ductile iron, Viton seals65-45-12 Ductile Iron, Viton, Trivalent Clear Zinc with Top Sealer |
| U3Q/Y4 | Ductile iron, black oxide finish, Viton seals65-45-12 Ductile Iron, Viton, Chem. Black |
| U3Q/Y5 | Electroless nickel plated ductile iron, Viton seals65-45-12 Ductile Iron, Viton, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Interface | 1.25 SAE C61 |
| Body Features | Flange mount through port |
| Mounting Hole Diameter | .47 in. (12 mm) |
| Mounting Hole C'bore Diameter | .69 in. (17,5 mm) |
| Mounting Hole C'bore Depth | .66 in. |
| Open Cavities | 1 |
| Cavity | T-16A |
| Port Size | 1" BSPP |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read U3Q
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so U3Q, U3Q/10, U3Q/11, U3Q/15, U3Q/16, U3Q/1A, U3Q/1B, U3Q/1F, U3Q/1G, U3Q/M, U3Q/V, U3Q/Z, U3Q/S, U3Q/S3, U3Q/S4, U3Q/S5, U3Q/T, U3Q/T3, U3Q/T4, U3Q/T5, U3Q/W, U3Q/W3, U3Q/W4, U3Q/W5, U3Q/Y, U3Q/Y3, U3Q/Y4, U3Q/Y5 are the same part.
| Model | U3Q — Sun Hydraulics Flange mount through port Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. U3Q/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /15 — 6061-T651 Aluminum, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /16 — 6061-T651 Aluminum, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /1A — 6061-T651 Aluminum, Metric, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /1B — 6061-T651 Aluminum, Metric, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /1F — 6061-T651 Aluminum, Metric, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /1G — 6061-T651 Aluminum, Metric, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /M — 6061-T651 Aluminum, Metric, Buna-N
- /V — 6061-T651 Aluminum, Viton
- /Z — 6061-T651 Aluminum, Metric, Viton
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
- /T — 65-45-12 Ductile Iron, Metric, Buna-N, Dewatering Oil
- /T3 — 65-45-12 Ductile Iron, Metric, Buna-N, Trivalent Clear Zinc with Top Sealer
- /T4 — 65-45-12 Ductile Iron, Metric, Buna-N, Chem. Black
- /T5 — 65-45-12 Ductile Iron, Metric, Buna-N, Electroless Nickel
- /W — 65-45-12 Ductile Iron, Metric, Viton, Dewatering Oil
- /W3 — 65-45-12 Ductile Iron, Metric, Viton, Trivalent Clear Zinc with Top Sealer
- /W4 — 65-45-12 Ductile Iron, Metric, Viton, Chem. Black
- /W5 — 65-45-12 Ductile Iron, Metric, Viton, Electroless Nickel
- /Y — 65-45-12 Ductile Iron, Viton, Dewatering Oil
- /Y3 — 65-45-12 Ductile Iron, Viton, Trivalent Clear Zinc with Top Sealer
- /Y4 — 65-45-12 Ductile Iron, Viton, Chem. Black
- /Y5 — 65-45-12 Ductile Iron, Viton, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-16A (38)
- CNGCXCN Sun Hydraulics Fixed-orifice, non-pressure compensated, flow control valve with reverse flow checkCNGCXCN-U3Q — request assembly
- CNHCXCN Sun Hydraulics Free flow nose to side check valve with bypass orificeCNHCXCN-U3Q — request assembly
- CXGDXCN Sun Hydraulics Free flow side to nose check valveCXGDXCN-U3Q — request assembly
- CXHAXCN Sun Hydraulics Free flow nose to side check valveCXHAXCN-U3Q — request assembly
- CXHHZCN Sun Hydraulics Free flow nose to side check valve with position switchCXHHZCN-U3Q — request assembly
- DFEAXCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve – flow 1-2DFEAXCN-U3Q — request assembly
- DFEA8DN Sun Hydraulics 2-way, poppet directional valve with integral T-8A control cavity – control 1-2DFEA8DN-U3Q — request assembly
- DFEBXCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve – flow 2-1DFEBXCN-U3Q — request assembly
- DFEB8DN Sun Hydraulics 2-way, poppet directional valve with integral T-8A control cavity – control 2-1DFEB8DN-U3Q — request assembly
- DFEIXCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve – flow 1-2 (740 Series)DFEIXCN-U3Q — request assembly
- DFEJXCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve – flow 2-1 (740 Series)DFEJXCN-U3Q — request assembly
- EVECXXV Sun Hydraulics 2-port energy harvester valveEVECXXV-U3Q — request assembly
Ports
Modifiers Ports U3Q, /10, /11, /15, /16, /1A, /1B, /1F, /1G, /M, /S, /S3, /T, /T3, /V, /W, /W3, /Y, /Y3, /Z Port 1: 1" BSPP; Flange Port 1: 1 1/4" Code 61; Port 2: 1 1/4" BSPP; Gage Port (Plugged): 1/4" BSPP;

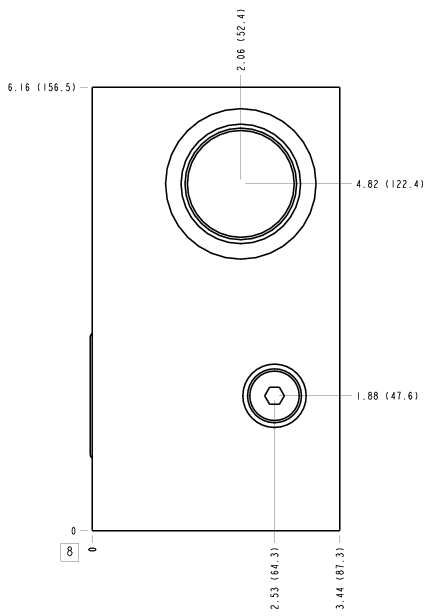

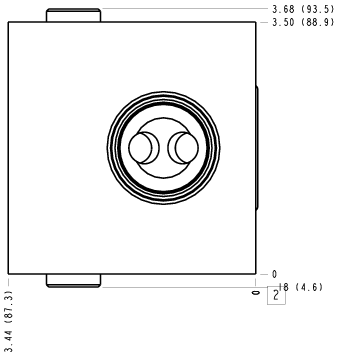

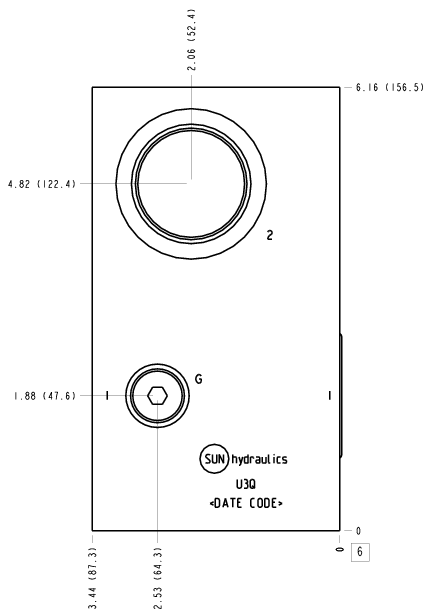

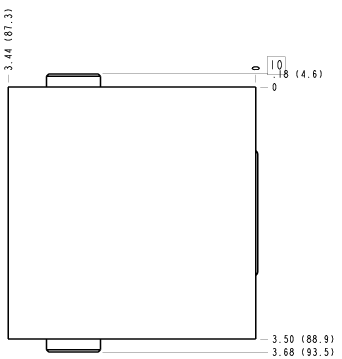

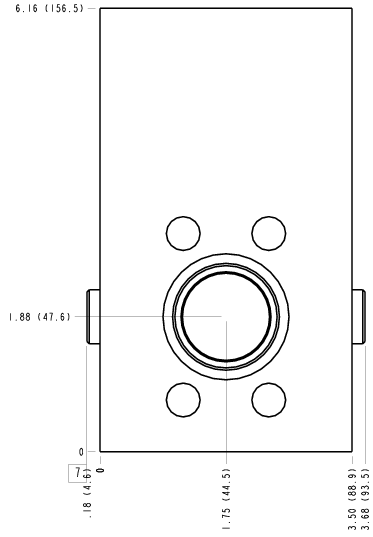

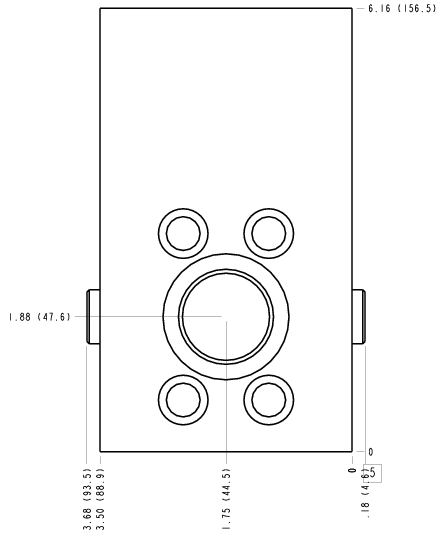

Drawings, symbol & performance curves
