DFEB8-DN – Sun Hydraulics 2-way, poppet directional valve with integral T-8A control cavity – control 2-1
Part number: DFEB8DN · DFEB8-DN · DFEB8 DN
2-way, poppet directional valve with integral T-8A control cavity – control 2-1. Cavity T-16A, capacity 60 gpm (240 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
DFEB8-DN overview
DFEB8DN (DFEB8-DN, DFEB8 DN) is a Sun Hydraulics Sun Hydraulics 2-way, poppet directional valve with integral T-8A control cavity - control 2-1, rated 60 gpm (240 L/min.) and installed in cavity T-16A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| DFEB8DN | Buna-N sealsBuna-N |
|---|---|
| DFEB8DV | Viton sealsViton |
| DFEB8DE | EPDM sealsEPDM |
Specifications
| Cavity | T-16A |
|---|---|
| Series | 3 |
| Capacity | 60 gpm (240 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi (0,7 cc/min.@350 bar) |
| Pilot Control Cavity | T-8A |
| Pilot Control Valve Installation Torque | 20 - 25 lbf ft (27 - 33 Nm) |
| Response Time - Typical | see pilot control ms |
| Valve Hex Size | 1 1/4 in. (31,8 mm) |
| Valve Installation Torque | 150 - 160 lbf ft (203 - 217 Nm) |
| Model Weight | 1.10 lb (0,50 kg) |
| Seal kit - Cartridge | Viton: 990016006 |
Compound cartridge (pilot and main stage) assembly information is provided for reference only. Cartridges must be ordered separately and assembled at point of use.
How to read DFEB8DN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so DFEB8DN, DFEB8-DN, DFEB8 DN are the same part.
| Model | DFEB8 — Sun Hydraulics 2-way, poppet directional valve with integral T-8A control cavity - control 2-1 |
|---|---|
| Cracking Pressure | D — 50 psi (3,5 bar) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Cracking Pressure options
- D — 50 psi (3,5 bar)
Seal Material options
- N — Buna-N
- V — Viton
- E — EPDM
Manifold & standard assemblies
Sun manifolds for cavity T-16A (161)
- CD4 Sun Hydraulics ISO 08: On A with reverse flow check Sandwich manifoldDFEB8DN-CD4 — request assembly
- CDC Sun Hydraulics ISO 08: A to T Sandwich manifoldDFEB8DN-CDC — request assembly
- CDD Sun Hydraulics ISO 08: B to T Sandwich manifoldDFEB8DN-CDD — request assembly
- CDO Sun Hydraulics ISO 08: P to T Sandwich manifoldDFEB8DN-CDO — request assembly
- CDV Sun Hydraulics ISO 08: T to A and B Sandwich manifoldDFEB8DN-CDV — request assembly
- CDW Sun Hydraulics ISO 08: A to B and B to A Sandwich manifoldDFEB8DN-CDW — request assembly
- CDZ Sun Hydraulics ISO 08: A and B to T Sandwich manifoldDFEB8DN-CDZ — request assembly
- CK4 Sun Hydraulics ISO 07: On A with reverse flow check Sandwich manifoldDFEB8DN-CK4 — request assembly
- CKD Sun Hydraulics ISO 07: A to T with gage port Sandwich manifoldDFEB8DN-CKD — request assembly
- IA4 Sun Hydraulics Ninety degree with gauge port Line mount manifoldDFEB8DN-IA4 — request assembly
- IA5 Sun Hydraulics Ninety degree with gauge port Line mount manifoldDFEB8DN-IA5 — request assembly
- IA6 Sun Hydraulics Ninety degree with gauge port Line mount manifoldDFEB8DN-IA6 — request assembly
Technical features
- NOTE: The main stage valve should first be installed to the correct torque value followed by the T-8A pilot control section into the main stage valve to its required torque value.
- The -8 control option allows the pilot control valve to be incorporated directly into the end of the directional cartridge via the T-8A cavity. These pilot control cartridges are sold separately and include solenoid operation, air pilot operation, and hydraulic pilot operation. See Pilot Control Cartridges.
- Incorporates the Sun floating-style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

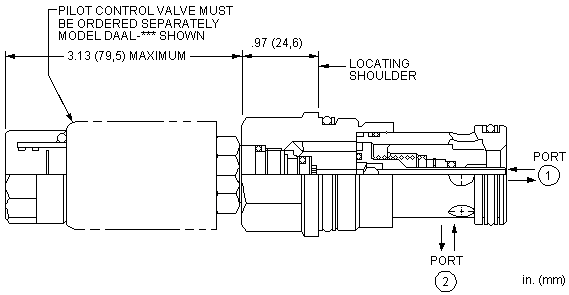

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
CAD files
Frequently asked questions
Is DFEB8DN the same as DFEB8-DN?
Yes. Sun Hydraulics writes this part number as DFEB8DN. It is the model DFEB8 followed by the configuration code; hyphens, slashes and spaces are only dividers, so DFEB8DN, DFEB8-DN, DFEB8 DN all refer to the same product.
Do you supply DFEB8DN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including DFEB8DN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What parts of the Sun cartridge valve are field serviceable?
Manufacturer reference: https://www.sunhydraulics.com/model/DFEB8
