EVEC-XXV – Sun Hydraulics 2-port energy harvester valve
Roll over image to zoom in
Part number: EVECXXV · EVEC-XXV · EVEC XXV
2-port energy harvester valve. Cavity T-16A. Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
EVEC-XXV overview
EVECXXV (EVEC-XXV, EVEC XXV) is a Sun Hydraulics Sun Hydraulics 2-port energy harvester valve and installed in cavity T-16A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Specifications
| Cavity | T-16A |
|---|---|
| Series | 3 |
| Number of Outputs | 1 |
| Vibration | 33.3 Hz 6.8g Peak (Spec: S-367 Section 11.0) (33.3 Hz 6.8g Peak (Spec: S-367 Section 11.0)) |
| Shock | 49g Peak (Spec: S-367 Section 12.0) (49g Peak (Spec: S-367 Section 12.0)) |
| Maximum Ambient Temperature | 160 °F |
| Minimum Flow Rate to Harvest Energy (No Load) | 10 gpm (40 L/min.) |
| Maximum Flow Rate | 50 gpm (200 L/min.) |
| External Drain Port Interface | 4mm PTC Connector |
| External Drain Port Leakage Rate | 6 drops/hr |
| Output Voltage - Maximum Flow Rate | 30 VDC (After Rectification) (30 VDC (After Rectification)) |
| Termination | Deutsch DT04-4P |
| Maximum Load Current | 3A |
| Maximum Operating Pressure (Port 2) | 200 psi (14 bar) |
| Duty Cycle Rating | 100 % |
| Connector | 4-Pin Deutsch (3 Phase AC Output) (4-Pin Deutsch (3 Phase AC Output)) |
| Valve Hex Size | 1 1/4 in. (31,8 mm) |
| Valve Installation Torque | 150 - 160 lbf ft (203 - 217 Nm) |
| Model Weight | 2.36 lb |
| IP Rating | IP69K |
| U.S. Patent # | 11,988,185 |
| Seal kit - Cartridge | Viton: 990316006 |
How to read EVECXXV
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so EVECXXV, EVEC-XXV, EVEC XXV are the same part.
| Model | EVEC — Sun Hydraulics 2-port energy harvester valve |
|---|---|
| Control | X — Standard |
| Functional Setting Range | X — No Check |
| Seal Material | V — Viton |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- X — Standard
Functional Setting Range options
- X — No Check
Seal Material options
- V — Viton
Manifold & standard assemblies
Sun manifolds for cavity T-16A (161)
- CD4 Sun Hydraulics ISO 08: On A with reverse flow check Sandwich manifoldEVECXXV-CD4 — request assembly
- CDC Sun Hydraulics ISO 08: A to T Sandwich manifoldEVECXXV-CDC — request assembly
- CDD Sun Hydraulics ISO 08: B to T Sandwich manifoldEVECXXV-CDD — request assembly
- CDO Sun Hydraulics ISO 08: P to T Sandwich manifoldEVECXXV-CDO — request assembly
- CDV Sun Hydraulics ISO 08: T to A and B Sandwich manifoldEVECXXV-CDV — request assembly
- CDW Sun Hydraulics ISO 08: A to B and B to A Sandwich manifoldEVECXXV-CDW — request assembly
- CDZ Sun Hydraulics ISO 08: A and B to T Sandwich manifoldEVECXXV-CDZ — request assembly
- CK4 Sun Hydraulics ISO 07: On A with reverse flow check Sandwich manifoldEVECXXV-CK4 — request assembly
- CKD Sun Hydraulics ISO 07: A to T with gage port Sandwich manifoldEVECXXV-CKD — request assembly
- IA4 Sun Hydraulics Ninety degree with gauge port Line mount manifoldEVECXXV-IA4 — request assembly
- IA5 Sun Hydraulics Ninety degree with gauge port Line mount manifoldEVECXXV-IA5 — request assembly
- IA6 Sun Hydraulics Ninety degree with gauge port Line mount manifoldEVECXXV-IA6 — request assembly
Technical features
- Power cable with mating connector is required (not included).
- The valve exhibits up to 6 drops per hour of internal leakage into the electronics housing. The auxiliary drain port must be gravity fed and therefore remain at atmospheric pressure to prevent submersion of the electronics.
- Valve must be installed in an upright or horizontal orientation. When installed horizontally, the collar should be positioned so that the drain is oriented downward.
- This product can handle a maximum of 200 PSI (14 bar) at port 2 and is designed to harvest energy from fluid destined to return to tank.
- Higher electrical loads and lower Port 2 pressure have a positive effect in reducing leakage.
- In addition to elevated leakage, higher than rated pressures at Port 2 result in a reduction in the power output.
- The electrical output is unregulated. Most applications will require external rectification/regulation.
- Meets new NFPA test standard T2.6.1 R2014 for fatigue and burst pressure ratings.
- Zinc-nickel plating standard for 1000-hour salt fog protection.

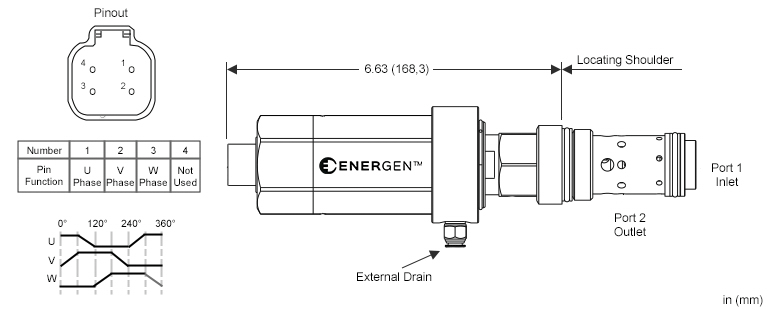

- Only 3 pins of the Deutsch DT04-4P Connector are used. The 4th pin is unused. Please see pinout for reference.
- Do not apply installation torque to the anodized aluminum motor housing.
- This valve is CE compliant. It meets the requirements for RF Radiated Emissions (IEC 61000-6-4), Radiated Immunity (IEC 61000-4-3), and Magnetic Field Immunity (IEC 61000-4-8).
- When torquing this cartridge into its cavity, a crow’s foot wrench or similar will be required since the motor housing precludes the use of a deep socket wrench.

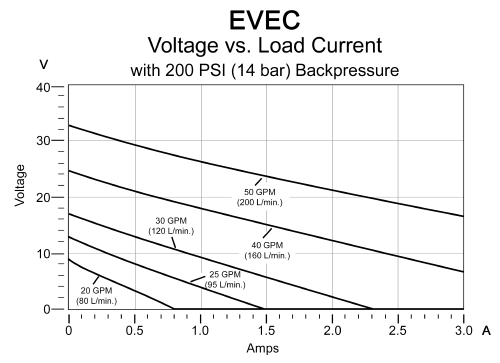

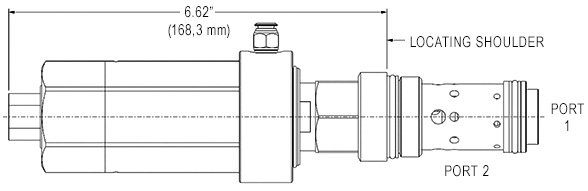

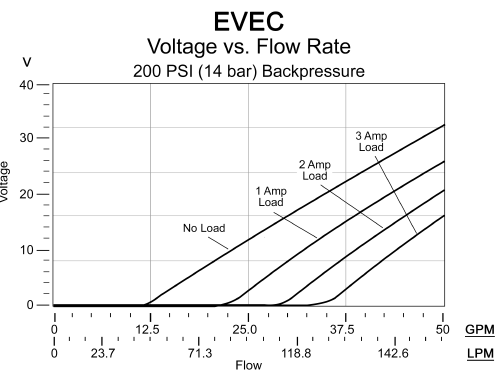

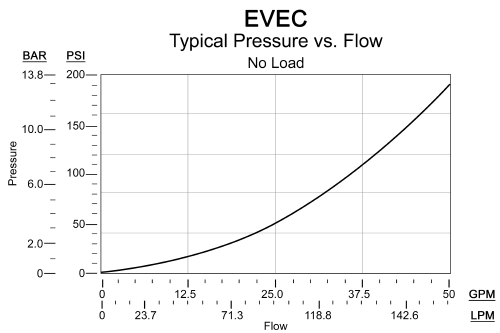

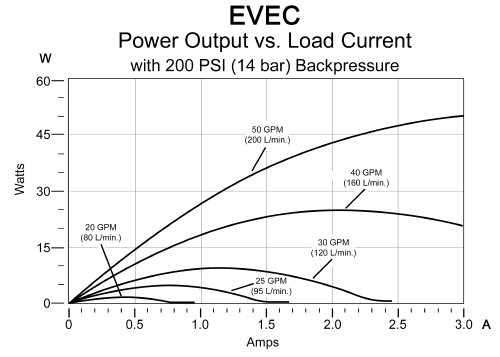

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
CAD files
Frequently asked questions
Is EVECXXV the same as EVEC-XXV?
Yes. Sun Hydraulics writes this part number as EVECXXV. It is the model EVEC followed by the configuration code; hyphens, slashes and spaces are only dividers, so EVECXXV, EVEC-XXV, EVEC XXV all refer to the same product.
Do you supply EVECXXV in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including EVECXXV, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What parts of the Sun cartridge valve are field serviceable?
Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
How do I use the Energen as the power supply for a constant DC voltage system?
Raw output from the Energen is both unregulated and unrectified. Power conditioning requirements will include rectification of the AC signal and voltage regulation to supply steady DC input to an electrical system. The specifics of power conditioning will depend on the requirements of your system. Sun can provide suggestions for a streamlined solution for 12 V systems. Please visit our tech tips for more information or contact tech support.

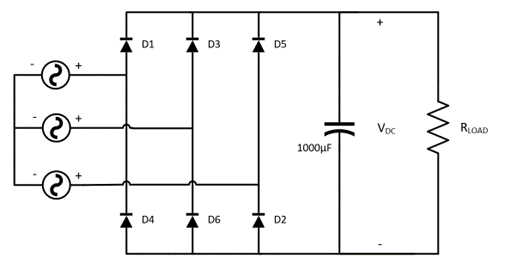

How do I convert the 3-phase AC signal into a DC voltage output?
The three phase AC output can be converted to DC with a full-wave bridge rectifier. The output voltage will be dependent on the flow rate.
Manufacturer reference: https://www.sunhydraulics.com/model/EVEC
