OP SPF2
Roll over image to zoom in
This device is suitable to skive both internally and externally hydraulic hoses up to 2’’ in diameter. SPF2 is provided with a skiving fixed mandrel with one cutter…

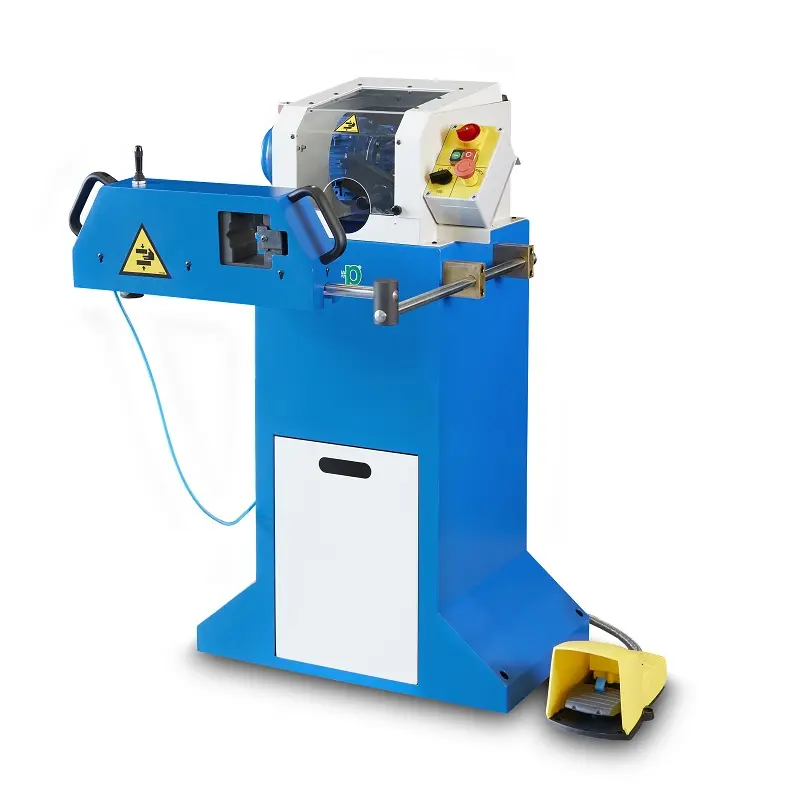

SPF2 overview
This device is suitable to skive both internally and externally hydraulic hoses up to 2’’ in diameter. SPF2 is provided with a skiving fixed mandrel with one cutter only, on which internal/external skiving pins need to be installed. Skiving length and depth need to be set upon every tool change, a milimetric ruler placed on the madrel aids the operated in this task. MAIN FEATURES : - pedal pneumatic control; - pneumatic vice for blocking the hose. Product specifications could be modified without prior notice.
MultiFlow is an authorized distributor of OP SRL products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| EXTERNAL DIAMETER CAPACITY | 2'' |
|---|---|
| INTERNAL DIAMETER CAPACITY | 2'' |
| REVOLUTIONS PER MINUTE | 300 |
| PNEUMATIC POWER | MAX 7 BAR (100 psi) OPTIONAL |
| WEIGHT | 82 KG (176 Lbs) |
| DIMENSIONS L x W x H | 650x437x1087 mm (25.5''x17.2''x42.7'' |
| STANDARD VOLTAGE | 400V 50HZ 3PH |
| MOTOR POWER | 0.75 Kw (1 Hp) |
| ELECTRIC PEDAL | incl. |
| SPECIAL VOLTAGE | OPTIONAL |
| PNEUMATIC VICE | OPTIONAL |
| TOOL HOLDER | OPTIONAL |
Videos
Downloads
Manufacturer reference: https://op-srl.it/en/products/spf2
