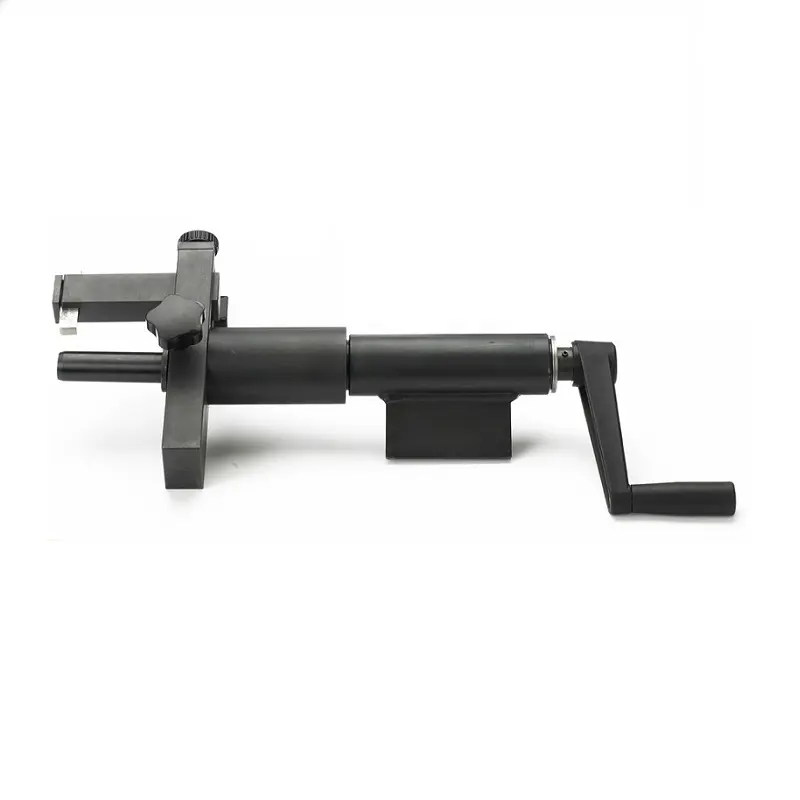

OP SPF1

Brand: OP SRL
SKU: SPF1

Roll over image to zoom in

Status:In stock

This device allows to skive internally and externally hydraulic hoses up to 2’’ in diameter. SPF1 is provided with a fixed tool-holder spindle with only one cutter and…

SKU: SPF1 Category: Skiving Brand: OP SRL

SPF1 overview

This device allows to skive internally and externally hydraulic hoses up to 2’’ in diameter. SPF1 is provided with a fixed tool-holder spindle with only one cutter and a millimetric ruler, which allows to set the skiving distance. The replacement of the pin and the adjustment of the position of the tool according to the diameter of the hose to be skived are required. Light and easy to use, it is the perfect equipment for outdoor service. Product specifications could be modified without prior notice.

MultiFlow is an authorized distributor of OP SRL products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.

Specifications

EXTERNAL DIAMETER CAPACITY	2''
INTERNAL DIAMETER CAPACITY	2''
WEIGHT	7 KG (15 Lbs)
DIMENSIONS L x W x H	480x240x100 mm (18.8''x9.4''x3.9'')
TOOL HOLDER	OPTIONAL
