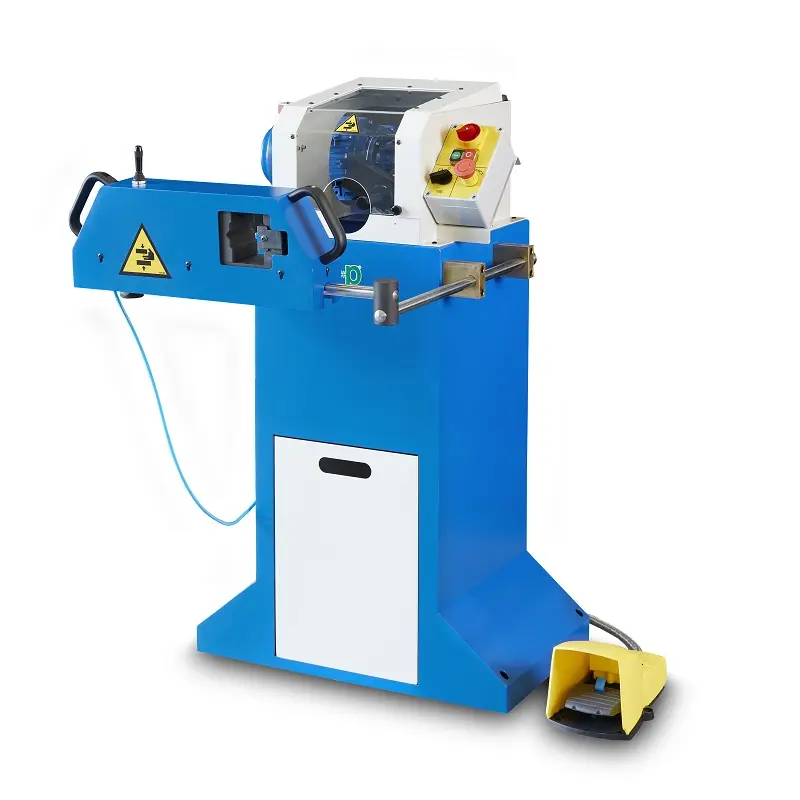

OP SPF2/MS
Roll over image to zoom in
This device allows to skive the internal and external surface of hydraulic hoses up to 2’’ in diameter. SPF2/MS is provided with a fixed tool-holder spindle with a…
SPF2MS overview
This device allows to skive the internal and external surface of hydraulic hoses up to 2’’ in diameter. SPF2/MS is provided with a fixed tool-holder spindle with a double cutter for each hose diameter. This means that the spindle needs to be adjusted only before the first operation, without having to reset every time the machine is used, resulting in considerable time-savings. MAIN FEATURES : - pedal pneumatic control; - pneumatic vice for blocking the hose. Product specifications could be modified without prior notice.
MultiFlow is an authorized distributor of OP SRL products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| EXTERNAL DIAMETER CAPACITY | 2'' |
|---|---|
| INTERNAL DIAMETER CAPACITY | 2'' |
| REVOLUTIONS PER MINUTE | 300 |
| PNEUMATIC POWER | MAX 7 BAR (100 psi) OPTIONAL |
| WEIGHT | 78 KG (172 lbs) |
| DIMENSIONS L x W x H | 685x500x1120 mm (26.9''x19.6''x44'') |
| STANDARD VOLTAGE | 400V 50HZ 3PH |
| MOTOR POWER | 0.75 Kw (1 Hp) |
| ELECTRIC PEDAL | incl. |
| SPECIAL VOLTAGE | OPTIONAL |
| PNEUMATIC VICE | OPTIONAL |
| TOOL HOLDER | OPTIONAL |
Videos
Downloads
Manufacturer reference: https://op-srl.it/en/products/spf2ms
