OP BC1200ES/F
Roll over image to zoom in
The test bench BC1200ES/F is very interesting for its flexible configuration: it is provided with mobile manifolds, with quick couplings and a considerable number of nipple threads and…
BC1200ESF overview

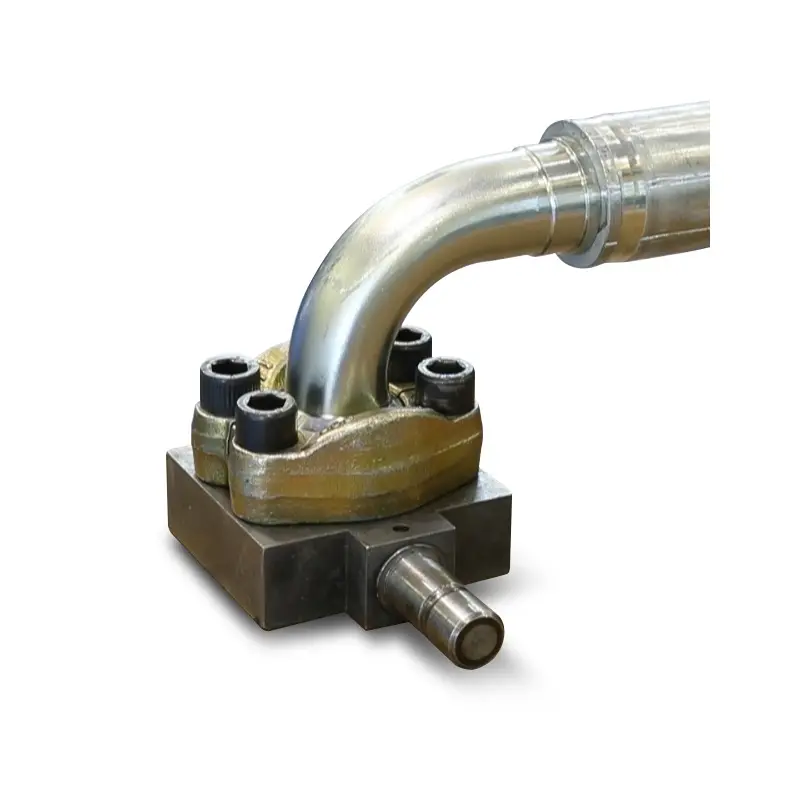

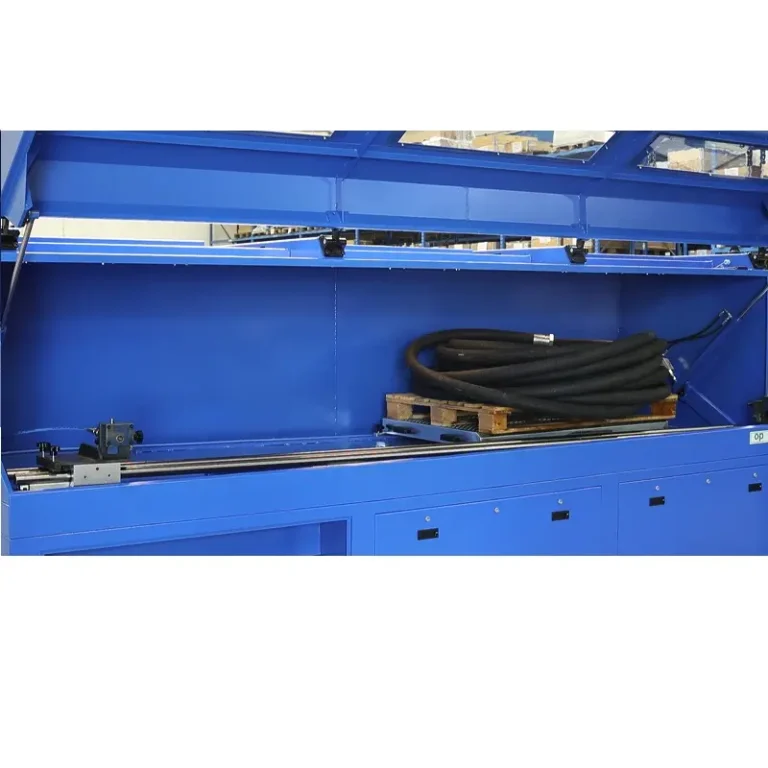

The test bench BC1200ES/F is very interesting for its flexible configuration: it is provided with mobile manifolds, with quick couplings and a considerable number of nipple threads and holes for SAE flanges . The internal testing room, 4000 mm long, is lit and provided with anti-oil mesh and shock-proof window. The platform, inside the testing compartment, makes the bench perfectly suitable for testing hose coils on pallet . The pressure (static and dynamic up to 1200 bar), the filling and the emptying phases of the test fluid can be controlled automatically - y means of the touch-screen control - or remotely. Product specifications could be modified without prior notice.
MultiFlow is an authorized distributor of OP SRL products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| STATIC PRESSURE | 1200 bar (17404 psi) |
|---|---|
| DYNAMIC PRESSURE | 1200 bar (17404 psi) |
| MINIMUM STARTING PRESSURE | 30 bar (435 psi) |
| PRESSURE RELEASE | Automatic |
| HOSE EMPTYING SYSTEM | Automatic |
| TYPE OF DRIVE | Pneumatic intensifier |
| TESTING LIQUID | Fluid |
| MANIFOLDS N. | 2 |
| N. OF MANIFOLD CONNECTIONS | 1 |
| LIQUID FILLING | Automatic |
| FILLING RATE | 25 LT./MIN. |
| PRESSURE PUMP FLOW | 1,5 LT./MIN. |
| ELECTRIC DOOR SAFETY DEVICE | Automatic |
| PRESSURE CONTROL | Automatic |
| TEST PROCEDURE | Automatic |
| PRESSURE DISPLAY | Digital |
| STANDARD TESTING CHAMBER DIMENSIONS | 4000x1290x890 mm (157.4''x50.7''x35'') |
| BENCH DIMENSIONS | 4100x1400x2050 mm (161.4''x55.1''x80.7'') |
| TANK | 150 Lt |
| STANDARD VOLTAGE | 400V 50 HZ 3PH |
| WEIGHT WITHOUT OIL | 1628 kg (3589 Lbs) |
| OIL-RESISTANT NET | incl. |
| INTERNAL LIGHTING | incl. |
| AUTOMATIC CONTROL WITH PLC | incl. |
| SHOCKPROOF CONTROL WINDOWS | incl. |
| PRESSURE PEAK MEMORY | incl. |
| PDF FILES PRINTING | incl. |
| AUTOMATIC DOOR OPENING | incl. |
| DELIVERY FILTER | incl. |
| TEMPERATURE ALARM | incl. |
| LAN AND USB CONNECTION | incl. |
| SUCTION FILTER | incl. |
| SLIDING MANIFOLDS | incl. |
| LEVEL ALARM | incl. |
| SHELVES | incl. |
| AIR CONSUMPTION | 1500 LT./MIN. |
| WASHING | OPTIONAL |
| SPECIAL VOLTAGE | OPTIONAL |
| PRESSURE SEAL TEST | OPTIONAL |
| PC CONNECTION | OPTIONAL |
| ADAPTERS | OPTIONAL |
