OP BC1200ES-2000ES

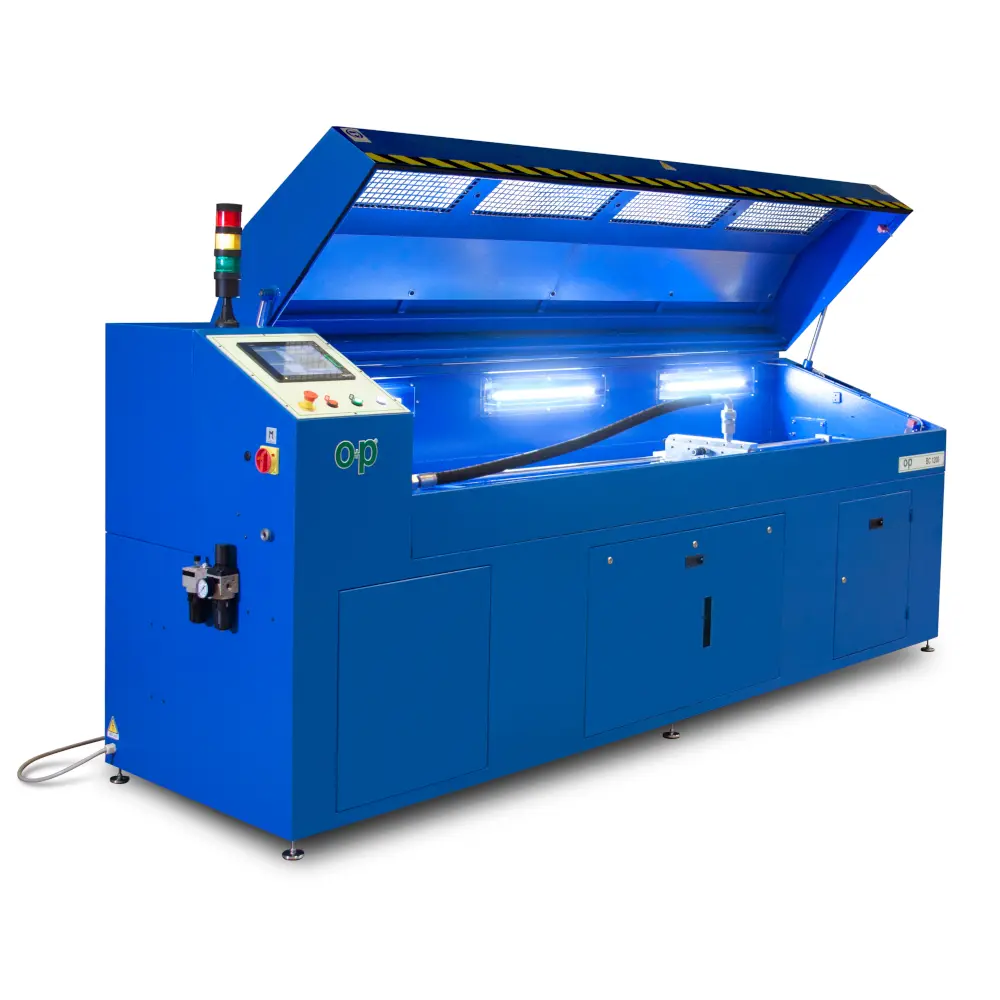

1200 and 2000 bar test bench, provided with pneumo-hydraulic pump. Automatic door opening and luminous signal. Lighted internal chamber protected by a shock-proof testing window; oil protecting mesh…
BC1200ES-2000ES overview
1200 and 2000 bar test bench, provided with pneumo-hydraulic pump. Automatic door opening and luminous signal. Lighted internal chamber protected by a shock-proof testing window; oil protecting mesh and shelves for tools. Static and dynamic pressure by air-oil pressure multiplier. PLC control. Product specifications could be modified without prior notice.
MultiFlow is an authorized distributor of OP SRL products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| STATIC PRESSURE | 1200 - 2000 bar (17404 - 29000 psi) |
|---|---|
| DYNAMIC PRESSURE | 1200 - 2000 bar (17404 - 29000 psi) |
| MINIMUM STARTING PRESSURE | BC1200: 30 bar (435 psi) ; BC2000: 50 bar (725 psi) |
| PRESSURE CONTROL | Automatic |
| TEST PROCEDURE | Automatic |
| TYPE OF DRIVE | Pneumatic intensifier |
| TESTING LIQUID | Fluid or water |
| MANIFOLDS N. | 2 |
| N. OF MANIFOLD CONNECTIONS | 15x1/4'' BSP |
| LIQUID FILLING | Automatic |
| FILLING RATE | 25 Lt/min |
| HOSE EMPTYING SYSTEM | Automatic |
| PRESSURE RELEASE | Automatic |
| PRESSURE DISPLAY | Digital |
| STANDARD TESTING CHAMBER DIMENSIONS | 2200x900 mm (86.6''x35.4'') |
| TANK | 100 Lt |
| BENCH DIMENSIONS | 2700x980x1700 mm (106.2''x38.5''x66.9'') |
| AIR CONSUMPTION | 1500 LT./MIN. |
| STANDARD VOLTAGE | 400V 50HZ 3PH |
| WEIGHT WITHOUT OIL | 976 KG (2150 Lbs) |
| AUTOMATIC DOOR OPENING | incl. |
| DELIVERY FILTER | incl. |
| INTERNAL LIGHTING | incl. |
| SHOCKPROOF CONTROL WINDOWS | incl. |
| PRESSURE SEAL TEST | Incl. |
| USB CONNECTION | incl. |
| PDF FILES PRINTING | incl. |
| PRESSURE PEAK MEMORY | incl. |
| ELECTRIC DOOR SAFETY DEVICE | incl. |
| AUTOMATIC CONTROL WITH PLC | incl. |
| TEMPERATURE ALARM | Incl. |
| SHELVES | incl. |
| SLIDING MANIFOLDS | incl. |
| OIL-RESISTANT NET | incl. |
| LEVEL ALARM | incl. |
| SUCTION FILTER | incl. |
| 3000 MM TESTING CHAMBER | OPTIONAL |
| SPECIAL VOLTAGE | OPTIONAL |
| WASHING | OPTIONAL |
| SAE FLANGES MANIFOLDS | OPTIONAL |
| PC CONNECTION | OPTIONAL |
| ADAPTERS | OPTIONAL |
| BURST-PROOF PROTECTIONS | OPTIONAL |
