C7V – Sun Hydraulics Ninety degree Line mount manifold, aluminium, Buna-N seals
Part number: C7V · C7V/10 · C7V/11 · C7V/S · C7V/S3 · C7V/S4 · C7V/S5
Ninety degree Line mount manifold, cavity T-31A, 1/2″ BSPP ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
C7V overview
C7V (C7V/10, C7V/11, C7V/S, C7V/S3) is a Sun Hydraulics Sun Hydraulics Ninety degree Line mount manifold and installed in cavity T-31A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| C7V | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| C7V/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| C7V/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| C7V/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| C7V/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| C7V/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| C7V/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Interface | None |
| Body Features | Ninety degree |
| Mounting Hole Diameter | .34 in. (8.6 mm) |
| Mounting Hole Depth | Through |
| Mounting Hole Quantity | 2 |
| Open Cavities | 1 |
| Cavity | T-31A |
| Port Size | 1/2" BSPP |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read C7V
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so C7V, C7V/10, C7V/11, C7V/S, C7V/S3, C7V/S4, C7V/S5 are the same part.
| Model | C7V — Sun Hydraulics Ninety degree Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. C7V/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-31A (27)
- DNCAXXN Sun Hydraulics 4-way, 2-position, solenoid-operated directional spool valve with closed transitionDNCAXXN-C7V — request assembly
- DNCAZXN224 Sun Hydraulics 4-way, 2-position, solenoid-operated directional spool valve with closed transition and position switchDNCAZXN224-C7V — request assembly
- DNDAXNN Sun Hydraulics 4-way, 2-position, solenoid-operated directional spool valveDNDAXNN-C7V — request assembly
- DNDASNN Sun Hydraulics 4-way, 2-position, soft shift, solenoid-operated directional spool valveDNDASNN-C7V — request assembly
- DNDCXCN Sun Hydraulics 4-way, 3-position, solenoid-operated directional spool valveDNDCXCN-C7V — request assembly
- DNDFXCN Sun Hydraulics 4-way, 2-position, solenoid-operated directional spool valve (740 Series)DNDFXCN-C7V — request assembly
- DNDMLNN Sun Hydraulics 4-way, manually operated, directional spool valveDNDMLNN-C7V — request assembly
- DNDUXCN Sun Hydraulics 4-way, 2-position, solenoid-operated directional blocking valve (740 Series)DNDUXCN-C7V — request assembly
- DSCHXHN Sun Hydraulics Low side, 3-position, hot oil shuttle valveDSCHXHN-C7V — request assembly
- DSCLXGN Sun Hydraulics Direct-acting, low side, 3-position, shuttle valveDSCLXGN-C7V — request assembly
- DSCOXEN Sun Hydraulics Spring offset, 2-position, high side shuttle valveDSCOXEN-C7V — request assembly
- DSCSXGN Sun Hydraulics High side, 3-position, shuttle valveDSCSXGN-C7V — request assembly
Ports
Modifiers Ports C7V, /10, /11, /S, /S3 All Ports: 1/2" BSPP;

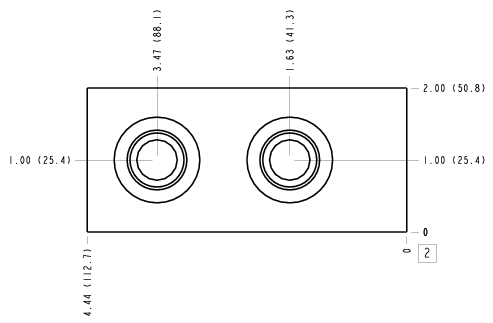

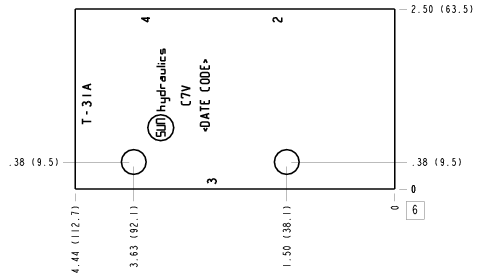

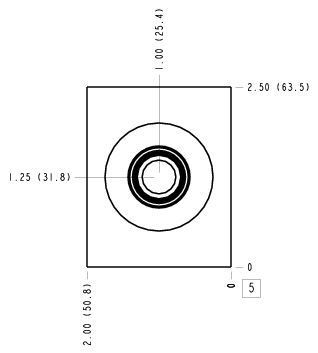

Drawings, symbol & performance curves
Downloads
Datasheet
CAD files (from Sun Hydraulics)
Frequently asked questions
Is C7V the same as C7V/10?
Yes. Sun Hydraulics writes this part number as C7V. It is the model C7V followed by the configuration code; hyphens, slashes and spaces are only dividers, so C7V, C7V/10, C7V/11, C7V/S, C7V/S3, C7V/S4, C7V/S5 all refer to the same product.
Do you supply C7V in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including C7V, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
Manufacturer reference: https://www.sunhydraulics.com/model/C7V
