OP BC1200/E ES
Roll over image to zoom in

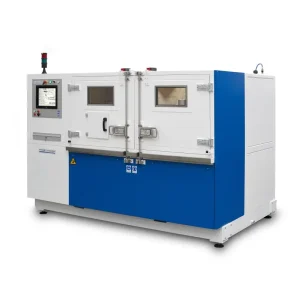

Test bench up to 1200 bar provided with automatic PLC control and hydraulic multiplier. Not suitable for burst tests. Product specifications could be modified without prior notice.
BC1200E-ES overview
Test bench up to 1200 bar provided with automatic PLC control and hydraulic multiplier. Not suitable for burst tests. Product specifications could be modified without prior notice.
MultiFlow is an authorized distributor of OP SRL products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| STATIC PRESSURE | 1200 bar (17400 psi) |
|---|---|
| DYNAMIC PRESSURE | 1200 bar (17400 psi) |
| MINIMUM STARTING PRESSURE | 100 bar (1450 psi) |
| PRESSURE CONTROL | Automatic |
| TEST PROCEDURE | Automatic |
| TYPE OF DRIVE | Hydraulic intensifier |
| TESTING LIQUID | Fluid |
| MANIFOLDS N. | 2 |
| N. OF MANIFOLD CONNECTIONS | N.6 special quick connections - N.2 1/4'' BSP |
| LIQUID FILLING | Automatic |
| FILLING RATE | 17 Lt/min |
| PRESSURE RELEASE | Automatic |
| MECHANICAL DOOR SAFERY DEVICE | Automatic |
| ELECTRIC DOOR SAFETY DEVICE | Automatic |
| STANDARD TESTING CHAMBER DIMENSIONS | 2000x830 mm (78.7''x32.6'') |
| BENCH DIMENSIONS | 2500x955x1200 mm (98.4''x37.5''x47.2'') |
| TANK | 110 Lt |
| STANDARD VOLTAGE | 400V 50HZ 3PH |
| WEIGHT WITHOUT OIL | 600 KG (1323 Lbs) |
| FIXED VOLUME MULTIPLIER | Oil volume 0,325 lt |
| AUTOMATIC CONTROL WITH PLC | incl. |
| OIL-RESISTANT NET | incl. |
| SHELVES | incl. |
| USB CONNECTION | incl. |
| SUCTION FILTER | incl. |
| SHOCKPROOF CONTROL WINDOWS | incl. |
| DELIVERY FILTER | incl. |
| INTERNAL LIGHTING | incl. |
| SLIDING MANIFOLDS | incl. |
| PC CONNECTION | OPTIONAL |
| SPECIAL VOLTAGE | OPTIONAL |
Videos
Downloads
Manufacturer reference: https://op-srl.it/en/products/bc1200e-es
