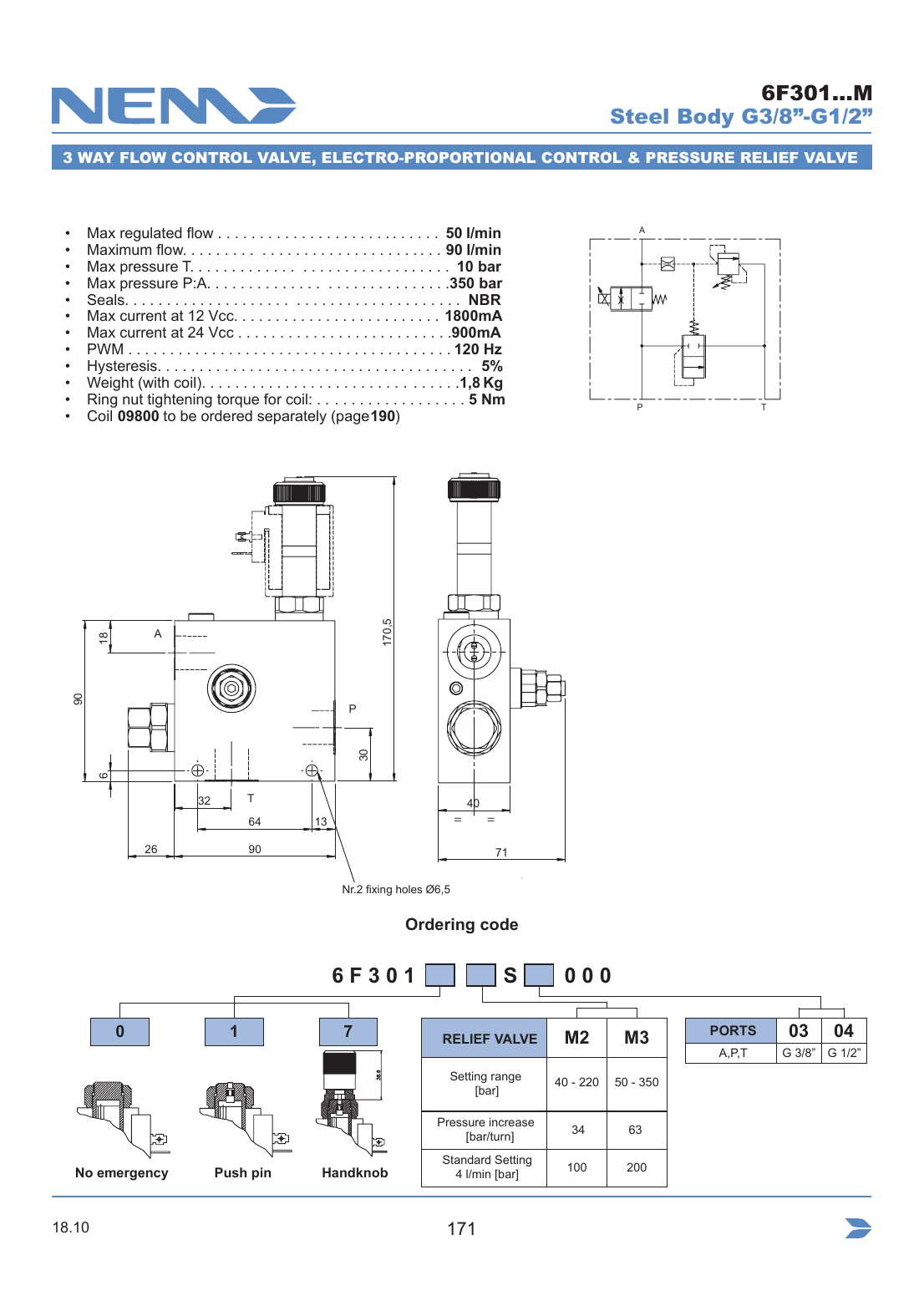

Flow Control Valve, NEM model 6F301…M — Steel Body G3/8”-G1/2”.
NEM-6F301...M overview
Flow Control Valve, NEM model 6F301...M — Steel Body G3/8”-G1/2”.
MultiFlow is an authorized distributor of NEM Hydraulics products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| Type | Flow Control Valve |
|---|---|
| Mounting | Steel Body G3/8”-G1/2” |
| Max regulated flow | 50 l/min A |
| Maximum flow | 90 l/min |
| Max pressure T | 10 bar |
| Max pressure P:A | 350 bar |
| Seals | NBR |
| Max current at 12 Vcc | 1800mA |
| Max current at 24 Vcc | 900mA |
| PWM | 120 Hz |
| Hysteresis | 5% |
| Weight (with coil) | 1,8 Kg |
| Ring nut tightening torque for coil: | 5 Nm P T |
Downloads
Manufacturer reference: https://nem-hydraulics.com/dist/catalogs/catalog_partsInBody.pdf
