NEM 0373.0 – Unidirectional Flow Control Valve
Roll over image to zoom in

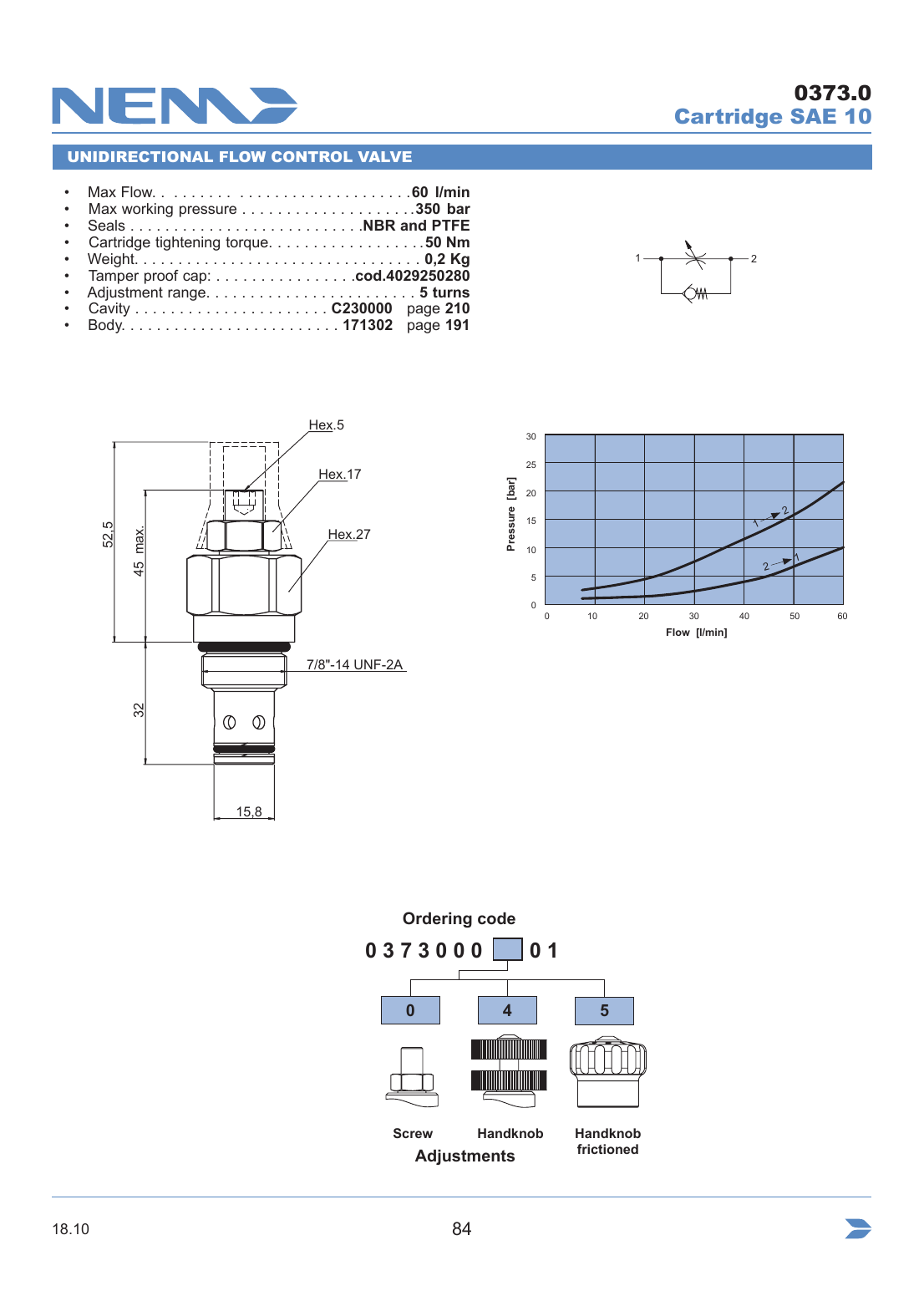

Unidirectional Flow Control Valve, NEM model 0373.0 — Cartridge SAE 10. Max working pressure 350 bar.
NEM-0373.0 overview
Unidirectional Flow Control Valve, NEM model 0373.0 — Cartridge SAE 10. Max working pressure 350 bar.
MultiFlow is an authorized distributor of NEM Hydraulics products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| Type | Unidirectional Flow Control Valve |
|---|---|
| Mounting | Cartridge SAE 10 |
| Max Flow | 60 l/min |
| Max working pressure | 350 bar |
| Seals | NBR and PTFE |
| Cartridge tightening torque | 50 Nm |
| Weight | 0,2 Kg |
| Tamper proof cap: | cod.4029250280 |
| Adjustment range | 5 turns |
| Cavity | C230000 page 210 |
| Body | 171302 page 191 |
Downloads
Manufacturer reference: https://nem-hydraulics.com/dist/catalogs/catalog_cartridgeValves.pdf
