NEM 6D825.N – Flow Divider And Combiner Valve
Roll over image to zoom in
Flow Divider And Combiner Valve, NEM model 6D825.N — Aluminum body. Flow up to 150 l/min A B. Max working pressure 250 bar.
NEM-6D825.N overview
Flow Divider And Combiner Valve, NEM model 6D825.N — Aluminum body. Flow up to 150 l/min A B. Max working pressure 250 bar.
MultiFlow is an authorized distributor of NEM Hydraulics products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| Type | Flow Divider And Combiner Valve |
|---|---|
| Mounting | Aluminum body |
| Flow | 150 l/min A B |
| Max working pressure | 250 bar |
| Division ratio | 50% ÷ 50% |
| Tollerance | < +/-3% |
| Weight (layout 0) | 1,90 Kg |
| Weight (layout 1) | 1,75 Kg P |
Downloads

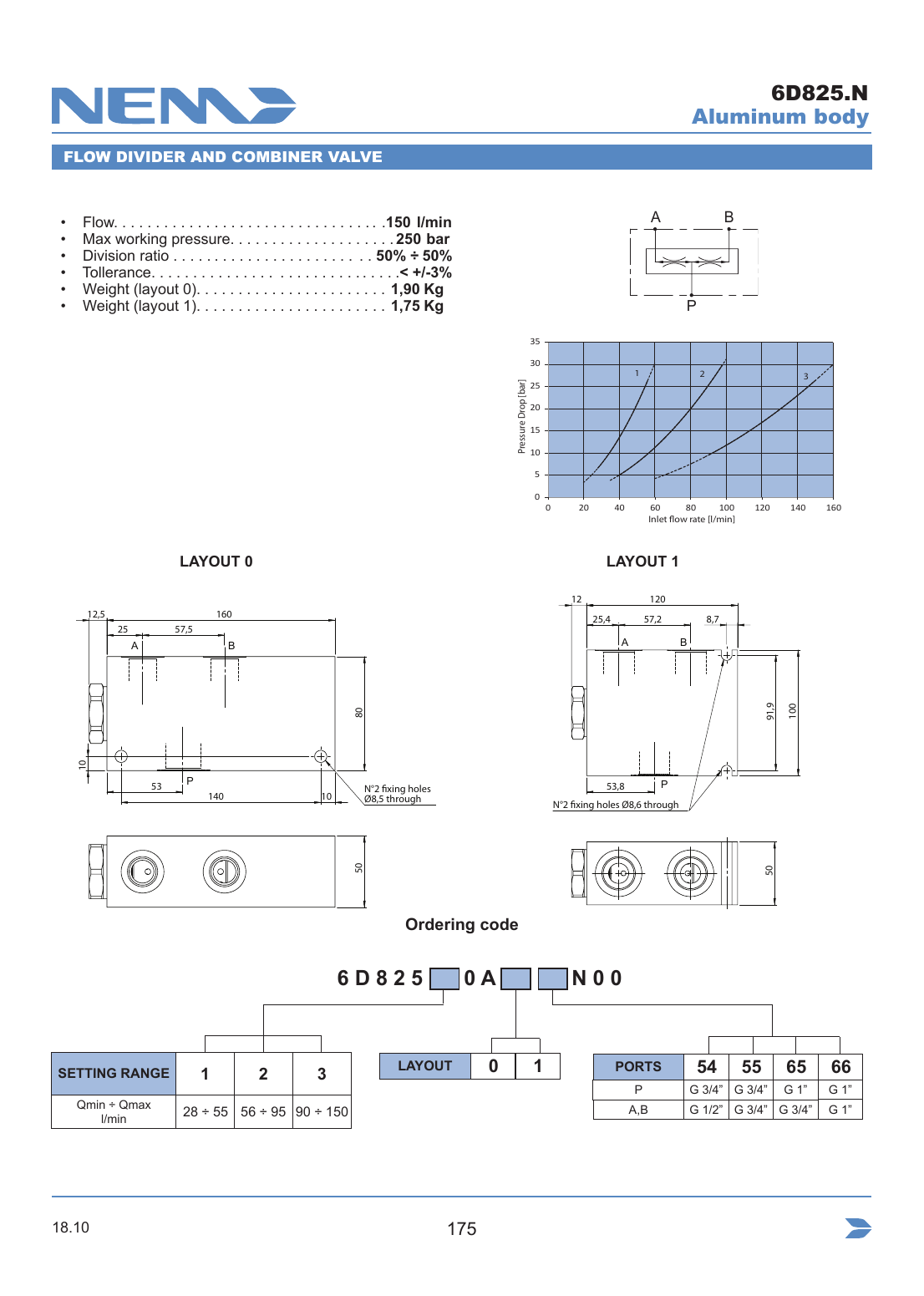

Manufacturer reference: https://nem-hydraulics.com/dist/catalogs/catalog_partsInBody.pdf
