NEM 0705.1 – Check Valve

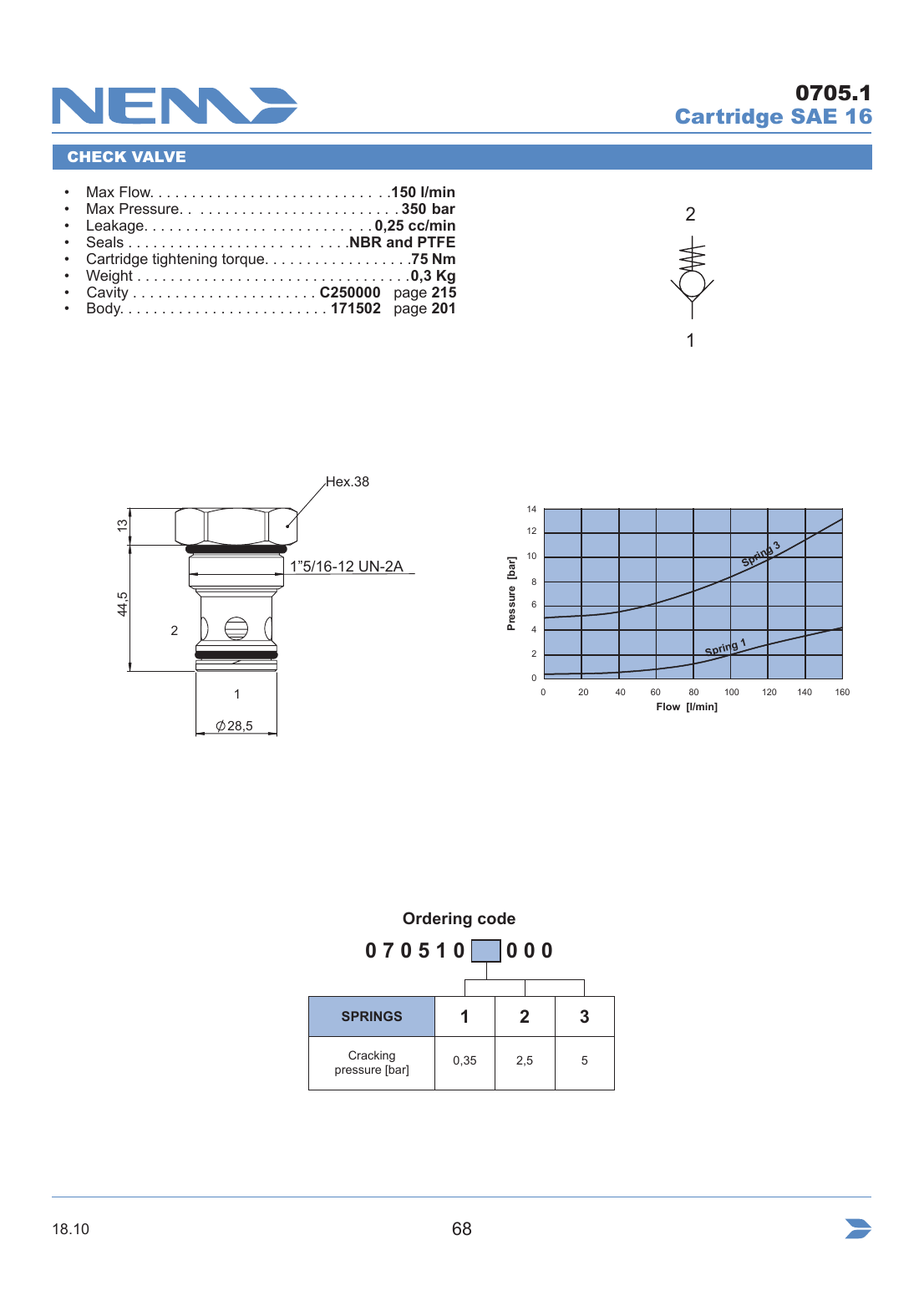

NEM Hydraulics Check Valve drawing
Roll over image to zoom in
Click to open expanded view

In stock

Check Valve, NEM model 0705.1 — Cartridge SAE 16.

SKU: NEM-0705.1 Category: Brand:

NEM-0705.1 overview

Check Valve, NEM model 0705.1 — Cartridge SAE 16.

MultiFlow is an authorized distributor of NEM Hydraulics products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.

Specifications

TypeCheck Valve
MountingCartridge SAE 16
Max Flow150 l/min
Max Pressure350 bar
Leakage0,25 cc/min
SealsNBR and PTFE
Cartridge tightening torque75 Nm
Weight0,3 Kg
CavityC250000 page 215
Body171502 page 201

Downloads

Manufacturer reference: https://nem-hydraulics.com/dist/catalogs/catalog_cartridgeValves.pdf
