NEM 0493.1 – 2 Way 2 Position Rotary Spool Directional Valve
Roll over image to zoom in

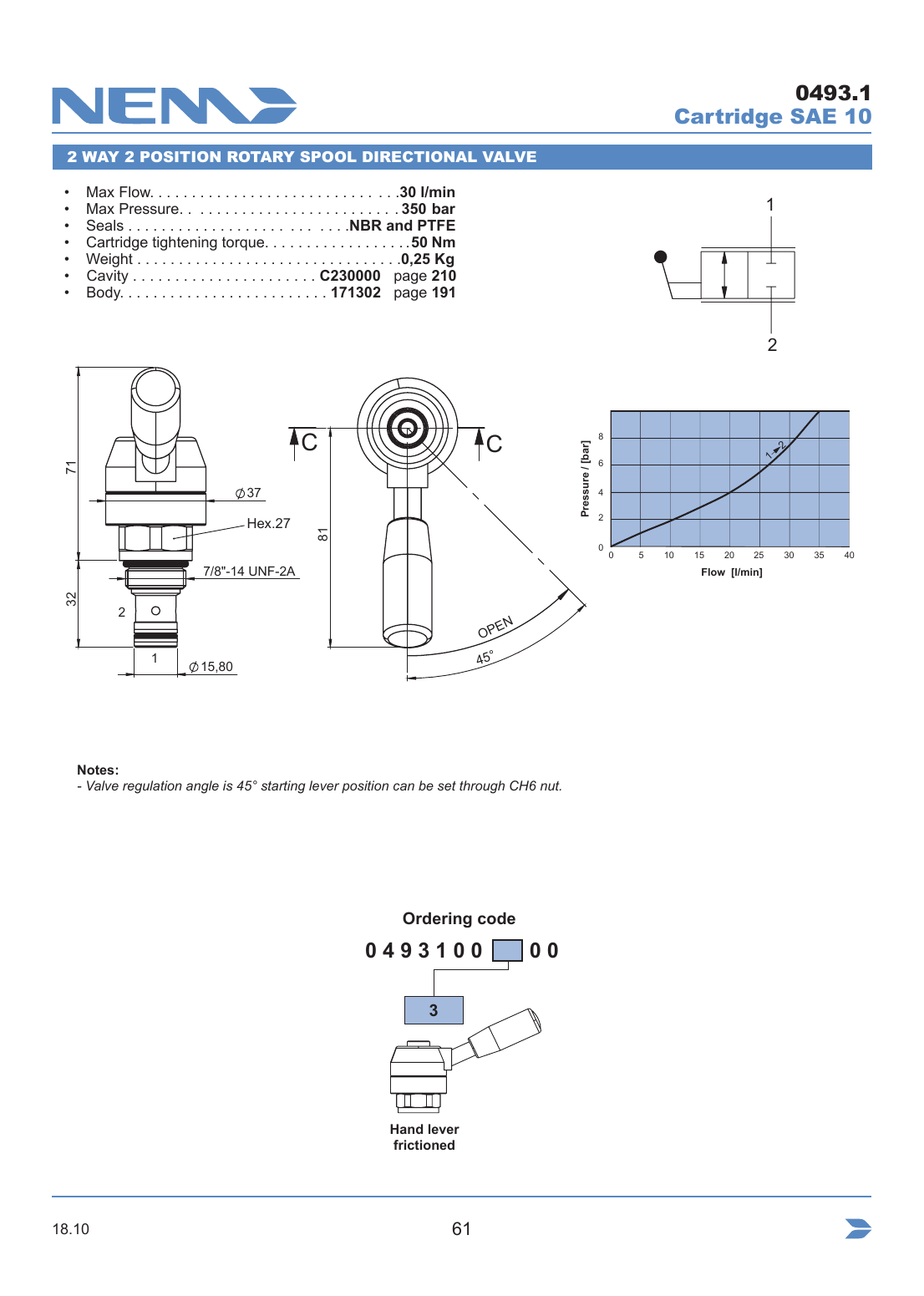

2 Way 2 Position Rotary Spool Directional Valve, NEM model 0493.1 — Cartridge SAE 10.
NEM-0493.1 overview
2 Way 2 Position Rotary Spool Directional Valve, NEM model 0493.1 — Cartridge SAE 10.
MultiFlow is an authorized distributor of NEM Hydraulics products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| Type | 2 Way 2 Position Rotary Spool Directional Valve |
|---|---|
| Mounting | Cartridge SAE 10 |
| Max Flow | 30 l/min |
| Max Pressure | 350 bar |
| Seals | NBR and PTFE |
| Cartridge tightening torque | 50 Nm |
| Weight | 0,25 Kg |
| Cavity | C230000 page 210 |
| Body | 171302 page 191 |
Downloads
Manufacturer reference: https://nem-hydraulics.com/dist/catalogs/catalog_cartridgeValves.pdf
