NEM NVS3 – Load Sensing Directional Control Valve
Roll over image to zoom in
Compact modular sectional directional control valve with load sensing, on-off and proportional inlet flow control versions. Anodized aluminum body, up to 10 work sections.
NEM-NVS3 overview
Compact modular sectional directional control valve with load sensing, on-off and proportional inlet flow control versions. Anodized aluminum body, up to 10 work sections.
MultiFlow is an authorized distributor of NEM Hydraulics products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| Type | Load Sensing Directional Control Valve |
|---|---|
| Mounting | Sectional (1-10 work sections) |
| Control principle | Load sensing / on-off / proportional inlet flow control |
| Body material | Anodized aluminum |
| Work sections | 1-10 |
| Max working pressure | 210 bar |
| Max back pressure on port T | 10 bar |
| Max inlet flow | 30 L/min |
| Max regulated flow on ports A & B | 30 L/min |
Downloads

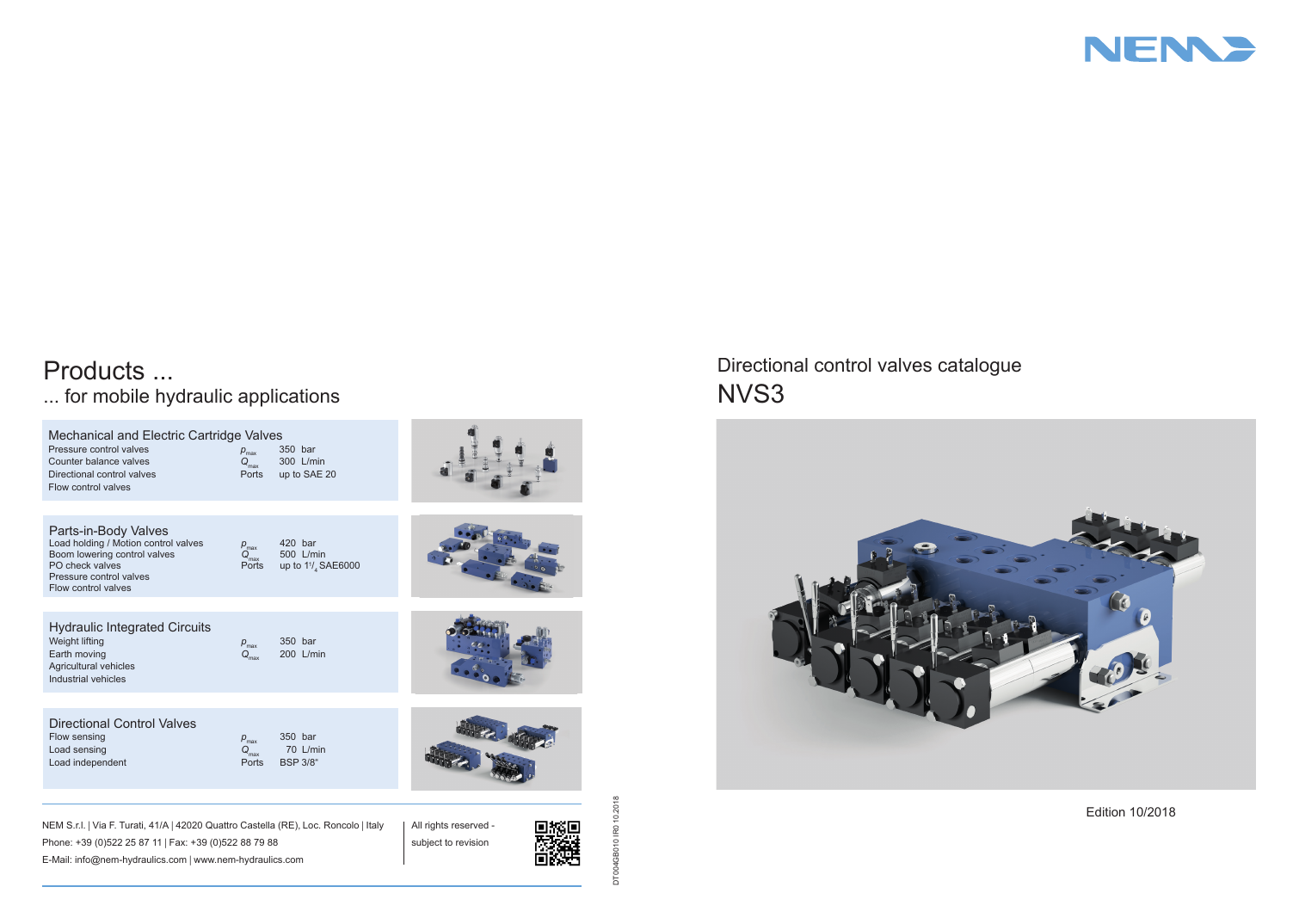

Manufacturer reference: https://nem-hydraulics.com/dist/catalogs/catalogs_directionalControlValves.zip
