NEM 0523.1 – 2 Way Normally Closed Poppet Valve, Electro-Proportional Flow Control
Roll over image to zoom in

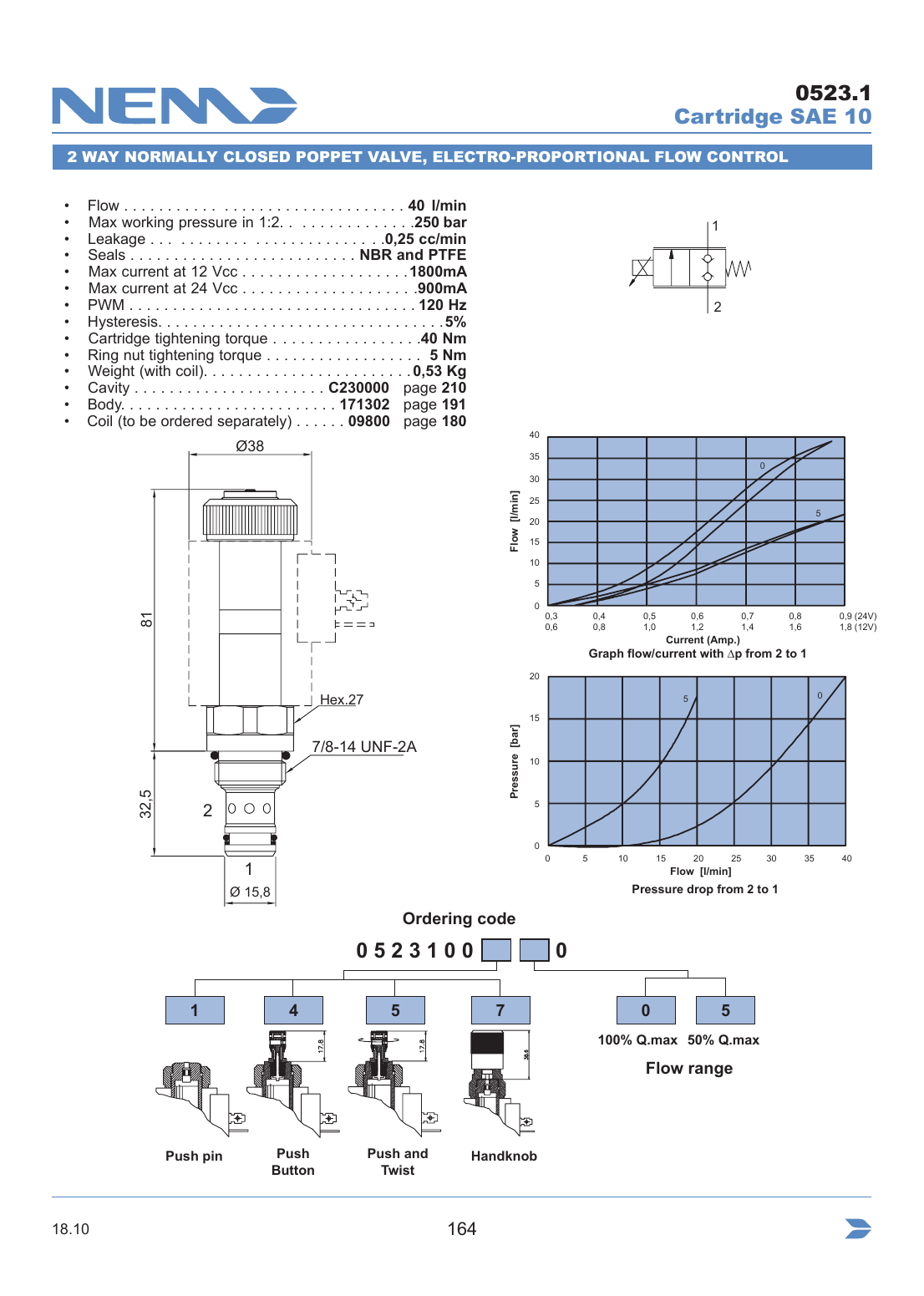

2 Way Normally Closed Poppet Valve, Electro-Proportional Flow Control, NEM model 0523.1 — Cartridge SAE 10. Flow up to 40 l/min.
NEM-0523.1 overview
2 Way Normally Closed Poppet Valve, Electro-Proportional Flow Control, NEM model 0523.1 — Cartridge SAE 10. Flow up to 40 l/min.
MultiFlow is an authorized distributor of NEM Hydraulics products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| Type | 2 Way Normally Closed Poppet Valve, Electro-Proportional Flow Control |
|---|---|
| Mounting | Cartridge SAE 10 |
| Flow | 40 l/min |
| Max working pressure in 1:2 | 250 bar |
| Leakage | 0,25 cc/min |
| Seals | NBR and PTFE |
| Max current at 12 Vcc | 1800mA |
| Max current at 24 Vcc | 900mA |
| PWM | 120 Hz |
| Hysteresis | 5% |
| Cartridge tightening torque | 40 Nm |
| Ring nut tightening torque | 5 Nm |
| Weight (with coil) | 0,53 Kg |
| Cavity | C230000 page 210 |
| Body | 171302 page 191 |
| Coil (to be ordered separately) | 09800 page 180 |
Downloads
Manufacturer reference: https://nem-hydraulics.com/dist/catalogs/catalog_cartridgeValves.pdf
