NCGB-LCN – Sun Hydraulics Fully adjustable needle valve with reverse flow check
Part number: NCGBLCN · NCGB-LCN · NCGB LCN
Fully adjustable needle valve with reverse flow check. Cavity T-18A, capacity 60 gpm (.56 inch) (240 L/min. (14,2 mm)). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
NCGB-LCN overview
NCGBLCN (NCGB-LCN, NCGB LCN) is a Sun Hydraulics Sun Hydraulics Fully adjustable needle valve with reverse flow check, rated 60 gpm (.56 inch) (240 L/min. (14,2 mm)) and installed in cavity T-18A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| NCGBLCN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| NCGBLCN/LH | Mild Steel, Zinc-NickelMild Steel, Zinc-Nickel |
| NCGBLCN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-18A |
|---|---|
| Series | 4 |
| Capacity | 60 gpm (.56 inch) (240 L/min. (14,2 mm)) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min. (0,7 cc/min.) |
| Adjustment - No. of CCW Turns from Fully Closed to Fully Open | 5 |
| Valve Hex Size | 1 5/8 in. (41,3 mm) |
| Valve Installation Torque | 350 - 375 lbf ft (474 - 508 Nm) |
| Adjustment Screw Internal Hex Size | 5/32 in. (4 mm) |
| Locknut Hex Size | 9/16 in. (15 mm) |
| Locknut Torque | 80 - 90 lbf in. (9 - 10 Nm) |
| Model Weight | 3.00 lb (1,35 kg) |
| Seal kit - Cartridge | Viton: 990018006 |
How to read NCGBLCN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so NCGBLCN, NCGB-LCN, NCGB LCN are the same part.
| Model | NCGB — Sun Hydraulics Fully adjustable needle valve with reverse flow check |
|---|---|
| Control | L — Standard Screw Adjustment |
| Reverse Flow Check | C — 30 psi (2 bar) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- L — Standard Screw Adjustment
- H — Calibrated Handknob with Detent Lock
- K — Handknob
- Y — Tri-Grip Handknob
Reverse Flow Check options
- C — 30 psi (2 bar)
- A — 4 psi (0,3 bar)
- E — 75 psi (5 bar)
- B — 15 psi (1 bar)
- D — 50 psi (3,5 bar)
Seal Material options
- N — Buna-N
- V — Viton
- E — EPDM
Material/coating options
- /AP — Stainless Steel, Passivated
- /LH — Mild Steel, Zinc-Nickel
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-18A (102)
- LA2 Sun Hydraulics Ninety degree with gauge port Line mount manifoldNCGBLCN-LA2 — request assembly
- LA4 Sun Hydraulics Ninety degree with gauge port Line mount manifoldNCGBLCN-LA4 — request assembly
- LA5 Sun Hydraulics Ninety degree with gauge port Line mount manifoldNCGBLCN-LA5 — request assembly
- LA6 Sun Hydraulics Ninety degree with gauge port Line mount manifoldNCGBLCN-LA6 — request assembly
- LA7 Sun Hydraulics Ninety degree with gauge port Line mount manifoldNCGBLCN-LA7 — request assembly
- LA8 Sun Hydraulics Ninety degree with gauge port Line mount manifoldNCGBLCN-LA8 — request assembly
- LA9 Sun Hydraulics Ninety degree with gauge port Line mount manifoldNCGBLCN-LA9 — request assembly
- LAD Sun Hydraulics Ninety degree with gauge port Line mount manifoldNCGBLCN-LAD — request assembly
- LAE Sun Hydraulics Ninety degree with gauge port Line mount manifoldNCGBLCN-LAE — request assembly
- LAF Sun Hydraulics Ninety degree with gauge port Line mount manifoldNCGBLCN-LAF — request assembly
- LAL Sun Hydraulics Ninety degree with gauge port Line mount manifoldNCGBLCN-LAL — request assembly
- LAM Sun Hydraulics Ninety degree with gauge port Line mount manifoldNCGBLCN-LAM — request assembly
Technical features
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- Because needle valves are non-compensating devices, the fixed orifice size will regulate flow through the valve in proportion to the square root of the pressure differential across ports 1 and 2.
- A balanced adjustment mechanism allows for easy adjustment even at high pressures.
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

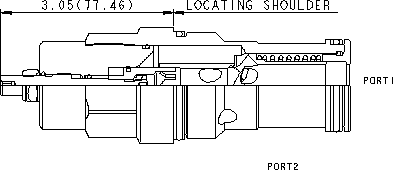

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
- 999-901-334 (PDF 344 KB)
- FloatingStyleScrewInCartridge2 (PDF 1 MB)
- TT_US_Cavity-New (PDF 522 KB)
- TT_US_check-flow1-New (PDF 537 KB)
CAD files
Frequently asked questions
Is NCGBLCN the same as NCGB-LCN?
Yes. Sun Hydraulics writes this part number as NCGBLCN. It is the model NCGB followed by the configuration code; hyphens, slashes and spaces are only dividers, so NCGBLCN, NCGB-LCN, NCGB LCN all refer to the same product.
Do you supply NCGBLCN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including NCGBLCN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What parts of the Sun cartridge valve are field serviceable?
Manufacturer reference: https://www.sunhydraulics.com/model/NCGB
