NCFB-LCN – Sun Hydraulics Fully adjustable needle valve with reverse flow check
Roll over image to zoom in
Part number: NCFBLCN · NCFB-LCN · NCFB LCN
Fully adjustable needle valve with reverse flow check. Cavity T-16A, capacity 30 gpm (.38 inch) (120 L/min. (9,7 mm)). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
NCFB-LCN overview
NCFBLCN (NCFB-LCN, NCFB LCN) is a Sun Hydraulics Sun Hydraulics Fully adjustable needle valve with reverse flow check, rated 30 gpm (.38 inch) (120 L/min. (9,7 mm)) and installed in cavity T-16A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| NCFBLCN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| NCFBLCN/LH | Mild Steel, Zinc-NickelMild Steel, Zinc-Nickel |
| NCFBLCN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-16A |
|---|---|
| Series | 3 |
| Capacity | 30 gpm (.38 inch) (120 L/min. (9,7 mm)) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min. (0,7 cc/min.) |
| Adjustment - No. of CCW Turns from Fully Closed to Fully Open | 5 |
| Valve Hex Size | 1 1/4 in. (31,8 mm) |
| Valve Installation Torque | 150 - 160 lbf ft (203 - 217 Nm) |
| Adjustment Screw Internal Hex Size | 5/32 in. (4 mm) |
| Locknut Hex Size | 9/16 in. (15 mm) |
| Locknut Torque | 80 - 90 lbf in. (9 - 10 Nm) |
| Model Weight | 1.30 lb (0,60 kg) |
| Seal kit - Cartridge | Viton: 990016006 |
How to read NCFBLCN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so NCFBLCN, NCFB-LCN, NCFB LCN are the same part.
| Model | NCFB — Sun Hydraulics Fully adjustable needle valve with reverse flow check |
|---|---|
| Control | L — Standard Screw Adjustment |
| Reverse Flow Check | C — 30 psi (2 bar) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- L — Standard Screw Adjustment
- H — Calibrated Handknob with Detent Lock
- K — Handknob
- Y — Tri-Grip Handknob
Reverse Flow Check options
- C — 30 psi (2 bar)
- A — 4 psi (0,3 bar)
- E — 75 psi (5 bar)
- B — 15 psi (1 bar)
- D — 50 psi (3,5 bar)
Seal Material options
- N — Buna-N
- V — Viton
- E — EPDM
Material/coating options
- /AP — Stainless Steel, Passivated
- /LH — Mild Steel, Zinc-Nickel
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-16A (161)
- CD4 Sun Hydraulics ISO 08: On A with reverse flow check Sandwich manifoldNCFBLCN-CD4 — request assembly
- CDC Sun Hydraulics ISO 08: A to T Sandwich manifoldNCFBLCN-CDC — request assembly
- CDD Sun Hydraulics ISO 08: B to T Sandwich manifoldNCFBLCN-CDD — request assembly
- CDO Sun Hydraulics ISO 08: P to T Sandwich manifoldNCFBLCN-CDO — request assembly
- CDV Sun Hydraulics ISO 08: T to A and B Sandwich manifoldNCFBLCN-CDV — request assembly
- CDW Sun Hydraulics ISO 08: A to B and B to A Sandwich manifoldNCFBLCN-CDW — request assembly
- CDZ Sun Hydraulics ISO 08: A and B to T Sandwich manifoldNCFBLCN-CDZ — request assembly
- CK4 Sun Hydraulics ISO 07: On A with reverse flow check Sandwich manifoldNCFBLCN-CK4 — request assembly
- CKD Sun Hydraulics ISO 07: A to T with gage port Sandwich manifoldNCFBLCN-CKD — request assembly
- IA4 Sun Hydraulics Ninety degree with gauge port Line mount manifoldNCFBLCN-IA4 — request assembly
- IA5 Sun Hydraulics Ninety degree with gauge port Line mount manifoldNCFBLCN-IA5 — request assembly
- IA6 Sun Hydraulics Ninety degree with gauge port Line mount manifoldNCFBLCN-IA6 — request assembly
Technical features
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- Because needle valves are non-compensating devices, the fixed orifice size will regulate flow through the valve in proportion to the square root of the pressure differential across ports 1 and 2.
- A balanced adjustment mechanism allows for easy adjustment even at high pressures.
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

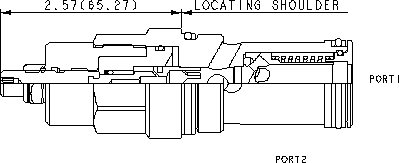

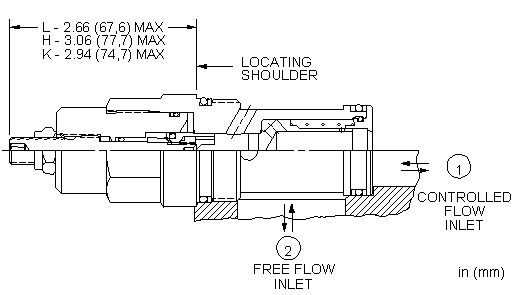

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
- 999-901-334 (PDF 344 KB)
- FloatingStyleScrewInCartridge2 (PDF 1 MB)
- TT_US_Cavity-New (PDF 522 KB)
- TT_US_check-flow1-New (PDF 537 KB)
CAD files
Frequently asked questions
Is NCFBLCN the same as NCFB-LCN?
Yes. Sun Hydraulics writes this part number as NCFBLCN. It is the model NCFB followed by the configuration code; hyphens, slashes and spaces are only dividers, so NCFBLCN, NCFB-LCN, NCFB LCN all refer to the same product.
Do you supply NCFBLCN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including NCFBLCN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What parts of the Sun cartridge valve are field serviceable?
Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
Manufacturer reference: https://www.sunhydraulics.com/model/NCFB
