LA9 – Sun Hydraulics Ninety degree with gauge port Line mount manifold
Part number: LA9 · LA9/10 · LA9/11 · LA9/V · LA9/S · LA9/S3 · LA9/S4 · LA9/S5 · LA9/Y · LA9/Y4 · LA9/Y5
Ninety degree with gauge port Line mount manifold, cavity T-18A, SAE 24 ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
LA9 overview
LA9 (LA9/10, LA9/11, LA9/V, LA9/S) is a Sun Hydraulics Sun Hydraulics Ninety degree with gauge port Line mount manifold and installed in cavity T-18A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| LA9 | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| LA9/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| LA9/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| LA9/V | Aluminium, Viton seals6061-T651 Aluminum, Viton |
| LA9/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| LA9/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| LA9/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| LA9/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
| LA9/Y | Ductile iron, dewatering-oil finish, Viton seals65-45-12 Ductile Iron, Viton, Dewatering Oil |
| LA9/Y4 | Ductile iron, black oxide finish, Viton seals65-45-12 Ductile Iron, Viton, Chem. Black |
| LA9/Y5 | Electroless nickel plated ductile iron, Viton seals65-45-12 Ductile Iron, Viton, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Interface | None |
| Body Features | Ninety degree with gauge port |
| Mounting Hole Diameter | .41 in. (10,4 mm) |
| Mounting Hole Depth | Through |
| Mounting Hole Quantity | 1 |
| Open Cavities | 1 |
| Cavity | T-18A |
| Port Size | SAE 24 |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read LA9
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so LA9, LA9/10, LA9/11, LA9/V, LA9/S, LA9/S3, LA9/S4, LA9/S5, LA9/Y, LA9/Y4, LA9/Y5 are the same part.
| Model | LA9 — Sun Hydraulics Ninety degree with gauge port Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. LA9/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /V — 6061-T651 Aluminum, Viton
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
- /Y — 65-45-12 Ductile Iron, Viton, Dewatering Oil
- /Y4 — 65-45-12 Ductile Iron, Viton, Chem. Black
- /Y5 — 65-45-12 Ductile Iron, Viton, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-18A (29)
- CNICXCN Sun Hydraulics Fixed-orifice, non-pressure compensated, flow control valve with reverse flow checkCNICXCN-LA9 — request assembly
- CNJCXCN Sun Hydraulics Free flow nose to side check valve with bypass orificeCNJCXCN-LA9 — request assembly
- CXIDXCN Sun Hydraulics Free flow side to nose check valveCXIDXCN-LA9 — request assembly
- CXJAXCN Sun Hydraulics Free flow nose to side check valveCXJAXCN-LA9 — request assembly
- DFFAXCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve – flow 1-2DFFAXCN-LA9 — request assembly
- DFFA8DN Sun Hydraulics 2-way, poppet directional valve with integral T-8A control cavity – control 1-2DFFA8DN-LA9 — request assembly
- DFFBXCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve – flow 2-1DFFBXCN-LA9 — request assembly
- DFFIXCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve – flow 1-2 (740 Series)DFFIXCN-LA9 — request assembly
- DFFJXCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve – flow 2-1 (740 Series)DFFJXCN-LA9 — request assembly
- FCFBXAN Sun Hydraulics Fixed-orifice pressure compensated flow control valve with reverse flow checkFCFBXAN-LA9 — request assembly
- FDFALAN Sun Hydraulics Fully adjustable pressure compensated flow control valve with reverse flow checkFDFALAN-LA9 — request assembly
- FLJAXDN Sun Hydraulics FilterFLJAXDN-LA9 — request assembly
Ports
Modifiers Ports LA9, /10, /11, /S, /S3, /V, /Y Ports 1 & 2: SAE 24; Port G: SAE 6;

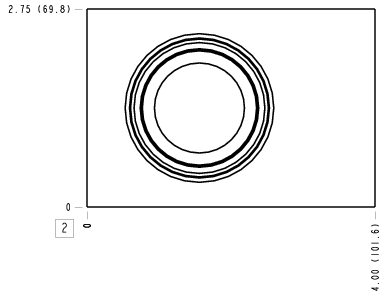

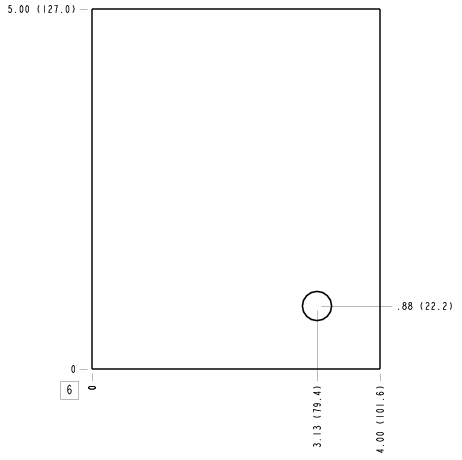

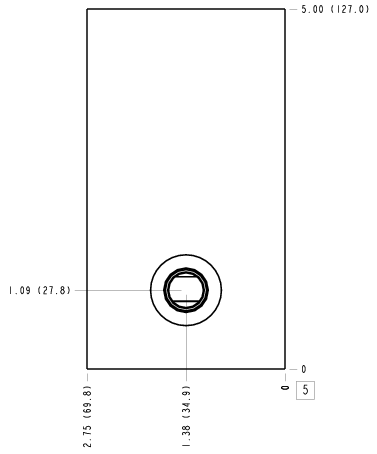

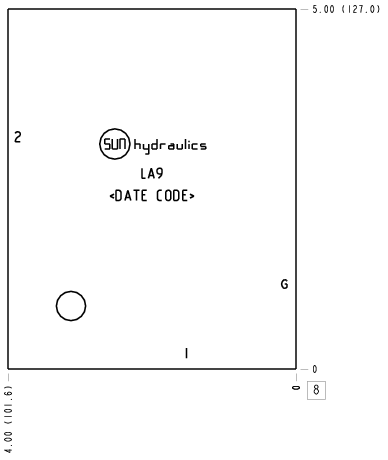

Drawings, symbol & performance curves
Downloads
Datasheet
CAD files (from Sun Hydraulics)
Frequently asked questions
Is LA9 the same as LA9/10?
Yes. Sun Hydraulics writes this part number as LA9. It is the model LA9 followed by the configuration code; hyphens, slashes and spaces are only dividers, so LA9, LA9/10, LA9/11, LA9/V, LA9/S, LA9/S3, LA9/S4, LA9/S5, LA9/Y, LA9/Y4, LA9/Y5 all refer to the same product.
Do you supply LA9 in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including LA9, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
Manufacturer reference: https://www.sunhydraulics.com/model/LA9
