NCCD-LAN – Sun Hydraulics Fully adjustable needle valve with reverse flow check
Part number: NCCDLAN · NCCD-LAN · NCCD LAN
Fully adjustable needle valve with reverse flow check. Cavity T-13A, capacity 1 gpm (.06 inch) (4 L/min. (1,5 mm)). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
NCCD-LAN overview
NCCDLAN (NCCD-LAN, NCCD LAN) is a Sun Hydraulics Sun Hydraulics Fully adjustable needle valve with reverse flow check, rated 1 gpm (.06 inch) (4 L/min. (1,5 mm)) and installed in cavity T-13A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| NCCDLAN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| NCCDLAN/LH | Mild Steel, Zinc-NickelMild Steel, Zinc-Nickel |
| NCCDLAN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-13A |
|---|---|
| Series | 1 |
| Capacity | 1 gpm (.06 inch) (4 L/min. (1,5 mm)) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min. (0,3 cc/min.) |
| Adjustment - No. of CCW Turns from Fully Closed to Fully Open | 5 |
| Valve Hex Size | 7/8 in. (22,2 mm) |
| Valve Installation Torque | 30 - 35 lbf ft (41 - 47 Nm) |
| Adjustment Screw Internal Hex Size | 5/32 in. (4 mm) |
| Locknut Hex Size | 9/16 in. (15 mm) |
| Locknut Torque | 80 - 90 lbf in. (9 - 10 Nm) |
| Model Weight | .30 lb (0,15 kg) |
| Seal kit - Cartridge | Viton: 990010006 |
For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
How to read NCCDLAN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so NCCDLAN, NCCD-LAN, NCCD LAN are the same part.
| Model | NCCD — Sun Hydraulics Fully adjustable needle valve with reverse flow check |
|---|---|
| Control | L — Standard Screw Adjustment |
| Reverse Flow Check | A — 4 psi (0,3 bar) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- H — Calibrated Handknob with Detent Lock
- K — Handknob
- L — Standard Screw Adjustment
- O — Handknob with Panel Mount
- R — Capped Screw Adjustment
- Y — Tri-Grip Handknob
Reverse Flow Check options
- A — 4 psi (0,3 bar)
- B — 15 psi (1 bar)
- C — 30 psi (2 bar)
- D — 50 psi (3,5 bar)
- E — 75 psi (5 bar)
Seal Material options
- L — Extended Temp. Buna
- N — Buna-N
- V — Viton
- E — EPDM
Material/coating options
- /AP — Stainless Steel, Passivated
- /LH — Mild Steel, Zinc-Nickel
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-13A (155)
- A3C Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldNCCDLAN-A3C — request assembly
- A3D Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldNCCDLAN-A3D — request assembly
- A3K Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldNCCDLAN-A3K — request assembly
- A3L Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldNCCDLAN-A3L — request assembly
- A3V Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldNCCDLAN-A3V — request assembly
- A3W Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldNCCDLAN-A3W — request assembly
- A4A Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldNCCDLAN-A4A — request assembly
- A4B Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldNCCDLAN-A4B — request assembly
- A4H Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldNCCDLAN-A4H — request assembly
- A4I Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldNCCDLAN-A4I — request assembly
- A4J Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldNCCDLAN-A4J — request assembly
- A4T Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldNCCDLAN-A4T — request assembly
Technical features
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- Because needle valves are non-compensating devices, the fixed orifice size will regulate flow through the valve in proportion to the square root of the pressure differential across ports 1 and 2.
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.

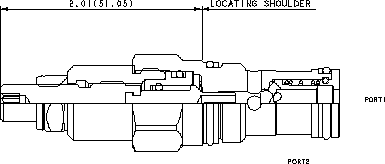

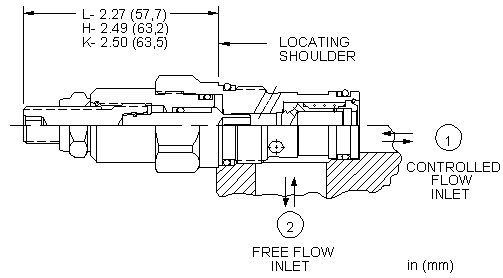

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
- 999-901-334 (PDF 344 KB)
- FloatingStyleScrewInCartridge2 (PDF 1 MB)
- TT_US_Cavity-New (PDF 522 KB)
- TT_US_check-flow1-New (PDF 537 KB)
CAD files
Frequently asked questions
Is NCCDLAN the same as NCCD-LAN?
Yes. Sun Hydraulics writes this part number as NCCDLAN. It is the model NCCD followed by the configuration code; hyphens, slashes and spaces are only dividers, so NCCDLAN, NCCD-LAN, NCCD LAN all refer to the same product.
Do you supply NCCDLAN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including NCCDLAN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What parts of the Sun cartridge valve are field serviceable?
