NCFC-LCN – Sun Hydraulics Fully adjustable needle valve with reverse flow check

Q: Is NCFCLCN the same as NCFC-LCN?

Yes. Sun Hydraulics writes this part number as NCFCLCN. It is the model NCFC followed by the configuration code; hyphens, slashes and spaces are only dividers, so NCFCLCN, NCFC-LCN, NCFC LCN all refer to the same product.

Brand: Sun Hydraulics
SKU: NCFC

NCFC-LCN Sun Hydraulics Needle Valve – installation dimensions drawing, cavity T-16A

Roll over image to zoom in

Part number: NCFCLCN · NCFC-LCN · NCFC LCN

Brand Sun HydraulicsType NeedleCapacity 15 gpm (.28 inch) (60 L/min. (7,1 mm))Cavity T-16A

Fully adjustable needle valve with reverse flow check. Cavity T-16A, capacity 15 gpm (.28 inch) (60 L/min. (7,1 mm)). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.

SKU: NCFC Category: Needle Brand: Sun Hydraulics

NCFC-LCN overview

NCFCLCN (NCFC-LCN, NCFC LCN) is a Sun Hydraulics Sun Hydraulics Fully adjustable needle valve with reverse flow check, rated 15 gpm (.28 inch) (60 L/min. (7,1 mm)) and installed in cavity T-16A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.

Ordering codes

Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.

NCFCLCN/AP	Stainless Steel, PassivatedStainless Steel, Passivated
NCFCLCN/LH	Mild Steel, Zinc-NickelMild Steel, Zinc-Nickel
NCFCLCN	Standard Material/CoatingStandard Material/Coating

Specifications

Cavity	T-16A
Series	3
Capacity	15 gpm (.28 inch) (60 L/min. (7,1 mm))
Maximum Operating Pressure	5000 psi (350 bar)
Maximum Valve Leakage at 110 SUS (24 cSt)	5 drops/min. (0,3 cc/min.)
Adjustment - No. of CCW Turns from Fully Closed to Fully Open	5
Valve Hex Size	1 1/4 in. (31,8 mm)
Valve Installation Torque	150 - 160 lbf ft (203 - 217 Nm)
Adjustment Screw Internal Hex Size	5/32 in. (4 mm)
Locknut Hex Size	9/16 in. (15 mm)
Locknut Torque	80 - 90 lbf in. (9 - 10 Nm)
Model Weight	1.30 lb (0,60 kg)
Seal kit - Cartridge	Viton: 990016006

How to read NCFCLCN

Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so NCFCLCN, NCFC-LCN, NCFC LCN are the same part.

Model	NCFC — Sun Hydraulics Fully adjustable needle valve with reverse flow check
Control	L — Standard Screw Adjustment
Reverse Flow Check	C — 30 psi (2 bar)
Seal Material	N — Buna-N
Material / coating	Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish.

Control options

L — Standard Screw Adjustment
H — Calibrated Handknob with Detent Lock
K — Handknob
Y — Tri-Grip Handknob

Reverse Flow Check options

C — 30 psi (2 bar)
A — 4 psi (0,3 bar)
E — 75 psi (5 bar)
B — 15 psi (1 bar)
D — 50 psi (3,5 bar)

Seal Material options

N — Buna-N
V — Viton
E — EPDM

Material/coating options

/AP — Stainless Steel, Passivated
/LH — Mild Steel, Zinc-Nickel
— Standard Material/Coating

Manifold & standard assemblies

Sun manifolds for cavity T-16A (161)

View all 161 →

Technical features

All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
Because needle valves are non-compensating devices, the fixed orifice size will regulate flow through the valve in proportion to the square root of the pressure differential across ports 1 and 2.
A balanced adjustment mechanism allows for easy adjustment even at high pressures.
The sharp-edged orifice design minimizes flow variations due to viscosity changes.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Drawings, symbol & performance curves

hydraulic schematic symbol

NCFC-LCN Sun Hydraulics Needle Valve – performance curve (pressure drop vs flow) — performance curve (pressure drop vs flow)

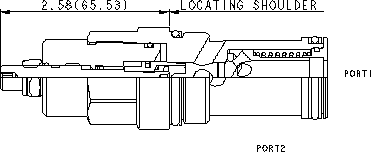

NCFCLCN Sun Hydraulics Needle Valve – 2D outline drawing — 2D outline drawing

Downloads

Datasheet

Full Datasheet (NCFC-NCFCLCN) (PDF 49 KB)

Technical reference sheets

CAD files

Frequently asked questions

Is NCFCLCN the same as NCFC-LCN?

Yes. Sun Hydraulics writes this part number as NCFCLCN. It is the model NCFC followed by the configuration code; hyphens, slashes and spaces are only dividers, so NCFCLCN, NCFC-LCN, NCFC LCN all refer to the same product.

Do you supply NCFCLCN in the UAE, GCC and India?

Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including NCFCLCN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.

Can I get the datasheet and CAD files?

Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.

How big is a drop of hydraulic oil?

There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

What parts of the Sun cartridge valve are field serviceable?

Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
