MNJ – Sun Hydraulics Ninety degree Line mount manifold
Part number: MNJ · MNJ/10 · MNJ/11 · MNJ/S · MNJ/S3 · MNJ/S4 · MNJ/S5
Ninety degree Line mount manifold, cavity T-31A, SAE 8 ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
MNJ overview
MNJ (MNJ/10, MNJ/11, MNJ/S, MNJ/S3) is a Sun Hydraulics Sun Hydraulics Ninety degree Line mount manifold and installed in cavity T-31A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| MNJ | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| MNJ/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| MNJ/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| MNJ/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| MNJ/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| MNJ/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| MNJ/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Interface | None |
| Body Features | Ninety degree |
| Mounting Hole Diameter | .34 in. (8.6 mm) |
| Mounting Hole Depth | Through |
| Mounting Hole Quantity | 2 |
| Open Cavities | 1 |
| Cavity | T-31A |
| Port Size | SAE 8 |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read MNJ
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so MNJ, MNJ/10, MNJ/11, MNJ/S, MNJ/S3, MNJ/S4, MNJ/S5 are the same part.
| Model | MNJ — Sun Hydraulics Ninety degree Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. MNJ/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-31A (27)
- DNCAXXN Sun Hydraulics 4-way, 2-position, solenoid-operated directional spool valve with closed transitionDNCAXXN-MNJ — request assembly
- DNCAZXN224 Sun Hydraulics 4-way, 2-position, solenoid-operated directional spool valve with closed transition and position switchDNCAZXN224-MNJ — request assembly
- DNDAXNN Sun Hydraulics 4-way, 2-position, solenoid-operated directional spool valveDNDAXNN-MNJ — request assembly
- DNDASNN Sun Hydraulics 4-way, 2-position, soft shift, solenoid-operated directional spool valveDNDASNN-MNJ — request assembly
- DNDCXCN Sun Hydraulics 4-way, 3-position, solenoid-operated directional spool valveDNDCXCN-MNJ — request assembly
- DNDFXCN Sun Hydraulics 4-way, 2-position, solenoid-operated directional spool valve (740 Series)DNDFXCN-MNJ — request assembly
- DNDMLNN Sun Hydraulics 4-way, manually operated, directional spool valveDNDMLNN-MNJ — request assembly
- DNDUXCN Sun Hydraulics 4-way, 2-position, solenoid-operated directional blocking valve (740 Series)DNDUXCN-MNJ — request assembly
- DSCHXHN Sun Hydraulics Low side, 3-position, hot oil shuttle valveDSCHXHN-MNJ — request assembly
- DSCLXGN Sun Hydraulics Direct-acting, low side, 3-position, shuttle valveDSCLXGN-MNJ — request assembly
- DSCOXEN Sun Hydraulics Spring offset, 2-position, high side shuttle valveDSCOXEN-MNJ — request assembly
- DSCSXGN Sun Hydraulics High side, 3-position, shuttle valveDSCSXGN-MNJ — request assembly
Ports
Modifiers Ports MNJ, /10, /11 All Ports: SAE 8;

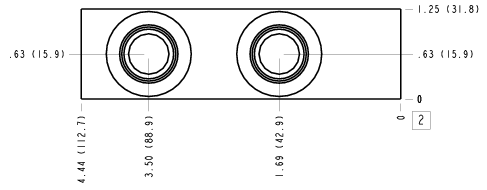

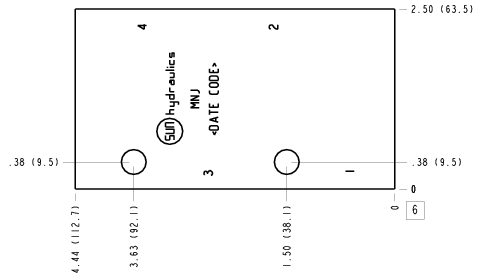

Drawings, symbol & performance curves
