DSCH-XHN – Sun Hydraulics Low side, 3-position, hot oil shuttle valve
Part number: DSCHXHN · DSCH-XHN · DSCH XHN
Low side, 3-position, hot oil shuttle valve. Cavity T-31A, capacity 10 gpm (40 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
DSCH-XHN overview
DSCHXHN (DSCH-XHN, DSCH XHN) is a Sun Hydraulics Sun Hydraulics Low side, 3-position, hot oil shuttle valve, rated 10 gpm (40 L/min.) and installed in cavity T-31A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| DSCHXHN/LH | Mild Steel, Zinc-NickelMild Steel, Zinc-Nickel |
|---|---|
| DSCHXHN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-31A |
|---|---|
| Series | 1 |
| Capacity | 10 gpm (40 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Pilot Flow | 23 in³/min. (0,38 L/min.) |
| Valve Hex Size | 7/8 in. (22,2 mm) |
| Valve Installation Torque | 30 - 35 lbf ft (41 - 47 Nm) |
| Model Weight | .40 lb (0,20 kg) |
| Seal kit - Cartridge | Viton: 990031006 |
How to read DSCHXHN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so DSCHXHN, DSCH-XHN, DSCH XHN are the same part.
| Model | DSCH — Sun Hydraulics Low side, 3-position, hot oil shuttle valve |
|---|---|
| Control | X — Not Adjustable |
| Shifting Pressure | H — 200 psi (14 bar) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- X — Not Adjustable
Shifting Pressure options
- G — 150 psi (10,5 bar)
- H — 200 psi (14 bar)
- E — 75 psi (5 bar)
Seal Material options
- N — Buna-N
- V — Viton
Material/coating options
- /LH — Mild Steel, Zinc-Nickel
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-31A (49)
- C7A Sun Hydraulics Ninety degree Line mount manifoldDSCHXHN-C7A — request assembly
- C7B Sun Hydraulics Ninety degree Line mount manifoldDSCHXHN-C7B — request assembly
- C7C Sun Hydraulics Ninety degree Line mount manifoldDSCHXHN-C7C — request assembly
- C7I Sun Hydraulics Ninety degree Line mount manifoldDSCHXHN-C7I — request assembly
- C7J Sun Hydraulics Ninety degree Line mount manifoldDSCHXHN-C7J — request assembly
- C7K Sun Hydraulics Ninety degree Line mount manifoldDSCHXHN-C7K — request assembly
- C7T Sun Hydraulics Ninety degree Line mount manifoldDSCHXHN-C7T — request assembly
- C7U Sun Hydraulics Ninety degree Line mount manifoldDSCHXHN-C7U — request assembly
- C7V Sun Hydraulics Ninety degree Line mount manifoldDSCHXHN-C7V — request assembly
- C8A Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldDSCHXHN-C8A — request assembly
- C8B Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldDSCHXHN-C8B — request assembly
- C8C Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldDSCHXHN-C8C — request assembly
Technical features
- The spool incorporates a hydraulic stop that eliminates mechanical impact and therefore the potential for internal damage.
- The hydraulic stop results in a small pilot flow from the high side work port (port 2 or 4) to the common port (port 3).
- A unique feature due to the hydraulic stop is that the hot oil relief setting can be confirmed with the transmission in neutral.
- NOTE: Low shift values can potentially result in charge pump pressure alone inadvertently shifting the valve. Use care when selecting shift pressure.

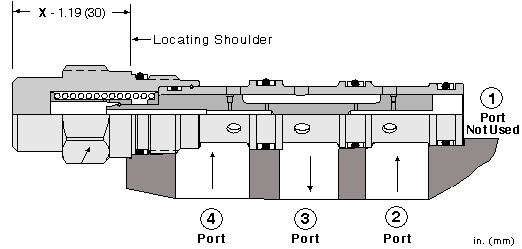

- Although this valve goes into a 4-port cavity, the nose (port 1) is not used.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
- 999-901-334 (PDF 344 KB)
- FloatingStyleScrewInCartridge2 (PDF 1 MB)
- TT_US_Cavity-New (PDF 522 KB)
- TT_US_Shuttles-New (PDF 500 KB)
CAD files
Frequently asked questions
Is DSCHXHN the same as DSCH-XHN?
Yes. Sun Hydraulics writes this part number as DSCHXHN. It is the model DSCH followed by the configuration code; hyphens, slashes and spaces are only dividers, so DSCHXHN, DSCH-XHN, DSCH XHN all refer to the same product.
Do you supply DSCHXHN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including DSCHXHN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
What parts of the Sun cartridge valve are field serviceable?
Manufacturer reference: https://www.sunhydraulics.com/model/DSCH
