DSCS-XGN – Sun Hydraulics High side, 3-position, shuttle valve
Roll over image to zoom in
Part number: DSCSXGN · DSCS-XGN · DSCS XGN
High side, 3-position, shuttle valve. Cavity T-31A, capacity 15 gpm (60 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
DSCS-XGN overview
DSCSXGN (DSCS-XGN, DSCS XGN) is a Sun Hydraulics Sun Hydraulics High side, 3-position, shuttle valve, rated 15 gpm (60 L/min.) and installed in cavity T-31A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| DSCSXGN | Buna-N sealsBuna-N |
|---|---|
| DSCSXGV | Viton sealsViton |
Specifications
| Cavity | T-31A |
|---|---|
| Series | 1 |
| Capacity | 15 gpm (60 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi (30 cc/min.@70 bar) |
| Valve Hex Size | 7/8 in. (22,2 mm) |
| Valve Installation Torque | 30 - 35 lbf ft (41 - 47 Nm) |
| Model Weight | .40 lb (0,20 kg) |
| Seal kit - Cartridge | Viton: 990031006 |
How to read DSCSXGN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so DSCSXGN, DSCS-XGN, DSCS XGN are the same part.
| Model | DSCS — Sun Hydraulics High side, 3-position, shuttle valve |
|---|---|
| Control | X — Not Adjustable |
| Shifting Pressure | G — 150 psi (10,5 bar) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- X — Not Adjustable
Shifting Pressure options
- C — 30 psi (2 bar)
- E — 75 psi (5 bar)
- F — 100 psi (7 bar)
- G — 150 psi (10,5 bar)
Seal Material options
- N — Buna-N
- V — Viton
Manifold & standard assemblies
Sun manifolds for cavity T-31A (49)
- C7A Sun Hydraulics Ninety degree Line mount manifoldDSCSXGN-C7A — request assembly
- C7B Sun Hydraulics Ninety degree Line mount manifoldDSCSXGN-C7B — request assembly
- C7C Sun Hydraulics Ninety degree Line mount manifoldDSCSXGN-C7C — request assembly
- C7I Sun Hydraulics Ninety degree Line mount manifoldDSCSXGN-C7I — request assembly
- C7J Sun Hydraulics Ninety degree Line mount manifoldDSCSXGN-C7J — request assembly
- C7K Sun Hydraulics Ninety degree Line mount manifoldDSCSXGN-C7K — request assembly
- C7T Sun Hydraulics Ninety degree Line mount manifoldDSCSXGN-C7T — request assembly
- C7U Sun Hydraulics Ninety degree Line mount manifoldDSCSXGN-C7U — request assembly
- C7V Sun Hydraulics Ninety degree Line mount manifoldDSCSXGN-C7V — request assembly
- C8A Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldDSCSXGN-C8A — request assembly
- C8B Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldDSCSXGN-C8B — request assembly
- C8C Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldDSCSXGN-C8C — request assembly
Technical features
- This valve provides overrunning load control in regeneration applications where the load tends to extend the cylinder. Because there is spool leakage, it does not prevent drift.
- Hardened spool/sleeve construction provides excellent wear characteristics and minimizes cross leakage.
- Although this valve goes into a 4-port cavity, the nose (port 1) is not used.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

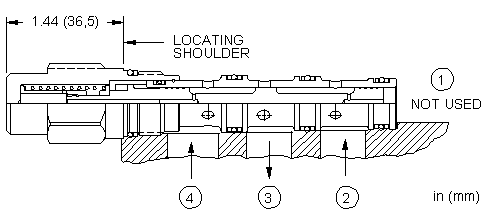

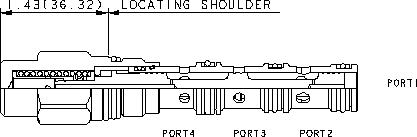

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
- 999-901-334 (PDF 344 KB)
- FloatingStyleScrewInCartridge2 (PDF 1 MB)
- TT_US_Cavity-New (PDF 522 KB)
- TT_US_Shuttles-New (PDF 500 KB)
CAD files
Frequently asked questions
Is DSCSXGN the same as DSCS-XGN?
Yes. Sun Hydraulics writes this part number as DSCSXGN. It is the model DSCS followed by the configuration code; hyphens, slashes and spaces are only dividers, so DSCSXGN, DSCS-XGN, DSCS XGN all refer to the same product.
Do you supply DSCSXGN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including DSCSXGN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What parts of the Sun cartridge valve are field serviceable?
Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
Manufacturer reference: https://www.sunhydraulics.com/model/DSCS
