IEQ – Sun Hydraulics Through port with gauge port Line mount manifold
Part number: IEQ · IEQ/10 · IEQ/11 · IEQ/1A · IEQ/1B · IEQ/M · IEQ/S · IEQ/S3 · IEQ/S4 · IEQ/S5 · IEQ/T · IEQ/T3 · IEQ/T4 · IEQ/T5
Through port with gauge port Line mount manifold, cavity T-16A, 1 1/4″ Code 61 ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
IEQ overview
IEQ (IEQ/10, IEQ/11, IEQ/1A, IEQ/1B) is a Sun Hydraulics Sun Hydraulics Through port with gauge port Line mount manifold and installed in cavity T-16A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| IEQ | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| IEQ/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| IEQ/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| IEQ/1A | Aluminium, Metric, black anodized, Buna-N seals6061-T651 Aluminum, Metric, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| IEQ/1B | Aluminium, Metric, clear anodized, Buna-N seals6061-T651 Aluminum, Metric, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| IEQ/M | Aluminium, Metric, Buna-N seals6061-T651 Aluminum, Metric, Buna-N |
| IEQ/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| IEQ/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| IEQ/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| IEQ/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
| IEQ/T | Ductile iron, Metric, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Dewatering Oil |
| IEQ/T3 | Ductile iron, Metric, clear zinc plated, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Trivalent Clear Zinc with Top Sealer |
| IEQ/T4 | Ductile iron, Metric, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Chem. Black |
| IEQ/T5 | Ductile iron, Metric, electroless nickel plated, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Interface | None |
| Body Features | Through port with gauge port |
| Mounting Hole Thread | M10x1.5 - 6H (metric models) (M10x1.5 - 6H (metric models)) |
| Mounting Hole Depth | .62 in. (15,7 mm) |
| Mounting Hole Quantity | 2 |
| Open Cavities | 1 |
| Cavity | T-16A |
| Port Size | 1 1/4" Code 61 |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read IEQ
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so IEQ, IEQ/10, IEQ/11, IEQ/1A, IEQ/1B, IEQ/M, IEQ/S, IEQ/S3, IEQ/S4, IEQ/S5, IEQ/T, IEQ/T3, IEQ/T4, IEQ/T5 are the same part.
| Model | IEQ — Sun Hydraulics Through port with gauge port Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. IEQ/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /1A — 6061-T651 Aluminum, Metric, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /1B — 6061-T651 Aluminum, Metric, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /M — 6061-T651 Aluminum, Metric, Buna-N
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
- /T — 65-45-12 Ductile Iron, Metric, Buna-N, Dewatering Oil
- /T3 — 65-45-12 Ductile Iron, Metric, Buna-N, Trivalent Clear Zinc with Top Sealer
- /T4 — 65-45-12 Ductile Iron, Metric, Buna-N, Chem. Black
- /T5 — 65-45-12 Ductile Iron, Metric, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-16A (38)
- CNGCXCN Sun Hydraulics Fixed-orifice, non-pressure compensated, flow control valve with reverse flow checkCNGCXCN-IEQ — request assembly
- CNHCXCN Sun Hydraulics Free flow nose to side check valve with bypass orificeCNHCXCN-IEQ — request assembly
- CXGDXCN Sun Hydraulics Free flow side to nose check valveCXGDXCN-IEQ — request assembly
- CXHAXCN Sun Hydraulics Free flow nose to side check valveCXHAXCN-IEQ — request assembly
- CXHHZCN Sun Hydraulics Free flow nose to side check valve with position switchCXHHZCN-IEQ — request assembly
- DFEAXCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve – flow 1-2DFEAXCN-IEQ — request assembly
- DFEA8DN Sun Hydraulics 2-way, poppet directional valve with integral T-8A control cavity – control 1-2DFEA8DN-IEQ — request assembly
- DFEBXCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve – flow 2-1DFEBXCN-IEQ — request assembly
- DFEB8DN Sun Hydraulics 2-way, poppet directional valve with integral T-8A control cavity – control 2-1DFEB8DN-IEQ — request assembly
- DFEIXCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve – flow 1-2 (740 Series)DFEIXCN-IEQ — request assembly
- DFEJXCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve – flow 2-1 (740 Series)DFEJXCN-IEQ — request assembly
- EVECXXV Sun Hydraulics 2-port energy harvester valveEVECXXV-IEQ — request assembly
Ports
Modifiers Ports IEQ, /10, /11 Ports 1 & 2: 1 1/4" Code 61; Gage Port: 1/4" NPTF; IEQ/1A, /1B, /M Ports 1 & 2: 1 1/4" Code 61; Gage Port: 1/4" BSPP;

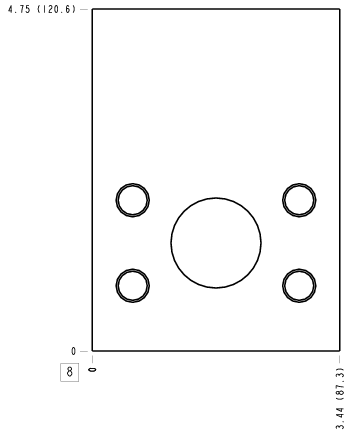

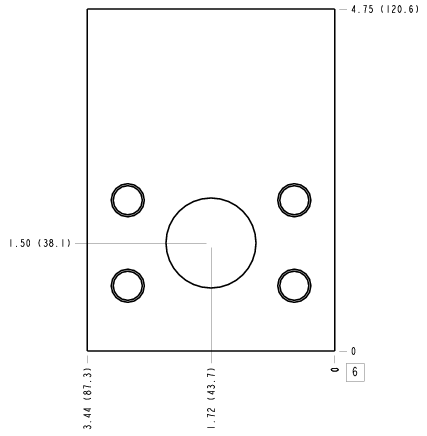

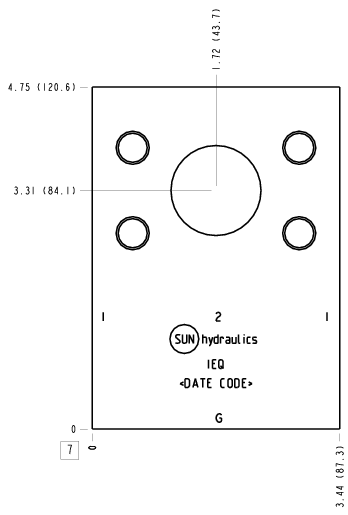

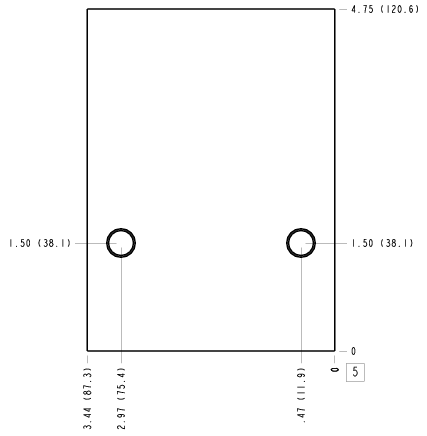

Drawings, symbol & performance curves
Downloads
CAD files (from Sun Hydraulics)
Frequently asked questions
Is IEQ the same as IEQ/10?
Yes. Sun Hydraulics writes this part number as IEQ. It is the model IEQ followed by the configuration code; hyphens, slashes and spaces are only dividers, so IEQ, IEQ/10, IEQ/11, IEQ/1A, IEQ/1B, IEQ/M, IEQ/S, IEQ/S3, IEQ/S4, IEQ/S5, IEQ/T, IEQ/T3, IEQ/T4, IEQ/T5 all refer to the same product.
Do you supply IEQ in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including IEQ, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
Manufacturer reference: https://www.sunhydraulics.com/model/IEQ
