IAR – Sun Hydraulics Ninety degree with gauge port Line mount manifold

Q: Is IAR the same as IAR/10?

Yes. Sun Hydraulics writes this part number as IAR. It is the model IAR followed by the configuration code; hyphens, slashes and spaces are only dividers, so IAR, IAR/10, IAR/11, IAR/1A, IAR/1B, IAR/M, IAR/S, IAR/S3, IAR/S4, IAR/S5, IAR/T, IAR/T3, IAR/T4, IAR/T5 all refer to the same product.

Brand: Sun Hydraulics
SKU: IAR

IAR Sun Hydraulics Ninety degree with gauge port Line mount manifold drawing

Roll over image to zoom in

Part number: IAR · IAR/10 · IAR/11 · IAR/1A · IAR/1B · IAR/M · IAR/S · IAR/S3 · IAR/S4 · IAR/S5 · IAR/T · IAR/T3 · IAR/T4 · IAR/T5

Brand Sun HydraulicsType Line mountCavity T-16A

Ninety degree with gauge port Line mount manifold, cavity T-16A, 1 1/2 in. Code 61 ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.

Material/finish:

Clear

Quantity:

SKU: IAR Category: Line mount Brand: Sun Hydraulics

IAR overview

IAR (IAR/10, IAR/11, IAR/1A, IAR/1B) is a Sun Hydraulics Sun Hydraulics Ninety degree with gauge port Line mount manifold and installed in cavity T-16A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.

Ordering codes

Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.

IAR	Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N
IAR/10	Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
IAR/11	Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
IAR/1A	Aluminium, Metric, black anodized, Buna-N seals6061-T651 Aluminum, Metric, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
IAR/1B	Aluminium, Metric, clear anodized, Buna-N seals6061-T651 Aluminum, Metric, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
IAR/M	Aluminium, Metric, Buna-N seals6061-T651 Aluminum, Metric, Buna-N
IAR/S	Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil
IAR/S3	Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
IAR/S4	Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black
IAR/S5	Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel
IAR/T	Ductile iron, Metric, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Dewatering Oil
IAR/T3	Ductile iron, Metric, clear zinc plated, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Trivalent Clear Zinc with Top Sealer
IAR/T4	Ductile iron, Metric, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Chem. Black
IAR/T5	Ductile iron, Metric, electroless nickel plated, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Electroless Nickel

Specifications

Body Type	Line mount
Interface	None
Body Features	Ninety degree with gauge port

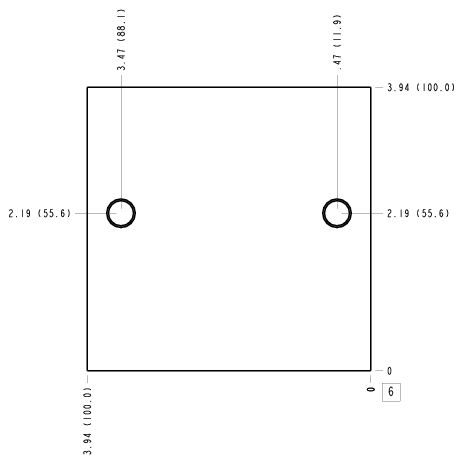

Mounting Hole Thread	M10x1.5 - 6H (metric models) (M10x1.5 - 6H (metric models))
Mounting Hole Depth	.62 in. (15,7 mm)
Mounting Hole Quantity	2
Open Cavities	1
Cavity	T-16A
Port Size	1 1/2 in. Code 61

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.

How to read IAR

Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so IAR, IAR/10, IAR/11, IAR/1A, IAR/1B, IAR/M, IAR/S, IAR/S3, IAR/S4, IAR/S5, IAR/T, IAR/T3, IAR/T4, IAR/T5 are the same part.

Model	IAR — Sun Hydraulics Ninety degree with gauge port Line mount manifold
Modifier	Add the modifier after the model, e.g. IAR/10 = black anodized aluminium. No modifier = standard material.

Modifier options

— 6061-T651 Aluminum, Buna-N
/10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
/11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
/1A — 6061-T651 Aluminum, Metric, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
/1B — 6061-T651 Aluminum, Metric, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
/M — 6061-T651 Aluminum, Metric, Buna-N
/S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
/S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
/S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
/S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
/T — 65-45-12 Ductile Iron, Metric, Buna-N, Dewatering Oil
/T3 — 65-45-12 Ductile Iron, Metric, Buna-N, Trivalent Clear Zinc with Top Sealer
/T4 — 65-45-12 Ductile Iron, Metric, Buna-N, Chem. Black
/T5 — 65-45-12 Ductile Iron, Metric, Buna-N, Electroless Nickel

Cartridges that fit this manifold

Sun cartridges for cavity T-16A (38)

View all 38 →

Ports

Modifiers Ports IAR, /10, /11 Ports 1 & 2: 1 1/2" Code 61; Gage Port: 1/4" NPTF; IAR/1A, /1B, /M Ports 1 & 2: 1 1/2" Code 61; Gage Port: 1/4" BSPP;

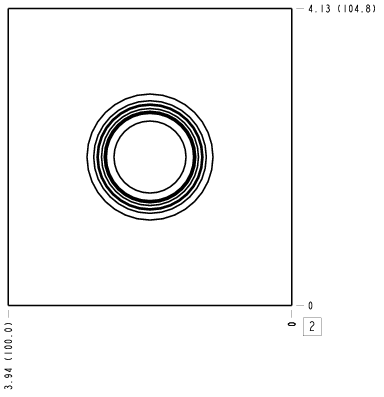

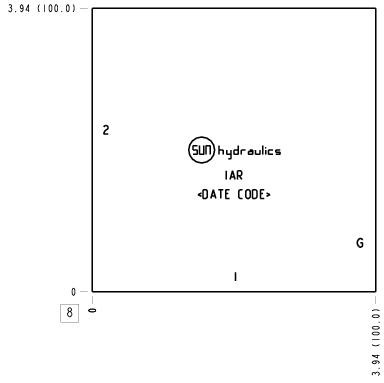

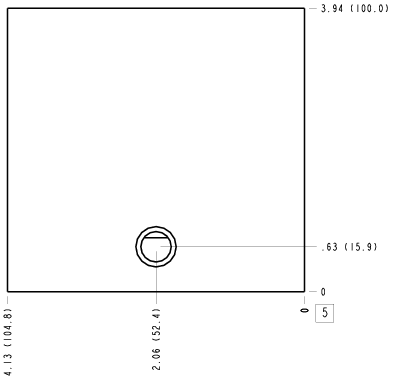

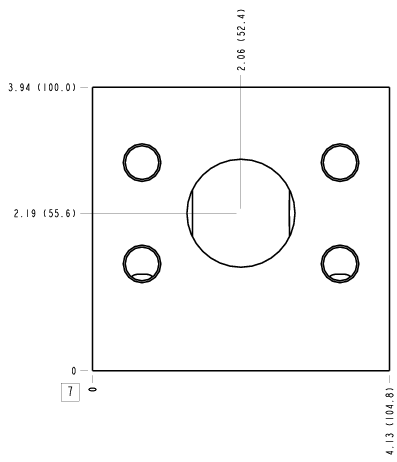

Drawings, symbol & performance curves

Downloads

Datasheet

Datasheet (IAR) (PDF 83 KB)

CAD files (from Sun Hydraulics)

Frequently asked questions

Is IAR the same as IAR/10?

Yes. Sun Hydraulics writes this part number as IAR. It is the model IAR followed by the configuration code; hyphens, slashes and spaces are only dividers, so IAR, IAR/10, IAR/11, IAR/1A, IAR/1B, IAR/M, IAR/S, IAR/S3, IAR/S4, IAR/S5, IAR/T, IAR/T3, IAR/T4, IAR/T5 all refer to the same product.

Do you supply IAR in the UAE, GCC and India?

Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including IAR, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.

Can I get the datasheet and CAD files?

Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.

Manufacturer reference: https://www.sunhydraulics.com/model/IAR
