GCT – Sun Hydraulics Inline Line mount manifold
Roll over image to zoom in
Part number: GCT · GCT/10 · GCT/11 · GCT/S · GCT/S3 · GCT/S4 · GCT/S5
Inline Line mount manifold, cavity T-13A, 1/4″ BSPP ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
GCT overview
GCT (GCT/10, GCT/11, GCT/S, GCT/S3) is a Sun Hydraulics Sun Hydraulics Inline Line mount manifold and installed in cavity T-13A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| GCT | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| GCT/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| GCT/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| GCT/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| GCT/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| GCT/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| GCT/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Interface | None |
| Body Features | Inline |
| Mounting Hole Diameter | .33 in. (8,4 mm) |
| Mounting Hole Depth | Through |
| Mounting Hole Quantity | 1 |
| Open Cavities | 1 |
| Cavity | T-13A |
| Port Size | 1/4" BSPP |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read GCT
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so GCT, GCT/10, GCT/11, GCT/S, GCT/S3, GCT/S4, GCT/S5 are the same part.
| Model | GCT — Sun Hydraulics Inline Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. GCT/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-13A (45)
- CDAABBN Sun Hydraulics Back-to-back check/shuttle valve with signal externalCDAABBN-GCT — request assembly
- CDACBBN Sun Hydraulics Back-to-back check/shuttle valve with signal at port 2CDACBBN-GCT — request assembly
- CNCCXCN Sun Hydraulics Fixed-orifice, non-pressure compensated, flow control valve with reverse flow checkCNCCXCN-GCT — request assembly
- CNDCXCN Sun Hydraulics Free flow nose to side check valve with bypass orificeCNDCXCN-GCT — request assembly
- CSAAEXN Sun Hydraulics Single ball shuttle valve with signal externalCSAAEXN-GCT — request assembly
- CSACBXN Sun Hydraulics Single ball shuttle valve with signal at port 2CSACBXN-GCT — request assembly
- CXCDXCN Sun Hydraulics Free flow side to nose check valveCXCDXCN-GCT — request assembly
- CXDAXAN Sun Hydraulics Free flow nose to side check valveCXDAXAN-GCT — request assembly
- DACCMCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valveDACCMCN-GCT — request assembly
- DFCAXCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve – flow 1-2DFCAXCN-GCT — request assembly
- DFCA8DN Sun Hydraulics 2-way, poppet directional valve with integral T-8A control cavity – control 1-2DFCA8DN-GCT — request assembly
- DFCBXCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve – flow 2-1DFCBXCN-GCT — request assembly
Ports
Modifiers Ports GCT, /10, /11 All Ports: 1/4" BSPP;

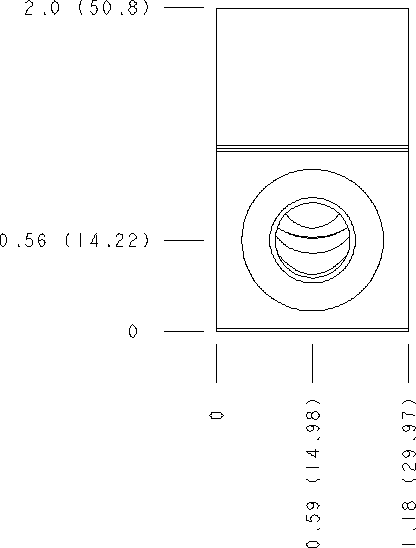

Drawings, symbol & performance curves
Downloads
CAD files (from Sun Hydraulics)
Frequently asked questions
Is GCT the same as GCT/10?
Yes. Sun Hydraulics writes this part number as GCT. It is the model GCT followed by the configuration code; hyphens, slashes and spaces are only dividers, so GCT, GCT/10, GCT/11, GCT/S, GCT/S3, GCT/S4, GCT/S5 all refer to the same product.
Do you supply GCT in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including GCT, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
Manufacturer reference: https://www.sunhydraulics.com/model/GCT
