CDAA-BBN – Sun Hydraulics Back-to-back check/shuttle valve with signal external
Roll over image to zoom in
Part number: CDAABBN · CDAA-BBN · CDAA BBN
Back-to-back check/shuttle valve with signal external. Cavity T-13A, capacity 2.5 gpm (10 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
CDAA-BBN overview
CDAABBN (CDAA-BBN, CDAA BBN) is a Sun Hydraulics Sun Hydraulics Back-to-back check/shuttle valve with signal external, rated 2.5 gpm (10 L/min.) and installed in cavity T-13A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| CDAABBN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| CDAABBN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-13A |
|---|---|
| Series | 1 |
| Capacity | 2.5 gpm (10 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min. (0,3 cc/min.) |
| Valve Hex Size | 7/8 in. (22,2 mm) |
| Valve Installation Torque | 30 - 35 lbf ft (41 - 47 Nm) |
| Model Weight | .30 lb (0,15 kg) |
| Seal kit - Cartridge | Viton: 990010006 |
How to read CDAABBN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so CDAABBN, CDAA-BBN, CDAA BBN are the same part.
| Model | CDAA — Sun Hydraulics Back-to-back check/shuttle valve with signal external |
|---|---|
| Control | B — External 1/4 BSPP Port |
| Cracking Pressure | B — 15 psi (1 bar) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- B — External 1/4 BSPP Port
- E — External 4-SAE Port
Cracking Pressure options
- B — 15 psi (1 bar)
Seal Material options
- N — Buna-N
- V — Viton
Material/coating options
- /AP — Stainless Steel, Passivated
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-13A (155)
- A3C Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldCDAABBN-A3C — request assembly
- A3D Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldCDAABBN-A3D — request assembly
- A3K Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldCDAABBN-A3K — request assembly
- A3L Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldCDAABBN-A3L — request assembly
- A3V Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldCDAABBN-A3V — request assembly
- A3W Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldCDAABBN-A3W — request assembly
- A4A Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldCDAABBN-A4A — request assembly
- A4B Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldCDAABBN-A4B — request assembly
- A4H Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldCDAABBN-A4H — request assembly
- A4I Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldCDAABBN-A4I — request assembly
- A4J Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldCDAABBN-A4J — request assembly
- A4T Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldCDAABBN-A4T — request assembly
Technical features
- Back-to-back check cartridges feature hardened, spherically lapped, guided poppets and a lightly stressed helical spring that result in excellent wear characteristics and extremely low leakage rates.
- The back-to-back checks do not provide a means of lowering a signal. They will trap a high signal if the load pressures drop to a lower pressure. Some means of bleeding off the signal should be provided.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

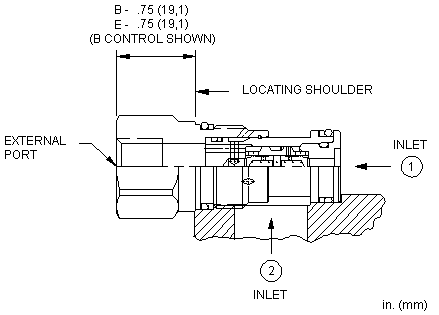

Drawings, symbol & performance curves
Downloads
Technical reference sheets
Frequently asked questions
Is CDAABBN the same as CDAA-BBN?
Yes. Sun Hydraulics writes this part number as CDAABBN. It is the model CDAA followed by the configuration code; hyphens, slashes and spaces are only dividers, so CDAABBN, CDAA-BBN, CDAA BBN all refer to the same product.
Do you supply CDAABBN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including CDAABBN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
What parts of the Sun cartridge valve are field serviceable?
Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
Manufacturer reference: https://www.sunhydraulics.com/model/CDAA
