DACC-MCN – Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve
Part number: DACCMCN · DACC-MCN · DACC MCN
2-way, 2-stage, solenoid-operated directional poppet valve. Cavity T-13A, capacity 15 gpm (60 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
DACC-MCN overview
DACCMCN (DACC-MCN, DACC MCN) is a Sun Hydraulics Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve, rated 15 gpm (60 L/min.) and installed in cavity T-13A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| DACCMCN | No coilNo coil |
|---|---|
| DACCMCN211 | DIN 43650-Form A, 115 VACDIN 43650-Form A, 115 VAC |
| DACCMCN212 | DIN 43650-Form A, 12 VDCDIN 43650-Form A, 12 VDC |
| DACCMCN223 | DIN 43650-Form A, 230 VACDIN 43650-Form A, 230 VAC |
Specifications
| Cavity | T-13A |
|---|---|
| Series | 1 |
| Capacity | 15 gpm (60 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi (0,7 cc/min.@350 bar) |
| Check Cracking Pressure | 50 psi (3,5 bar) |
| Response Time - Typical | 30 ms |
| Switching Frequency | 15,000 max. cycles/hr |
| Solenoid Tube Diameter | .56 in. (14,2 mm) |
| Valve Hex Size | 7/8 in. (22,2 mm) |
| Valve Installation Torque | 30 - 35 lbf ft (41 - 47 Nm) |
| Model Weight | .40 lb (0,20 kg) |
| Seal kit - Cartridge | Viton: 990310006 |
| Seal and nut kit - Coil | Viton: 990760006 |
Please verify cartridge clearance requirements when choosing a Sun manifold. Different valve controls and coils require different clearances. An additional 2.00 inches (50,8 mm) beyond the valve extension is needed for coil installation and removal.
How to read DACCMCN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so DACCMCN, DACC-MCN, DACC MCN are the same part.
| Model | DACC — Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve |
|---|---|
| Control | M — Manual Override |
| Spool Configuration | C — Normally Closed |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- C — Concealed Manual Override
- M — Manual Override
Spool Configuration options
- C — Normally Closed
- H — Normally Open
Seal Material options
- N — Buna-N
- V — Viton
- E — EPDM
Coil options
- — No coil
- 211 — DIN 43650-Form A, 115 VAC
- 212 — DIN 43650-Form A, 12 VDC
- 223 — DIN 43650-Form A, 230 VAC
- 224 — DIN 43650-Form A, 24 VDC
- 311 — NFPA, 115 VAC
- 323 — NFPA, 230 VAC
- 324 — NFPA, 24 VDC
Manifold & standard assemblies
Sun manifolds for cavity T-13A (155)
- A3C Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldDACCMCN-A3C — request assembly
- A3D Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldDACCMCN-A3D — request assembly
- A3K Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldDACCMCN-A3K — request assembly
- A3L Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldDACCMCN-A3L — request assembly
- A3V Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldDACCMCN-A3V — request assembly
- A3W Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldDACCMCN-A3W — request assembly
- A4A Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldDACCMCN-A4A — request assembly
- A4B Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldDACCMCN-A4B — request assembly
- A4H Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldDACCMCN-A4H — request assembly
- A4I Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldDACCMCN-A4I — request assembly
- A4J Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldDACCMCN-A4J — request assembly
- A4T Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldDACCMCN-A4T — request assembly
Technical features
- The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Valves exhibit extremely low leakage rates; less than 10 drops/min. @ 5000 psi (0,7 cc/min @ 350 bar).
- This valve utilizes a wet armature design. This means that the working fluid surrounds the armature and is exposed to the heat generated by the coil. This can be a factor if the coil is energized for long periods of time. Some fluids, notably water/glycol mixtures, break down at these temperatures over time and form varnishes that will affect the function of the cartridge.
- The solenoid's unique magnetic design results in a high efficiency solenoid, yielding high spool actuating force per Watt expended, leading to reliable valve shifting.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

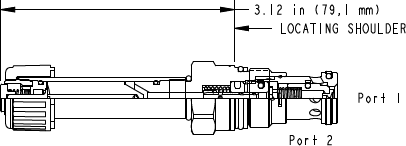

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
- 999-901-334 (PDF 344 KB)
- FloatingStyleScrewInCartridge2 (PDF 1 MB)
- TT_US_Cavity-New (PDF 522 KB)
- TT_US_Solenoid-Review1-New (PDF 1 MB)
- TT_US_coils-New (PDF 975 KB)
CAD files
Frequently asked questions
Is DACCMCN the same as DACC-MCN?
Yes. Sun Hydraulics writes this part number as DACCMCN. It is the model DACC followed by the configuration code; hyphens, slashes and spaces are only dividers, so DACCMCN, DACC-MCN, DACC MCN all refer to the same product.
Do you supply DACCMCN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including DACCMCN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
What parts of the Sun cartridge valve are field serviceable?
Manufacturer reference: https://www.sunhydraulics.com/model/DACC
