DPCP-LAN – Sun Hydraulics 3-way, pilot-operated, directional valve with drain to port 4 (1 to 2 open, 3 blocked)

Q: Is DPCPLAN the same as DPCP-LAN?

Yes. Sun Hydraulics writes this part number as DPCPLAN. It is the model DPCP followed by the configuration code; hyphens, slashes and spaces are only dividers, so DPCPLAN, DPCP-LAN, DPCP LAN all refer to the same product.

Brand: Sun Hydraulics
SKU: DPCP

DPCP-LAN Sun Hydraulics 3-way Valve – installation dimensions drawing, cavity T-22A

DPCP-LAN Sun Hydraulics 3-way Valve – hydraulic schematic symbol

Roll over image to zoom in

Part number: DPCPLAN · DPCP-LAN · DPCP LAN

Brand Sun HydraulicsType 3-wayCapacity 15 gpm (60 L/min.)Cavity T-22A

3-way, pilot-operated, directional valve with drain to port 4 (1 to 2 open, 3 blocked). Cavity T-22A, capacity 15 gpm (60 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.

SKU: DPCP Category: 3-way Brand: Sun Hydraulics

DPCP-LAN overview

DPCPLAN (DPCP-LAN, DPCP LAN) is a Sun Hydraulics Sun Hydraulics 3-way, pilot-operated, directional valve with drain to port 4 (1 to 2 open, 3 blocked), rated 15 gpm (60 L/min.) and installed in cavity T-22A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.

Ordering codes

Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.

DPCPLAN	Buna-N sealsBuna-N
DPCPLAV	Viton sealsViton
DPCPLAE	EPDM sealsEPDM

Specifications

Cavity	T-22A
Series	2
Capacity	15 gpm (60 L/min.)
Maximum Operating Pressure	5000 psi (350 bar)
Factory Pressure Settings Established at	4 gpm (15 L/min.)
Control Pilot Flow	10 - 15 in³/min. (0,16 - 0,25 L/min.)
Maximum Valve Leakage at 110 SUS (24 cSt)	1 in³/min.@1000 psi (15 cc/min.@70 bar)
Adjustment - No. of CW Turns from Min. to Max. setting	5
Valve Hex Size	1 1/8 in. (28,6 mm)
Valve Installation Torque	45 - 50 lbf ft (61 - 68 Nm)
Adjustment Screw Internal Hex Size	5/32 in. (4 mm)
Locknut Hex Size	9/16 in. (15 mm)
Locknut Torque	80 - 90 lbf in. (9 - 10 Nm)
Model Weight	.60 lb (0,30 kg)
Seal kit - Cartridge	Viton: 990022006

How to read DPCPLAN

Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so DPCPLAN, DPCP-LAN, DPCP LAN are the same part.

Model	DPCP — Sun Hydraulics 3-way, pilot-operated, directional valve with drain to port 4 (1 to 2 open, 3 blocked)
Control	L — Standard Screw Adjustment
Adjustment Range	A — 100 - 3000 psi (7 - 210 bar), 1000 psi (70 bar) Standard Setting
Seal Material	N — Buna-N
Material / coating	Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish.

Control options

C — Tamper Resistant - Factory Set
K — Handknob
L — Standard Screw Adjustment

Adjustment Range options

A — 100 - 3000 psi (7 - 210 bar), 1000 psi (70 bar) Standard Setting
B — 50 - 1500 psi (3,5 - 105 bar), 1000 psi (70 bar) Standard Setting
D — 25 - 800 psi (1,7 - 55 bar), 400 psi (28 bar) Standard Setting
E — 25 - 400 psi (1,7 - 28 bar), 200 psi (14 bar) Standard Setting
W — 150 - 4500 psi (10,5 - 315 bar), 1000 psi (70 bar) Standard Setting

Seal Material options

N — Buna-N
V — Viton
E — EPDM

Manifold & standard assemblies

Sun manifolds for cavity T-22A (70)

View all 70 →

Technical features

Port 4 can be blocked to prevent the valve from shifting.
Port 3 can be used as a work port.
Direct-acting and pilot-operated versions of these valves are interchangeable. They fit the same cavities and have the same flow paths.
Pressure at port 4 is directly additive to the setting of the valve.
This valve is not bistable; it is capable of modulating between the two positions shown.
Maximum pressure at port 3 should be limited to 3000 psi (210 bar). This is due to fatigue strength limits not hydraulic operating limits.
When pilot pressure exceeds the valve setting, pilot flow may be a consideration. See performance curves for pilot consumption vs. load pressure above the valve setting. If this is a problem, the direct acting version of this valve would be a solution.
Incorporates the Sun floating-style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Drawings, symbol & performance curves

DPCP-LAN Sun Hydraulics 3-way Valve – performance curve (pressure drop vs flow) — performance curve (pressure drop vs flow)

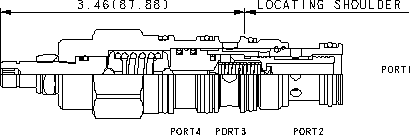

DPCPLAN Sun Hydraulics 3-way Valve – 2D outline drawing — 2D outline drawing

Downloads

Datasheet

Full Datasheet (DPCP-DPCPLAN) (PDF 51 KB)

Technical reference sheets

CAD files

Frequently asked questions

Is DPCPLAN the same as DPCP-LAN?

Yes. Sun Hydraulics writes this part number as DPCPLAN. It is the model DPCP followed by the configuration code; hyphens, slashes and spaces are only dividers, so DPCPLAN, DPCP-LAN, DPCP LAN all refer to the same product.

Do you supply DPCPLAN in the UAE, GCC and India?

Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including DPCPLAN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.

Can I get the datasheet and CAD files?

Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.

Direct acting or pilot operated - what do I use?

Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.

How big is a drop of hydraulic oil?

There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

What parts of the Sun cartridge valve are field serviceable?

Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.

Where would I use a DR__ instead of a DP__?

In many circuits the directional cartridge is set to shift at a low pressure no matter how high the pilot pressure goes. If you use a DP__ , the pilot flow increases to significant amounts. A DR__ however will only consume a small amount of flow. A DP__ is useful when you want to block or open the pilot flow to shift the valve.

I used a DP** in a circuit but it hangs. What happened?

DP**s and DR**s are from the reducer/reliever family and are very capable of modulating. They are not bistable.
