DDDG-XCN – Sun Hydraulics 3-way, 2-position, pilot-to-shift, directional valve
Part number: DDDGXCN · DDDG-XCN · DDDG XCN
3-way, 2-position, pilot-to-shift, directional valve. Cavity T-52A, capacity 20 gpm (80 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
DDDG-XCN overview
DDDGXCN (DDDG-XCN, DDDG XCN) is a Sun Hydraulics Sun Hydraulics 3-way, 2-position, pilot-to-shift, directional valve, rated 20 gpm (80 L/min.) and installed in cavity T-52A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| DDDGXCN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| DDDGXCN/LH | Mild Steel, Zinc-NickelMild Steel, Zinc-Nickel |
| DDDGXCN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-52A |
|---|---|
| Series | 2 |
| Capacity | 20 gpm (80 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Minimum Pilot Pressure Required to Shift Valve | 145 psi (10 bar) |
| Pilot Pressure Required for Full Shift at Rated Flow | 290 psi (20 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi (30 cc/min.@70 bar) |
| Pilot Volume Displacement | .05 in³ (0,82 cc) |
| Valve Hex Size | 1 1/8 in. (28,6 mm) |
| Valve Installation Torque | 45 - 50 lbf ft (61 - 68 Nm) |
| Seal kit - Cartridge | Viton: 990052006 |
How to read DDDGXCN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so DDDGXCN, DDDG-XCN, DDDG XCN are the same part.
| Model | DDDG — Sun Hydraulics 3-way, 2-position, pilot-to-shift, directional valve |
|---|---|
| Control | X — Not Adjustable |
| Spool Configuration | C — Closed Crossover |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- X — Not Adjustable
Spool Configuration options
- C — Closed Crossover
- O — Open Crossover
- R — Restricted Crossover
- Y — All Ports Blocked
- Z — All Ports Open
Seal Material options
- N — Buna-N
- V — Viton
Material/coating options
- /AP — Stainless Steel, Passivated
- /LH — Mild Steel, Zinc-Nickel
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-52A (9)
- U6A Sun Hydraulics Ninety degree Line mount manifoldDDDGXCN-U6A — request assembly
- U6B Sun Hydraulics Ninety degree Line mount manifoldDDDGXCN-U6B — request assembly
- U6C Sun Hydraulics Ninety degree Line mount manifoldDDDGXCN-U6C — request assembly
- U6D Sun Hydraulics Ninety degree Line mount manifoldDDDGXCN-U6D — request assembly
- U6E Sun Hydraulics Ninety degree Line mount manifoldDDDGXCN-U6E — request assembly
- U6F Sun Hydraulics Ninety degree Line mount manifoldDDDGXCN-U6F — request assembly
- U6G Sun Hydraulics Ninety degree Line mount manifoldDDDGXCN-U6G — request assembly
- U6H Sun Hydraulics Ninety degree Line mount manifoldDDDGXCN-U6H — request assembly
- U6J Sun Hydraulics Ninety degree Line mount manifoldDDDGXCN-U6J — request assembly
Technical features
- Leakage listed in technical data is for each path.
- Pressure at port 6 directly opposes port 1.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating-style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

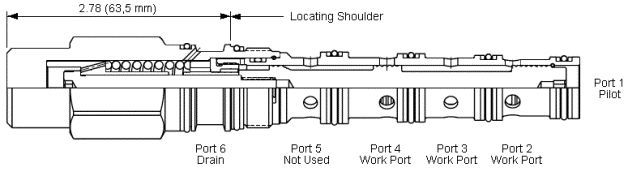

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
- 999-901-334 (PDF 344 KB)
- FloatingStyleScrewInCartridge2 (PDF 1 MB)
- TT_US_Cavity-New (PDF 522 KB)
- TT_US_PODirectional_Aug2015 (PDF 2 MB)
CAD files
Frequently asked questions
Is DDDGXCN the same as DDDG-XCN?
Yes. Sun Hydraulics writes this part number as DDDGXCN. It is the model DDDG followed by the configuration code; hyphens, slashes and spaces are only dividers, so DDDGXCN, DDDG-XCN, DDDG XCN all refer to the same product.
Do you supply DDDGXCN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including DDDGXCN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What parts of the Sun cartridge valve are field serviceable?
