DBAP-FCN – Sun Hydraulics 3-way, air-operated, spool directional valve – pilot capacity
Part number: DBAPFCN · DBAP-FCN · DBAP FCN
3-way, air-operated, spool directional valve – pilot capacity. Cavity T-9A, capacity .25 gpm (1 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
DBAP-FCN overview
DBAPFCN (DBAP-FCN, DBAP FCN) is a Sun Hydraulics Sun Hydraulics 3-way, air-operated, spool directional valve - pilot capacity, rated .25 gpm (1 L/min.) and installed in cavity T-9A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| DBAPFCN/LH | Mild Steel, Zinc-NickelMild Steel, Zinc-Nickel |
|---|---|
| DBAPFCN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-9A |
|---|---|
| Series | P |
| Capacity | .25 gpm (1 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi (0,7 cc/min.@350 bar) |
| Minimum Pilot Pressure to Operate | 20 [+ port 1 press./100] psi (1,5 [+ port 1 press./100] bar) |
| Pilot Control Port | See Control Options |
| Valve Hex Size | 7/8 in. (22,2 mm) |
| Valve Installation Torque | 20 - 25 lbf ft (27 - 33 Nm) |
| Seal kit - Cartridge | Viton: 990509006 |
How to read DBAPFCN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so DBAPFCN, DBAP-FCN, DBAP FCN are the same part.
| Model | DBAP — Sun Hydraulics 3-way, air-operated, spool directional valve - pilot capacity |
|---|---|
| Control | F — External 1/8 NPTF Port |
| Spool Configuration | C — Normally Open 1 to 3, Closed 1 to 2 |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- E — External 4-SAE Port
- F — External 1/8 NPTF Port
- P — External 1/8 BSPP Port
Spool Configuration options
- C — Normally Open 1 to 3, Closed 1 to 2
- H — Normally Open 1 to 2, Closed 1 to 3
Seal Material options
- N — Buna-N
- V — Viton
- E — EPDM
Material/coating options
- /LH — Mild Steel, Zinc-Nickel
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-9A (7)
- U5U Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldDBAPFCN-U5U — request assembly
- WFR Sun Hydraulics Ninety degree Line mount manifoldDBAPFCN-WFR — request assembly
- WFS Sun Hydraulics Ninety degree Line mount manifoldDBAPFCN-WFS — request assembly
- WFT Sun Hydraulics Ninety degree Line mount manifoldDBAPFCN-WFT — request assembly
- WFU Sun Hydraulics Ninety degree Line mount manifoldDBAPFCN-WFU — request assembly
- WFV Sun Hydraulics Ninety degree Line mount manifoldDBAPFCN-WFV — request assembly
- WFW Sun Hydraulics Ninety degree Line mount manifoldDBAPFCN-WFW — request assembly
Technical features
- Different pilot control port options are available. See Option Selection for details.
- Hardened spool and sleeve provide consistent operation, low spool leakage rates and superior wear characteristics.
- The minimum pilot pressure required to operate the valve is determined by the following formula: pilot pressure = 20 psi + pressure @ Port 1 divided by 100. This results in a pilot pressure range of 20 to 70 psi. In metric; pilot pressure = 1,4 bar + pressure @ Port 1 divided by 100. This results in a pilot pressure of 1,4 to 5 bar.
- All ports will accept 5000 psi (350 bar) with the exception of the pilot port which accepts 500 psi (35 bar) max.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

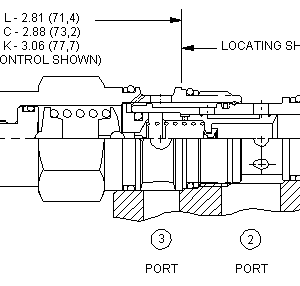

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
CAD files
Frequently asked questions
Is DBAPFCN the same as DBAP-FCN?
Yes. Sun Hydraulics writes this part number as DBAPFCN. It is the model DBAP followed by the configuration code; hyphens, slashes and spaces are only dividers, so DBAPFCN, DBAP-FCN, DBAP FCN all refer to the same product.
Do you supply DBAPFCN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including DBAPFCN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What parts of the Sun cartridge valve are field serviceable?
