AGH – Sun Hydraulics Ninety degree, ports 1 & 2 through Line mount manifold
Roll over image to zoom in
Part number: AGH · AGH/10 · AGH/11 · AGH/S · AGH/S3 · AGH/S4 · AGH/S5
Ninety degree, ports 1 & 2 through Line mount manifold, cavity T-162A, SAE 4 ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
AGH overview
AGH (AGH/10, AGH/11, AGH/S, AGH/S3) is a Sun Hydraulics Sun Hydraulics Ninety degree, ports 1 & 2 through Line mount manifold and installed in cavity T-162A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| AGH | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| AGH/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| AGH/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| AGH/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| AGH/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| AGH/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| AGH/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Body Features | Ninety degree, ports 1 & 2 through |
| Mounting Hole Diameter | .28 in. (7,1 mm) |
| Mounting Hole Quantity | 2 |
| Open Cavities | 1 |
| Cavity | T-162A |
| Port Size | SAE 4 |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read AGH
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so AGH, AGH/10, AGH/11, AGH/S, AGH/S3, AGH/S4, AGH/S5 are the same part.
| Model | AGH — Sun Hydraulics Ninety degree, ports 1 & 2 through Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. AGH/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-162A (35)
- CNACXCN Sun Hydraulics Fixed-orifice, non-pressure compensated, flow control valve with reverse flow checkCNACXCN-AGH — request assembly
- CNBCXCN Sun Hydraulics Free flow nose to side check valve with bypass orificeCNBCXCN-AGH — request assembly
- CSAWBXN Sun Hydraulics Single ball shuttle valve with signal externalCSAWBXN-AGH — request assembly
- CSAYBXN Sun Hydraulics Single ball shuttle valve with signal at port 2CSAYBXN-AGH — request assembly
- CXADXCN Sun Hydraulics Free flow side to nose check valveCXADXCN-AGH — request assembly
- CXBAXCN Sun Hydraulics Free flow nose to side check valveCXBAXCN-AGH — request assembly
- CXBGXAN Sun Hydraulics Flush mount, free flow nose to side check valveCXBGXAN-AGH — request assembly
- DFBDXCN Sun Hydraulics FLeX Series 2-way, 2-stage, solenoid-operated directional poppet valve with reverse flow check – flow 2-1, 3000 psi (210 bar)DFBDXCN-AGH — request assembly
- DFBEXCN Sun Hydraulics FLeX Series 2-way, 2-stage, solenoid-operated directional poppet valve with reverse flow check – flow 2-1, 3000 psi (210 bar)DFBEXCN-AGH — request assembly
- DFBFXCN Sun Hydraulics FLeX Series 2-way, 2-stage, solenoid-operated directional poppet valve with reverse flow check – flow 2-1DFBFXCN-AGH — request assembly
- DFBGXCN Sun Hydraulics FLeX Series 2-way, 2-stage, solenoid-operated directional poppet valve with reverse flow check – flow 2-1DFBGXCN-AGH — request assembly
- DTBFXCN Sun Hydraulics FLeX Series 2-way, direct-acting, solenoid-operated directional blocking poppet valveDTBFXCN-AGH — request assembly
Ports
Modifiers Ports AGH, /10, /11, /S, /S3 All Ports: SAE 4;

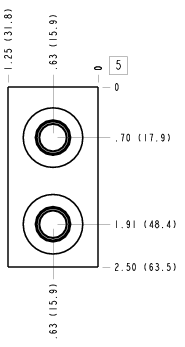

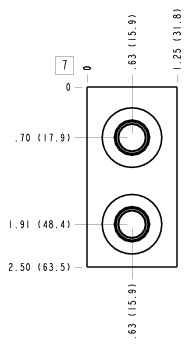

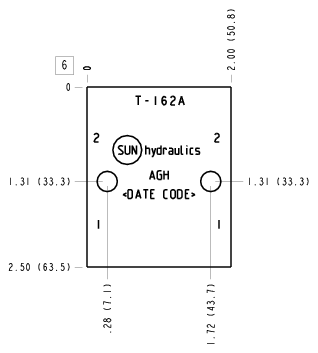

Drawings, symbol & performance curves
Downloads
Datasheet
CAD files (from Sun Hydraulics)
- AGH.prt (PRT)
- AGH.stp (STP)
- AGH_1.dwg (DWG)
- AGH_1.dxf (DXF)
- AGH_2.dwg (DWG)
- AGH_2.dxf (DXF)
- AGH_3.dwg (DWG)
- AGH_3.dxf (DXF)
- AGH_4.dwg (DWG)
- AGH_4.dxf (DXF)
- AGH_5.dwg (DWG)
- AGH_5.dxf (DXF)
- AGH_6.dwg (DWG)
- AGH_6.dxf (DXF)
- AGH_7.dwg (DWG)
- AGH_7.dxf (DXF)
- AGH_8.dwg (DWG)
- AGH_8.dxf (DXF)
- circuit.dwg (DWG)
- circuit.dxf (DXF)
Frequently asked questions
Is AGH the same as AGH/10?
Yes. Sun Hydraulics writes this part number as AGH. It is the model AGH followed by the configuration code; hyphens, slashes and spaces are only dividers, so AGH, AGH/10, AGH/11, AGH/S, AGH/S3, AGH/S4, AGH/S5 all refer to the same product.
Do you supply AGH in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including AGH, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
Manufacturer reference: https://www.sunhydraulics.com/model/AGH
