CXAD-XCN – Sun Hydraulics Free flow side to nose check valve
Part number: CXADXCN · CXAD-XCN · CXAD XCN
Free flow side to nose check valve. Cavity T-162A, capacity 7.5 gpm (30 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
CXAD-XCN overview
CXADXCN (CXAD-XCN, CXAD XCN) is a Sun Hydraulics Sun Hydraulics Free flow side to nose check valve, rated 7.5 gpm (30 L/min.) and installed in cavity T-162A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| CXADXCN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| CXADXCN/LH | Mild Steel, Zinc-NickelMild Steel, Zinc-Nickel |
| CXADXCN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-162A |
|---|---|
| Series | 0 |
| Capacity | 7.5 gpm (30 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min. (0,07 cc/min.) |
| Valve Hex Size | 3/4 in. (19,1 mm) |
| Valve Installation Torque | 20 - 25 lbf ft (27 - 33 Nm) |
| Model Weight | .20 lb (0,10 kg) |
| Seal kit - Cartridge | Viton: 990162006 |
How to read CXADXCN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so CXADXCN, CXAD-XCN, CXAD XCN are the same part.
| Model | CXAD — Sun Hydraulics Free flow side to nose check valve |
|---|---|
| Control | X — Not Adjustable |
| Nominal Control Pressure | C — 30 psi (2 bar) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- X — Not Adjustable
- C — Tamper Resistant - Factory Set
- L — Manual Override
Nominal Control Pressure options
- C — 30 psi (2 bar)
- A — 4 psi (0,3 bar)
- D — 50 psi (3,5 bar)
- E — 75 psi (5 bar)
- Z — 1 psi (0,07 bar)
Seal Material options
- N — Buna-N
- L — Extended Temp. Buna
- V — Viton
- E — EPDM
Material/coating options
- /AP — Stainless Steel, Passivated
- /LH — Mild Steel, Zinc-Nickel
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-162A (56)
- AAA Sun Hydraulics Ninety degree Line mount manifoldCXADXCN-AAA — request assembly
- AAB Sun Hydraulics Ninety degree Line mount manifoldCXADXCN-AAB — request assembly
- AAC Sun Hydraulics Ninety degree Line mount manifoldCXADXCN-AAC — request assembly
- AAH Sun Hydraulics Ninety degree Line mount manifoldCXADXCN-AAH — request assembly
- AAI Sun Hydraulics Ninety degree Line mount manifoldCXADXCN-AAI — request assembly
- AAJ Sun Hydraulics Ninety degree Line mount manifoldCXADXCN-AAJ — request assembly
- AAT Sun Hydraulics Ninety degree Line mount manifoldCXADXCN-AAT — request assembly
- AAU Sun Hydraulics Ninety degree Line mount manifoldCXADXCN-AAU — request assembly
- AAV Sun Hydraulics Ninety degree Line mount manifoldCXADXCN-AAV — request assembly
- ABA Sun Hydraulics ISO 02: P to T Sandwich manifoldCXADXCN-ABA — request assembly
- ABB Sun Hydraulics ISO 02: A to B and B to A Sandwich manifoldCXADXCN-ABB — request assembly
- ABC Sun Hydraulics ISO 02: A and B to T Sandwich manifoldCXADXCN-ABC — request assembly
Technical features
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Only available with 4, 30 and 75 psi (0,3, 2 and 5 bar) cracking pressures.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

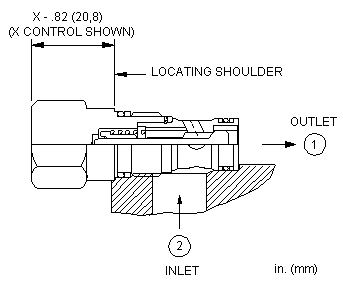

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
- 999-901-334 (PDF 344 KB)
- FloatingStyleScrewInCartridge2 (PDF 1 MB)
- TT_US_Cavity-New (PDF 522 KB)
- TT_US_check-flow1-New (PDF 537 KB)
CAD files
Frequently asked questions
Is CXADXCN the same as CXAD-XCN?
Yes. Sun Hydraulics writes this part number as CXADXCN. It is the model CXAD followed by the configuration code; hyphens, slashes and spaces are only dividers, so CXADXCN, CXAD-XCN, CXAD XCN all refer to the same product.
Do you supply CXADXCN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including CXADXCN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
I need to discharge a large accumulator. How can I increase the capacity of my discharge circuit?
Because of the very high ratio, the COFO has limited capacity. The discharge path is across a .050 inch (1,3 mm) diameter orifice. If you have large accumulators combined with low precharge pressures, this may not discharge the energy quickly enough. Using the COFO XDN cartridge in conjunction with an LODA XDN will provide capacity for larger applications.
What parts of the Sun cartridge valve are field serviceable?
Manufacturer reference: https://www.sunhydraulics.com/model/CXAD
