CSAY-BXN – Sun Hydraulics Single ball shuttle valve with signal at port 2
Part number: CSAYBXN · CSAY-BXN · CSAY BXN
Single ball shuttle valve with signal at port 2. Cavity T-162A, capacity 1.25 gpm (4,7 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
CSAY-BXN overview
CSAYBXN (CSAY-BXN, CSAY BXN) is a Sun Hydraulics Sun Hydraulics Single ball shuttle valve with signal at port 2, rated 1.25 gpm (4,7 L/min.) and installed in cavity T-162A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| CSAYBXN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| CSAYBXN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-162A |
|---|---|
| Series | 0 |
| Capacity | 1.25 gpm (4,7 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min. (0,3 cc/min.) |
| Valve Hex Size | 3/4 in. (19,1 mm) |
| Valve Installation Torque | 20 - 25 lbf ft (27 - 33 Nm) |
| Model Weight | .20 lb (0,10 kg) |
| Seal kit - Cartridge | Viton: 990162006 |
How to read CSAYBXN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so CSAYBXN, CSAY-BXN, CSAY BXN are the same part.
| Model | CSAY — Sun Hydraulics Single ball shuttle valve with signal at port 2 |
|---|---|
| Control | B — External 1/4 BSPP Port |
| Adjustment Range | X — - |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- B — External 1/4 BSPP Port
- E — External 4-SAE Port
Adjustment Range options
- X — -
Seal Material options
- N — Buna-N
- V — Viton
Material/coating options
- /AP — Stainless Steel, Passivated
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-162A (56)
- AAA Sun Hydraulics Ninety degree Line mount manifoldCSAYBXN-AAA — request assembly
- AAB Sun Hydraulics Ninety degree Line mount manifoldCSAYBXN-AAB — request assembly
- AAC Sun Hydraulics Ninety degree Line mount manifoldCSAYBXN-AAC — request assembly
- AAH Sun Hydraulics Ninety degree Line mount manifoldCSAYBXN-AAH — request assembly
- AAI Sun Hydraulics Ninety degree Line mount manifoldCSAYBXN-AAI — request assembly
- AAJ Sun Hydraulics Ninety degree Line mount manifoldCSAYBXN-AAJ — request assembly
- AAT Sun Hydraulics Ninety degree Line mount manifoldCSAYBXN-AAT — request assembly
- AAU Sun Hydraulics Ninety degree Line mount manifoldCSAYBXN-AAU — request assembly
- AAV Sun Hydraulics Ninety degree Line mount manifoldCSAYBXN-AAV — request assembly
- ABA Sun Hydraulics ISO 02: P to T Sandwich manifoldCSAYBXN-ABA — request assembly
- ABB Sun Hydraulics ISO 02: A to B and B to A Sandwich manifoldCSAYBXN-ABB — request assembly
- ABC Sun Hydraulics ISO 02: A and B to T Sandwich manifoldCSAYBXN-ABC — request assembly
Technical features
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

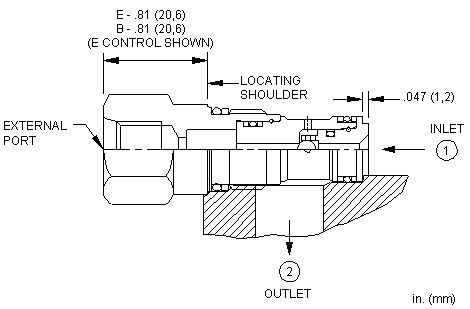

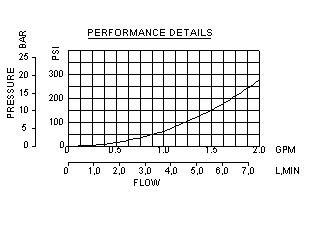

Drawings, symbol & performance curves
Downloads
Technical reference sheets
Frequently asked questions
Is CSAYBXN the same as CSAY-BXN?
Yes. Sun Hydraulics writes this part number as CSAYBXN. It is the model CSAY followed by the configuration code; hyphens, slashes and spaces are only dividers, so CSAYBXN, CSAY-BXN, CSAY BXN all refer to the same product.
Do you supply CSAYBXN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including CSAYBXN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
What parts of the Sun cartridge valve are field serviceable?
