A6I – Sun Hydraulics Common port 1, accepts standard and weatherized coils Line mount manifold
Part number: A6I · A6I/10 · A6I/11 · A6I/S · A6I/S3 · A6I/S4 · A6I/S5
Common port 1, accepts standard and weatherized coils Line mount manifold, cavity T-13A, SAE 6 ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
A6I overview
A6I (A6I/10, A6I/11, A6I/S, A6I/S3) is a Sun Hydraulics Sun Hydraulics Common port 1, accepts standard and weatherized coils Line mount manifold and installed in cavity T-13A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| A6I | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| A6I/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| A6I/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| A6I/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| A6I/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| A6I/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| A6I/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Interface | None |
| Body Features | Common port 1, accepts standard and weatherized coils |
| Mounting Hole Diameter | .28 in. (7,1 mm) |
| Mounting Hole Depth | Through |
| Mounting Hole Quantity | 2 |
| Open Cavities | 2 |
| Cavity | T-13A |
| Port Size | SAE 6 |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read A6I
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so A6I, A6I/10, A6I/11, A6I/S, A6I/S3, A6I/S4, A6I/S5 are the same part.
| Model | A6I — Sun Hydraulics Common port 1, accepts standard and weatherized coils Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. A6I/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-13A (45)
- CDAABBN Sun Hydraulics Back-to-back check/shuttle valve with signal externalCDAABBN-A6I — request assembly
- CDACBBN Sun Hydraulics Back-to-back check/shuttle valve with signal at port 2CDACBBN-A6I — request assembly
- CNCCXCN Sun Hydraulics Fixed-orifice, non-pressure compensated, flow control valve with reverse flow checkCNCCXCN-A6I — request assembly
- CNDCXCN Sun Hydraulics Free flow nose to side check valve with bypass orificeCNDCXCN-A6I — request assembly
- CSAAEXN Sun Hydraulics Single ball shuttle valve with signal externalCSAAEXN-A6I — request assembly
- CSACBXN Sun Hydraulics Single ball shuttle valve with signal at port 2CSACBXN-A6I — request assembly
- CXCDXCN Sun Hydraulics Free flow side to nose check valveCXCDXCN-A6I — request assembly
- CXDAXAN Sun Hydraulics Free flow nose to side check valveCXDAXAN-A6I — request assembly
- DACCMCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valveDACCMCN-A6I — request assembly
- DFCAXCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve – flow 1-2DFCAXCN-A6I — request assembly
- DFCA8DN Sun Hydraulics 2-way, poppet directional valve with integral T-8A control cavity – control 1-2DFCA8DN-A6I — request assembly
- DFCBXCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve – flow 2-1DFCBXCN-A6I — request assembly
Ports
Modifiers Ports A6I, /10, /11, /S, /S3 All Ports: SAE 6;

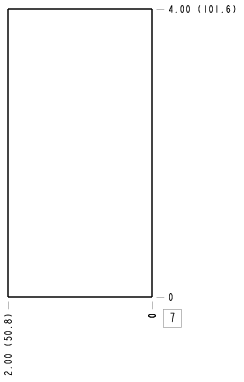

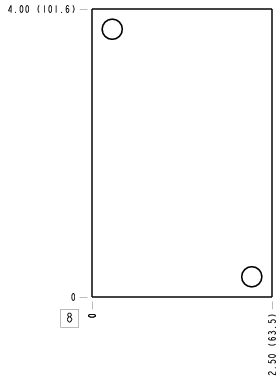

Drawings, symbol & performance curves
Downloads
CAD files (from Sun Hydraulics)
Frequently asked questions
Is A6I the same as A6I/10?
Yes. Sun Hydraulics writes this part number as A6I. It is the model A6I followed by the configuration code; hyphens, slashes and spaces are only dividers, so A6I, A6I/10, A6I/11, A6I/S, A6I/S3, A6I/S4, A6I/S5 all refer to the same product.
