WFS – Sun Hydraulics Ninety degree Line mount manifold
Part number: WFS · WFS/10 · WFS/11 · WFS/S · WFS/S3 · WFS/S4 · WFS/S5
Ninety degree Line mount manifold, cavity T-9A, 3/8″ NPTF ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
WFS overview
WFS (WFS/10, WFS/11, WFS/S, WFS/S3) is a Sun Hydraulics Sun Hydraulics Ninety degree Line mount manifold and installed in cavity T-9A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| WFS | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| WFS/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| WFS/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| WFS/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| WFS/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| WFS/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| WFS/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Interface | None |
| Body Features | Ninety degree |
| Mounting Hole Diameter | .34 in. (8.6 mm) |
| Mounting Hole Depth | Through |
| Mounting Hole Quantity | 2 |
| Open Cavities | 1 |
| Cavity | T-9A |
| Port Size | 3/8" NPTF |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read WFS
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so WFS, WFS/10, WFS/11, WFS/S, WFS/S3, WFS/S4, WFS/S5 are the same part.
| Model | WFS — Sun Hydraulics Ninety degree Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. WFS/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-9A (9)
- DBAFXHN Sun Hydraulics 3-way solenoid-operated directional spool valve – pilot capacity (740 Series)DBAFXHN-WFS — request assembly
- DBAFSHN Sun Hydraulics 3-way, soft shift, solenoid-operated directional spool valve – pilot capacity (740 Series)DBAFSHN-WFS — request assembly
- DBAHBCN Sun Hydraulics 3-way, hydraulically operated, spool directional valve – pilot capacityDBAHBCN-WFS — request assembly
- DBAMLCN Sun Hydraulics 3-way, manually operated, spool directional valve – pilot capacityDBAMLCN-WFS — request assembly
- DBAPFCN Sun Hydraulics 3-way, air-operated, spool directional valve – pilot capacityDBAPFCN-WFS — request assembly
- XACBXXN Sun Hydraulics All ports blocked cavity plugXACBXXN-WFS — request assembly
- XACBEXN Sun Hydraulics Port 1 to external port, ports 2 and 3 blocked cavity plugXACBEXN-WFS — request assembly
- XAOBXXN Sun Hydraulics Port 1 to 2 open, port 3 blocked cavity plugXAOBXXN-WFS — request assembly
- XAOCXXN Sun Hydraulics Port 1 to 3 open, port 2 blocked cavity plugXAOCXXN-WFS — request assembly
Ports
Modifiers Ports WFS, /10, /11 All Ports: 3/8" NPTF;

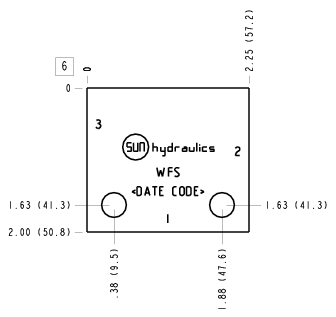

Drawings, symbol & performance curves
Downloads
Datasheet
CAD files (from Sun Hydraulics)
Frequently asked questions
Is WFS the same as WFS/10?
Yes. Sun Hydraulics writes this part number as WFS. It is the model WFS followed by the configuration code; hyphens, slashes and spaces are only dividers, so WFS, WFS/10, WFS/11, WFS/S, WFS/S3, WFS/S4, WFS/S5 all refer to the same product.
Do you supply WFS in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including WFS, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
Manufacturer reference: https://www.sunhydraulics.com/model/WFS
