VPR – Sun Hydraulics 5 Station, Parallel circuit with relief cavity Bar manifold manifold
Part number: VPR · VPR/10 · VPR/11 · VPR/S · VPR/S3 · VPR/S4 · VPR/S5
5 Station, Parallel circuit with relief cavity Bar manifold manifold, cavity T-3A, 1/2″ NPTF ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
VPR overview
VPR (VPR/10, VPR/11, VPR/S, VPR/S3) is a Sun Hydraulics Sun Hydraulics 5 Station, Parallel circuit with relief cavity Bar manifold manifold and installed in cavity T-3A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| VPR | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| VPR/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| VPR/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| VPR/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| VPR/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| VPR/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| VPR/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
Specifications
| Body Type | Bar Manifold |
|---|---|
| Interface | ISO 05 |
| Body Features | 5 Station, Parallel circuit with relief cavity |
| Mounting Hole Thread | .312-18 UNC - 2B in. |
| Mounting Hole Depth | .44 in. (11,1 mm) |
| Mounting Hole Quantity | 4 |
| Open Cavities | 1 |
| Cavity | T-3A |
| Port Size | 1/2" NPTF |
For mounting bracket information, see catalog or drawing 991-021-*** Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read VPR
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so VPR, VPR/10, VPR/11, VPR/S, VPR/S3, VPR/S4, VPR/S5 are the same part.
| Model | VPR — Sun Hydraulics 5 Station, Parallel circuit with relief cavity Bar manifold manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. VPR/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-3A (16)
- NQEBXAN Sun Hydraulics Air bleed and start-up valveNQEBXAN-VPR — request assembly
- RBAALAN Sun Hydraulics Direct-acting relief valve – pilot capacityRBAALAN-VPR — request assembly
- RBABABN Sun Hydraulics Air-controlled, direct-acting relief valve – pilot capacityRBABABN-VPR — request assembly
- RBFALWN Sun Hydraulics Bi-directional direct-acting relief valveRBFALWN-VPR — request assembly
- RDFALAN Sun Hydraulics Direct-acting relief valveRDFALAN-VPR — request assembly
- RDFA3AN Sun Hydraulics Non-adjustable direct-acting relief valveRDFA3AN-VPR — request assembly
- RGFALCN Sun Hydraulics Low-pressure-range, direct-acting relief valveRGFALCN-VPR — request assembly
- RPGCLAN Sun Hydraulics Pilot-operated, balanced piston relief valveRPGCLAN-VPR — request assembly
- RPGC8WN Sun Hydraulics Pilot-operated, balanced piston relief main stage with integral T-8A control cavityRPGC8WN-VPR — request assembly
- RPGDABN Sun Hydraulics Air-controlled, pilot-operated, balanced piston relief valveRPGDABN-VPR — request assembly
- RPGELAN Sun Hydraulics Fast-acting, pilot-operated, balanced piston relief valveRPGELAN-VPR — request assembly
- RPGSLAN Sun Hydraulics Pilot-operated, balanced poppet relief valveRPGSLAN-VPR — request assembly
Ports
Modifiers Ports VPR, /10, /11, /S, /S3 Ports A & B: 1/2" NPTF; Ports P & T: 3/4" NPTF; Gage Port: 1/4" NPTF;

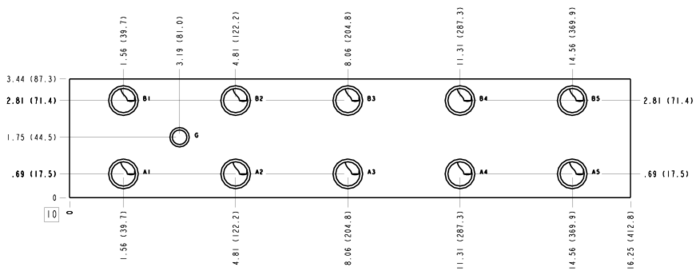

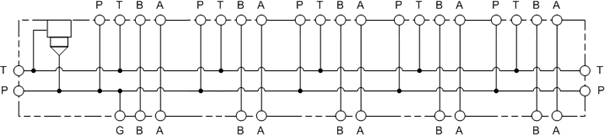

Drawings, symbol & performance curves
Downloads
CAD files (from Sun Hydraulics)
Frequently asked questions
Is VPR the same as VPR/10?
Yes. Sun Hydraulics writes this part number as VPR. It is the model VPR followed by the configuration code; hyphens, slashes and spaces are only dividers, so VPR, VPR/10, VPR/11, VPR/S, VPR/S3, VPR/S4, VPR/S5 all refer to the same product.
Do you supply VPR in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including VPR, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
Manufacturer reference: https://www.sunhydraulics.com/model/VPR
