NQEB-XAN – Sun Hydraulics Air bleed and start-up valve

Q: Is NQEBXAN the same as NQEB-XAN?

Yes. Sun Hydraulics writes this part number as NQEBXAN. It is the model NQEB followed by the configuration code; hyphens, slashes and spaces are only dividers, so NQEBXAN, NQEB-XAN, NQEB XAN all refer to the same product.

Brand: Sun Hydraulics
SKU: NQEB

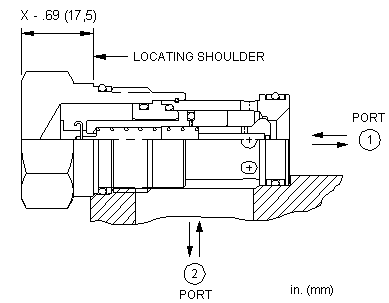

NQEB-XAN Sun Hydraulics Air bleed and start-up Valve – installation dimensions drawing, cavity T-3A

NQEB-XAN Sun Hydraulics Air bleed and start-up Valve – hydraulic schematic symbol

Roll over image to zoom in

Part number: NQEBXAN · NQEB-XAN · NQEB XAN

Brand Sun HydraulicsType Air bleed and start-upCapacity 4 - 50 gpm (15 - 200 L/min.)Cavity T-3A

Air bleed and start-up valve. Cavity T-3A, capacity 4 – 50 gpm (15 – 200 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.

SKU: NQEB Category: Air bleed and start-up Brand: Sun Hydraulics

NQEB-XAN overview

NQEBXAN (NQEB-XAN, NQEB XAN) is a Sun Hydraulics Sun Hydraulics Air bleed and start-up valve, rated 4 - 50 gpm (15 - 200 L/min.) and installed in cavity T-3A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.

Ordering codes

Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.

NQEBXAN/AP	Stainless Steel, PassivatedStainless Steel, Passivated
NQEBXAN/LH	Mild Steel, Zinc-NickelMild Steel, Zinc-Nickel
NQEBXAN	Standard Material/CoatingStandard Material/Coating

Specifications

Cavity	T-3A
Series	2
Capacity	4 - 50 gpm (15 - 200 L/min.)
Maximum Operating Pressure	5000 psi (350 bar)
Valve Hex Size	1 1/8 in. (28,6 mm)
Valve Installation Torque	45 - 50 lbf ft (61 - 68 Nm)
Model Weight	.40 lb (0,20 kg)
Seal kit - Cartridge	Viton: 990203006

How to read NQEBXAN

Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so NQEBXAN, NQEB-XAN, NQEB XAN are the same part.

Model	NQEB — Sun Hydraulics Air bleed and start-up valve
Control	X — Not Adjustable
Adjustment Range	A — -
Seal Material	N — Buna-N
Material / coating	Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish.

Control options

X — Not Adjustable

Adjustment Range options

A — -

Seal Material options

N — Buna-N
V — Viton
E — EPDM

Material/coating options

/AP — Stainless Steel, Passivated
/LH — Mild Steel, Zinc-Nickel
— Standard Material/Coating

Manifold & standard assemblies

Sun manifolds for cavity T-3A (238)

View all 238 →

Technical features

Air-bleed and start-up valves require a minimum of 4 gpm (15 L/min.) flow rate and 80 psi (5,5 bar) system pressure.
The valve will re-open when system pressure falls below 25 psi (1,7 bar)
After air has been purged, closing times vary from approximately 12 seconds at 4 gpm (15 L/min.) to 0.5 seconds at 50 gpm 200 L/min.).
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Drawings, symbol & performance curves

NQEB-XAN Sun Hydraulics Air bleed and start-up Valve – performance curve (pressure drop vs flow) — performance curve (pressure drop vs flow)

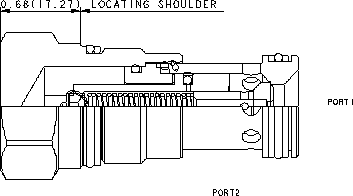

NQEBXAN Sun Hydraulics Air bleed and start-up Valve – 2D outline drawing — 2D outline drawing

Downloads

Datasheet

Full Datasheet (NQEB-NQEBXAN) (PDF 49 KB)

Technical reference sheets

CAD files

Frequently asked questions

Is NQEBXAN the same as NQEB-XAN?

Yes. Sun Hydraulics writes this part number as NQEBXAN. It is the model NQEB followed by the configuration code; hyphens, slashes and spaces are only dividers, so NQEBXAN, NQEB-XAN, NQEB XAN all refer to the same product.

Do you supply NQEBXAN in the UAE, GCC and India?

Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including NQEBXAN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.

Can I get the datasheet and CAD files?

Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.

How big is a drop of hydraulic oil?

There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

What parts of the Sun cartridge valve are field serviceable?

Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.

Manufacturer reference: https://www.sunhydraulics.com/model/NQEB
