VAL – Sun Hydraulics Cross pilot with independent port 4s Line mount manifold
Roll over image to zoom in
Part number: VAL · VAL/10 · VAL/11 · VAL/S · VAL/S3 · VAL/S4 · VAL/S5
Cross pilot with independent port 4s Line mount manifold, cavity T-23A, SAE 12 ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
VAL overview
VAL (VAL/10, VAL/11, VAL/S, VAL/S3) is a Sun Hydraulics Sun Hydraulics Cross pilot with independent port 4s Line mount manifold and installed in cavity T-23A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| VAL | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| VAL/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| VAL/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| VAL/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| VAL/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| VAL/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| VAL/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Interface | None |
| Body Features | Cross pilot with independent port 4s |
| Mounting Hole Diameter | .41 in. (10,4 mm) |
| Mounting Hole Depth | Through |
| Mounting Hole Quantity | 2 |
| Open Cavities | 2 |
| Cavity | T-23A |
| Port Size | SAE 12 |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read VAL
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so VAL, VAL/10, VAL/11, VAL/S, VAL/S3, VAL/S4, VAL/S5 are the same part.
| Model | VAL — Sun Hydraulics Cross pilot with independent port 4s Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. VAL/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-23A (35)
- CVGVXCN Sun Hydraulics Vented pilot-to-open check valveCVGVXCN-VAL — request assembly
- CWGALHN Sun Hydraulics 3:1 pilot ratio, vented counterbalance valveCWGALHN-VAL — request assembly
- CWGGLGN Sun Hydraulics 5:1 pilot ratio, vented counterbalance valveCWGGLGN-VAL — request assembly
- CWGKLHN Sun Hydraulics 1:1 pilot ratio, vented counterbalance valveCWGKLHN-VAL — request assembly
- CWGLLGN Sun Hydraulics 2:1 pilot ratio, vented counterbalance valveCWGLLGN-VAL — request assembly
- DKHPLAN Sun Hydraulics Normally closed, balanced poppet, logic element – pressure adjustableDKHPLAN-VAL — request assembly
- DKHRXHN Sun Hydraulics Normally closed, balanced poppet, logic element – vent-to-openDKHRXHN-VAL — request assembly
- DKHR8HN Sun Hydraulics Normally closed, balanced poppet, logic element with integral T-8A control cavity – vent-to-openDKHR8HN-VAL — request assembly
- DKHSXHN Sun Hydraulics Normally closed, balanced poppet, logic element – pilot-to-openDKHSXHN-VAL — request assembly
- DOHPLAN Sun Hydraulics Normally open, balanced poppet, logic element – pressure adjustableDOHPLAN-VAL — request assembly
- DOHRXHN Sun Hydraulics Normally open, balanced poppet, logic element – vent-to-closeDOHRXHN-VAL — request assembly
- DOHR8HN Sun Hydraulics Normally open, balanced poppet, logic element with integral T-8A control cavity – vent-to-closeDOHR8HN-VAL — request assembly
Ports
Modifiers Ports VAL, /10, /11 Ports 1A, 1B, 2A, 2B: SAE 12; Ports 4A & 4B: SAE 6;

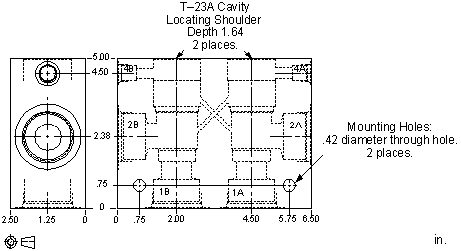

Drawings, symbol & performance curves
Frequently asked questions
Is VAL the same as VAL/10?
Yes. Sun Hydraulics writes this part number as VAL. It is the model VAL followed by the configuration code; hyphens, slashes and spaces are only dividers, so VAL, VAL/10, VAL/11, VAL/S, VAL/S3, VAL/S4, VAL/S5 all refer to the same product.
Do you supply VAL in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including VAL, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
Manufacturer reference: https://www.sunhydraulics.com/model/VAL
