DKHP-LAN – Sun Hydraulics Normally closed, balanced poppet, logic element – pressure adjustable
Roll over image to zoom in
Part number: DKHPLAN · DKHP-LAN · DKHP LAN
Normally closed, balanced poppet, logic element – pressure adjustable. Cavity T-23A, capacity 60 gpm (240 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
DKHP-LAN overview
DKHPLAN (DKHP-LAN, DKHP LAN) is a Sun Hydraulics Sun Hydraulics Normally closed, balanced poppet, logic element - pressure adjustable, rated 60 gpm (240 L/min.) and installed in cavity T-23A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| DKHPLAN | Buna-N sealsBuna-N |
|---|---|
| DKHPLAV | Viton sealsViton |
Specifications
| Cavity | T-23A |
|---|---|
| Series | 3 |
| Capacity | 60 gpm (240 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Minimum Pilot Pressure Required to Shift Valve | 300 psi (20 bar) |
| Control Pilot Flow | See Performance Data |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi (0,7 cc/min.@350 bar) |
| Valve Hex Size | 1 1/4 in. (31,8 mm) |
| Valve Installation Torque | 150 - 160 lbf ft (203 - 217 Nm) |
| Adjustment Screw Internal Hex Size | 5/32 in. (4 mm) |
| Locknut Hex Size | 9/16 in. (15 mm) |
| Locknut Torque | 80 - 90 lbf in. (9 - 10 Nm) |
| Seal kit - Cartridge | Viton: 990023006 |
How to read DKHPLAN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so DKHPLAN, DKHP-LAN, DKHP LAN are the same part.
| Model | DKHP — Sun Hydraulics Normally closed, balanced poppet, logic element - pressure adjustable |
|---|---|
| Control | L — Standard Screw Adjustment |
| Adjustment Range | A — 200 - 3000 psi (14 - 210 bar), 1000 psi (70 bar) Standard Setting |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- C — Tamper Resistant - Factory Set
- K — Handknob
- L — Standard Screw Adjustment
Adjustment Range options
- A — 200 - 3000 psi (14 - 210 bar), 1000 psi (70 bar) Standard Setting
- B — 200 - 1500 psi (14 - 105 bar), 1000 psi (70 bar) Standard Setting
- D — 200 - 800 psi (14 - 55 bar), 400 psi (28 bar) Standard Setting
- W — 200 - 4500 psi (14 - 315 bar), 1000 psi (70 bar) Standard Setting
Seal Material options
- N — Buna-N
- V — Viton
Manifold & standard assemblies
Sun manifolds for cavity T-23A (73)
- P44 Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDKHPLAN-P44 — request assembly
- P45 Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDKHPLAN-P45 — request assembly
- P4D Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDKHPLAN-P4D — request assembly
- P4E Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDKHPLAN-P4E — request assembly
- P4F Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDKHPLAN-P4F — request assembly
- P4L Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDKHPLAN-P4L — request assembly
- P4M Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDKHPLAN-P4M — request assembly
- P4N Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDKHPLAN-P4N — request assembly
- P4P Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDKHPLAN-P4P — request assembly
- P4Q Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDKHPLAN-P4Q — request assembly
- P4W Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDKHPLAN-P4W — request assembly
- P4X Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDKHPLAN-P4X — request assembly
Technical features
- Unique balanced construction provides predictable switching with 5000 psi (350 bar) at both port 1 and port 2. When the remote pressure signal at port 3 exceeds the internal valve setting, the valve shifts to the open position.
- Any backpressure at the drain port is directly additive to the valve setting.
- Valve will reseat when the pilot pressure falls to 85% of the cracking value.
- Port 1 and port 2 are fully sealed from port 3 and port 4. Ports 3 and 4 are positively sealed.
- Leakage rate between port 1 and port 2 is very low, typically less than 10 drops/min. at 5000 psi (0,7 cc/min at 350 bar).
- All ports will accept 5000 psi (350 bar).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

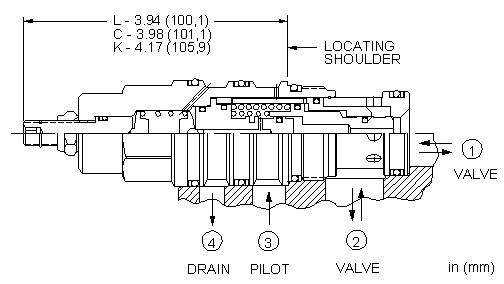

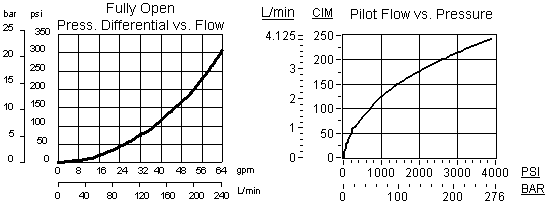

Drawings, symbol & performance curves
Downloads
Technical reference sheets
Frequently asked questions
Is DKHPLAN the same as DKHP-LAN?
Yes. Sun Hydraulics writes this part number as DKHPLAN. It is the model DKHP followed by the configuration code; hyphens, slashes and spaces are only dividers, so DKHPLAN, DKHP-LAN, DKHP LAN all refer to the same product.
Do you supply DKHPLAN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including DKHPLAN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
I need to discharge a large accumulator. How can I increase the capacity of my discharge circuit?
Because of the very high ratio, the COFO has limited capacity. The discharge path is across a .050 inch (1,3 mm) diameter orifice. If you have large accumulators combined with low precharge pressures, this may not discharge the energy quickly enough. Using the COFO XDN cartridge in conjunction with an LODA XDN will provide capacity for larger applications.
What parts of the Sun cartridge valve are field serviceable?
Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
